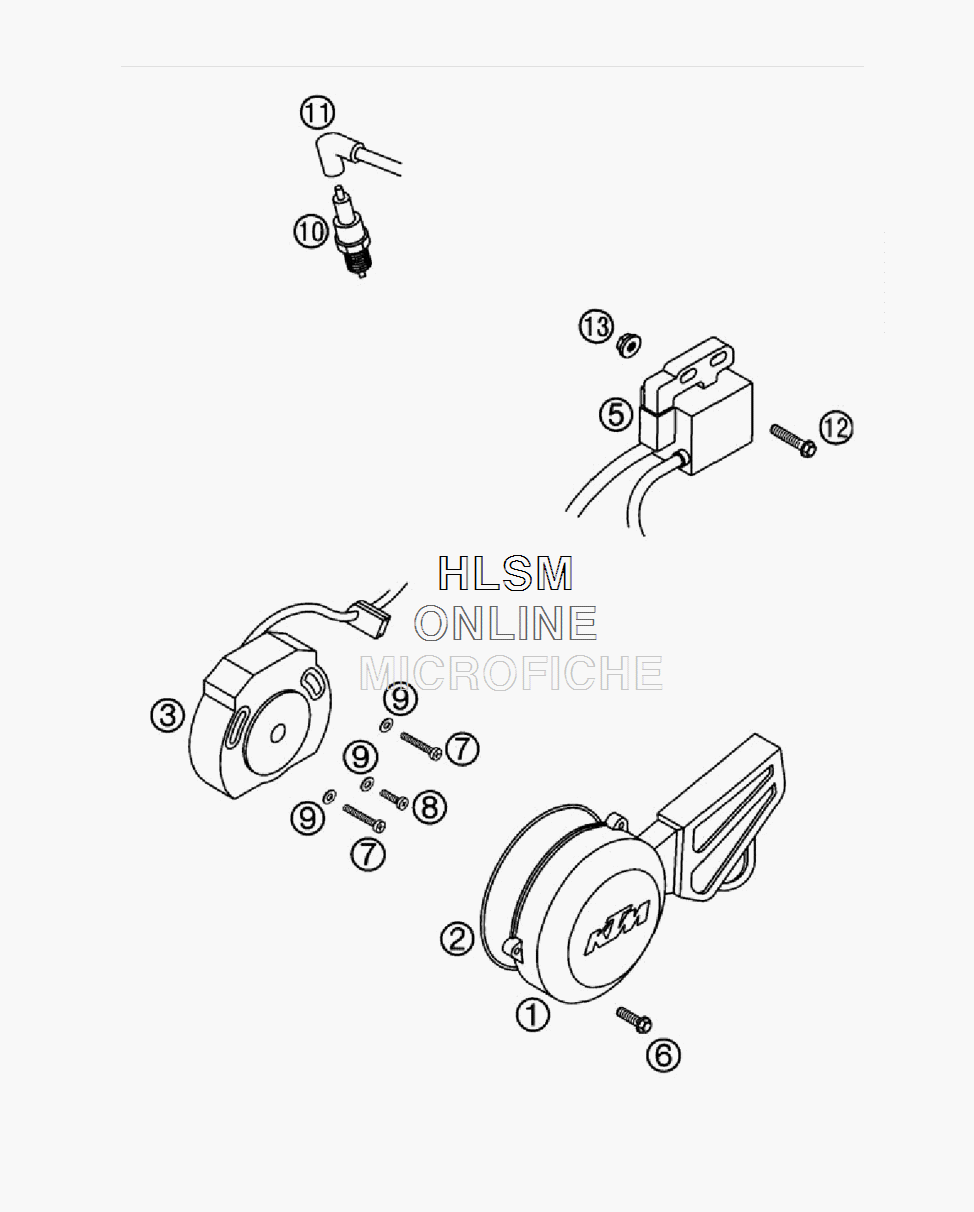

IGNITION SYSTEM для Ktm 65 SX - 2002 года выпуска
-
№АртикулНазвание
-
146030002000 IGNITION COVER SILVERIGNITION COVER SILVER
-
20770020480 O-RING 120,37X1,78 NBR70O-RING 120,37X1,78 NBR70
-
346039002000 IGNITION SYSTEMIGNITION SYSTEM
-
546039006000 IGNITION COIL CPL.IGNITION COIL CPL.
-
60015060203 HH COLLAR SCREW M 6X20 WS=8HH COLLAR SCREW M 6X20 WS=8
-
70985040353 FLAT HEAD SCREW DIN7985-M 4X35FLAT HEAD SCREW DIN7985-M 4X35
-
80985040203 FLAT HEAD SCREW DIN7985-M 4X20FLAT HEAD SCREW DIN7985-M 4X20
-
90125040003 WASHER DIN0125-A 4,0WASHER DIN0125-A 4,0
-
1054331093410 SPARK PLUG NGK BR8ECMSPARK PLUG NGK BR8ECM
-
1154531010000 SPARK PLUG CAP LB05EMH NGKSPARK PLUG CAP LB05EMH NGK
-
120015060303 HH COLLAR SCREW M 6X30 WS=8HH COLLAR SCREW M 6X30 WS=8
-
1356509064100 SELF LOCKING NUT M6 10.9SELF LOCKING NUT M6 10.9
Все узлы модели:
- AIR FILTER BOX
- BRAKE CALIPER FRONT
- BRAKE CALIPER REAR
- CARBURETOR MIKUNI VM24
- CLUTCH
- COOLING SYSTEM
- CRANKSHAFT W/ PISTON
- CYLINDER
- DECAL
- ENGINE CASE
- EXHAUST SYSTEM
- FORK LEGS
- FRAME - SUB FRAME
- FRONT FORK
- FRONT WHEEL
- HAND BRAKE CYLINDER
- HANDLEBAR W/ CONTROLS
- • IGNITION SYSTEM
- KICKSTARTER
- MASK W/ FENDERS
- REAR BRAKE CONTROL
- REAR WHEEL
- SHIFTING MECHANISM
- SHOCK ABSORBER DISASSEMBLED
- SPECIAL TOOLS
- SWINGARM W/ SHOCK ABSORBER
- TANK - SEAT - COVER
- TRANSMISSION
