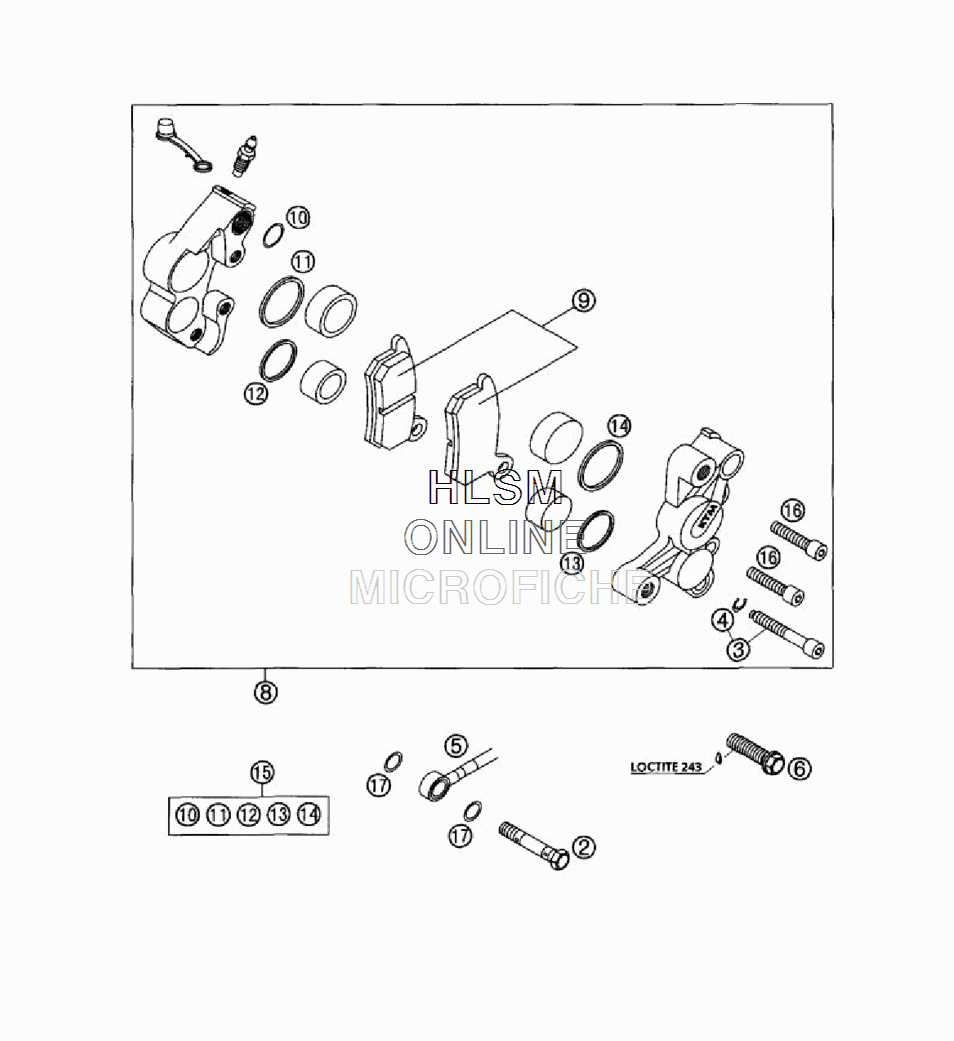

BRAKE CALIPER FRONT для Ktm 65 SX - 2002 года выпуска

  • №
    Артикул
    Название
  • 2
    46113025000 HOLLOW SCREW M10X43
    HOLLOW SCREW M10X43
  • 3
    46113125000 AH SCREW + CIRCLIP
    AH SCREW + CIRCLIP
  • 4
    0799040000 TAB WASHER DIN6799-RS 4,0
    TAB WASHER DIN6799-RS 4,0
  • 5
    46113010000 BRAKE HOSE FRONT
    BRAKE HOSE FRONT
  • 6
    0015080303 HH COLLAR SCREW M8X30 WS=10
    HH COLLAR SCREW M8X30 WS=10
  • 8
    46113015000 BRAKE CALIPER FRONT
    BRAKE CALIPER FRONT
  • 9
    46113030000 BRAKE PAD SET
    BRAKE PAD SET
  • 15
    46113019000 REP. KIT SEAL RING
    REP. KIT SEAL RING
  • 16
    0912060283 AH SCREW DIN0912-M 6X28
    AH SCREW DIN0912-M 6X28
  • 17
    42013026000 CU-SEAL RING DIN7603-10X16X1,5
    CU-SEAL RING DIN7603-10X16X1,5
