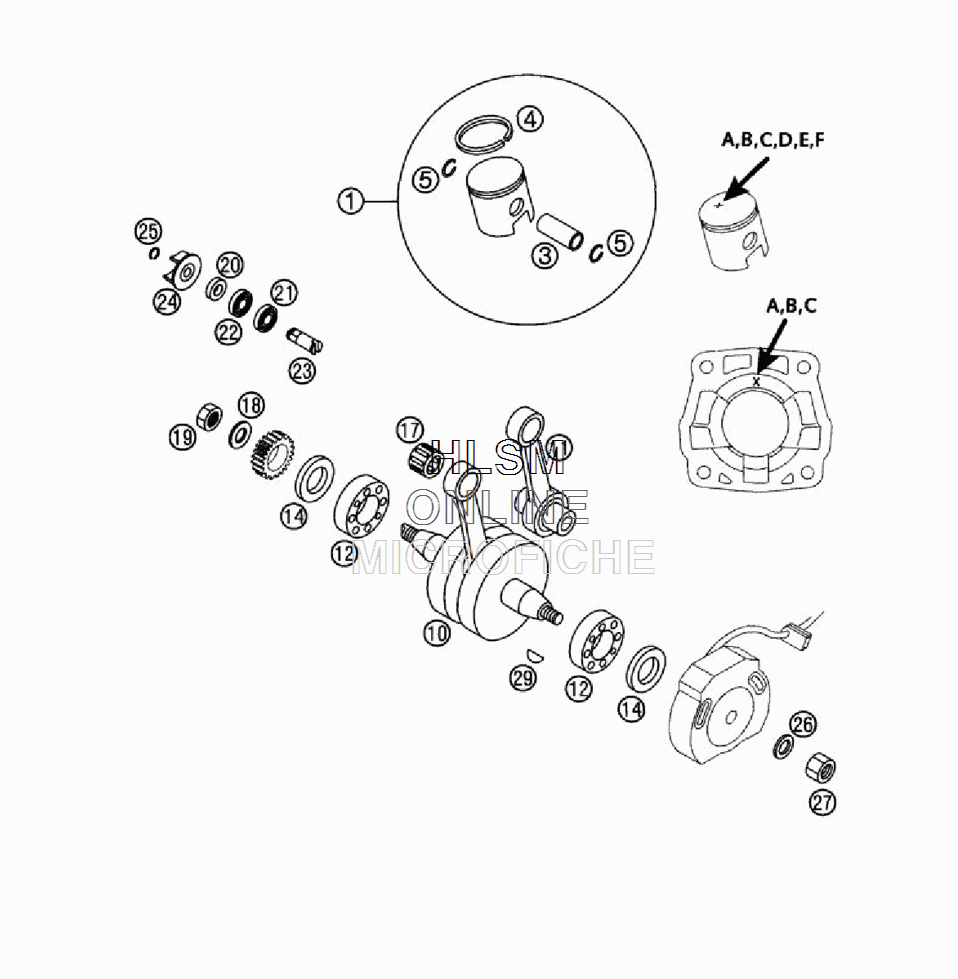

CRANKSHAFT W/ PISTON для Ktm 65 SX - 2002 года выпуска`

№

Артикул

Название
1

46030007500A PISTON CPL. 45MM "A"

PISTON CPL. 45MM "A"

0 ₽
1

46030007500B PISTON CPL. 45MM "B"

PISTON CPL. 45MM "B"

0 ₽
1

46030007500C PISTON CPL. 45MM "C"

PISTON CPL. 45MM "C"

0 ₽
1

46030007500D PISTON CPL. 45MM "D"

PISTON CPL. 45MM "D"

0 ₽
1

46030007500E PISTON CPL. 45MM "E"

PISTON CPL. 45MM "E"

0 ₽
1

46030007500F PISTON CPL. 45MM "F"

PISTON CPL. 45MM "F"

0 ₽
3

46030033000 PISTON PIN 12X38

PISTON PIN 12X38

2 390 ₽
4

46030030500 PISTON RING 45MM 65CCM

PISTON RING 45MM 65CCM

12 850 ₽
5

46030074000 CIRCLIP 12X1

CIRCLIP 12X1

0 ₽
10

46030018100 CRANKSHAFT CPL. STROKE 40MM

CRANKSHAFT CPL. STROKE 40MM

116 580 ₽
11

46030015000 CONN. ROD REPAIR SET 60/65 CCM

CONN. ROD REPAIR SET 60/65 CCM

71 870 ₽
12

46030082200 GROOVED BALL BEAR.20X52X15 NTN

GROOVED BALL BEAR.20X52X15 NTN

6 110 ₽
14

46030077000 SHAFT SEAL RING 20X35X6

SHAFT SEAL RING 20X35X6

0 ₽
17

46030034000 NEEDLE BEAR.PISTONPIN 12X15X17

NEEDLE BEAR.PISTONPIN 12X15X17

8 820 ₽
18

46030078100 LOCKING WASHER 14X20X1

LOCKING WASHER 14X20X1

740 ₽
19

46030029100 HH-NUT M14X1,25X5

HH-NUT M14X1,25X5

2 600 ₽
20

46035056100 SHAFT SEAL RING 10X18X4

SHAFT SEAL RING 10X18X4

2 800 ₽
21

46035057000 WATER PUMP BEARING 10X19X5

WATER PUMP BEARING 10X19X5

7 130 ₽
22

46035058000 WA.PU.BEAR. 10X19X5 DOUBLELIP

WA.PU.BEAR. 10X19X5 DOUBLELIP

8 000 ₽
23

46035054000 WATER PUMP SHAFT

WATER PUMP SHAFT

9 230 ₽
24

46035055100 WATER PUMP WHEEL

WATER PUMP WHEEL

2 980 ₽
25

0471090010 CIRCLIP DIN0471- 9X1

CIRCLIP DIN0471- 9X1

290 ₽
26

0127100003 SPRING RING DIN0127-B10

SPRING RING DIN0127-B10

80 ₽
27

46030028000 HH NUT M10X1,25X17 WS=15

HH NUT M10X1,25X17 WS=15

3 510 ₽
29

46030075000 WOODRUFF KEY 3X3,7X9,7

WOODRUFF KEY 3X3,7X9,7

560 ₽
