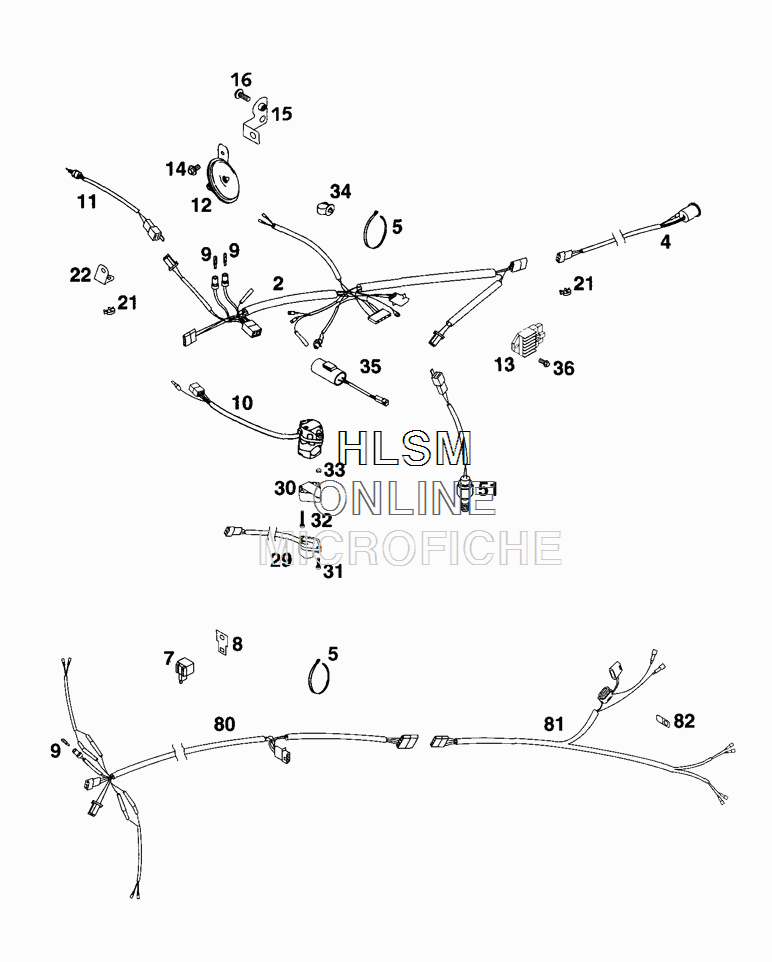

WIRING HARNESS SEPERATE LUBRICATION для Ktm 200 MXC - 2001 года выпуска
-
№АртикулНазвание
-
250311075600 WIRING HARNESSWIRING HARNESS
-
450311076000 WIRING HARNESS REARWIRING HARNESS REAR
-
544011076200 CABLE TIE 200MMCABLE TIE 200MM
-
544011076305 CABLE TIE 290MMCABLE TIE 290MM
-
744611207200 FLASHER UNIT SUMITOMO ADV.FLASHER UNIT SUMITOMO ADV.
-
858211031100 BRACKET FOR FLASHER RELAISEBRACKET FOR FLASHER RELAISE
-
949111425000 BULB 12V 1,2W (W2X4,6D)BULB 12V 1,2W (W2X4,6D)
-
1050311070000 H.LIGHT SWITCH CEV 2/4TAKT (SYMBOLS WHITE)H.LIGHT SWITCH CEV 2/4TAKT (SYMBOLS WHITE)
-
1150311050000 BRAKE LIGHT SWITCH FRONTBRAKE LIGHT SWITCH FRONT
-
1254511060100 DC HORN 12V NIKKODC HORN 12V NIKKO
-
1350311034000 VOLTAGE REGULA. 12VVOLTAGE REGULA. 12V
-
140014060103 HH COLLAR SCREW M 6X10 WS=8HH COLLAR SCREW M 6X10 WS=8
-
1559011061000 BRACKET FOR NIKKO HORN 2001BRACKET FOR NIKKO HORN 2001
-
160014060153 HH COLLAR SCREW M 6X15 WS=8HH COLLAR SCREW M 6X15 WS=8
-
2157013072000 WIRING HOLDER 12MM 0210WIRING HOLDER 12MM 0210
-
2157013072100 WIRING HOLDER 16MMWIRING HOLDER 16MM
-
2254611090000 RETAINING PLATE FOR BATTERYRETAINING PLATE FOR BATTERY
-
2950311029000 FLASHER SWITCH CEVFLASHER SWITCH CEV
-
3013011070060 ADAPTER FOR FLASHER SWITCHADAPTER FOR FLASHER SWITCH
-
310985040163 FLAT HEAD SCREW DIN7985-M 4X16FLAT HEAD SCREW DIN7985-M 4X16
-
320084040223 CYL.HEAD SCREW DIN0084-M 4X22ACYL.HEAD SCREW DIN0084-M 4X22A
-
330934040003 HEXAGON NUT DIN0934-M 4HEXAGON NUT DIN0934-M 4
-
3458111076000 CABLE SUPPORT KHS NR.150-47610CABLE SUPPORT KHS NR.150-47610
-
3550311035000 CONDENSATOR 2200MF ADP-48CONDENSATOR 2200MF ADP-48
-
360015060123 HH COLLAR SCREW M 6X12 WS=8HH COLLAR SCREW M 6X12 WS=8
-
5150311051100 BRAKE LIGHT SWITCH REARBRAKE LIGHT SWITCH REAR
-
8050311080100 FLAS.WIRINGHARN. FRONTFLAS.WIRINGHARN. FRONT
-
8150311081000 FLAS.WIRINGHARN. REARFLAS.WIRINGHARN. REAR
-
8250031003000 RETAINING PLATERETAINING PLATE
