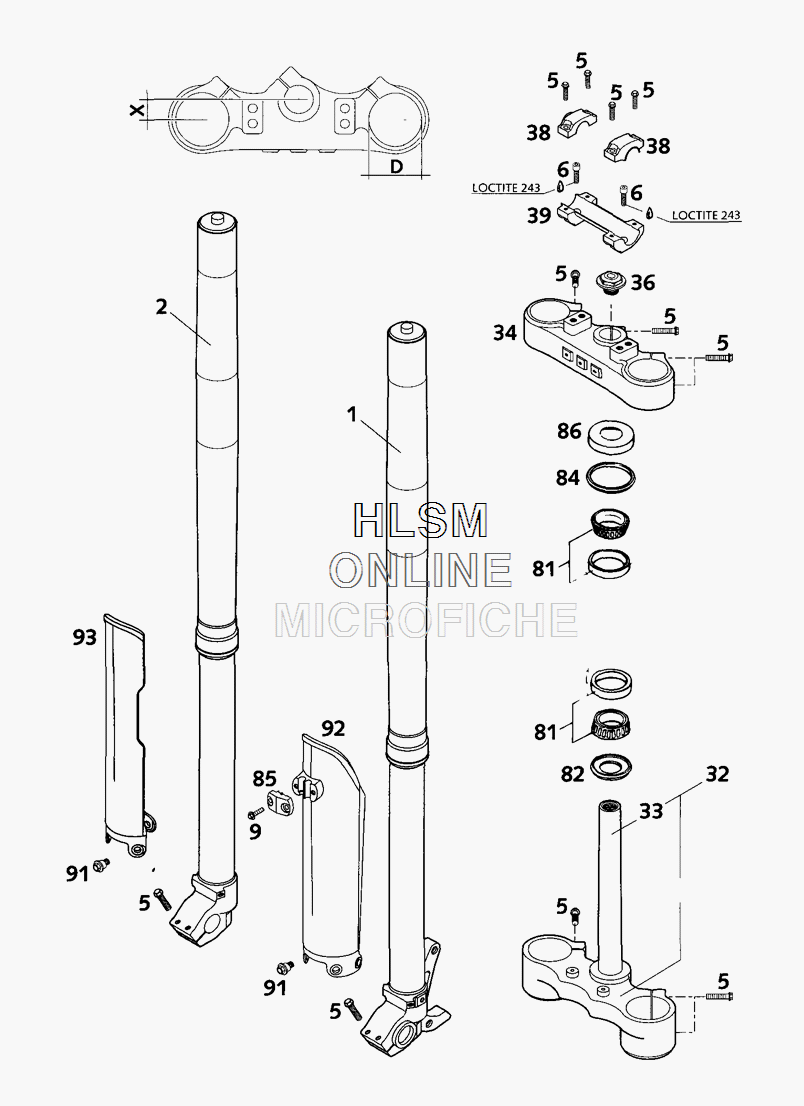

FRONT FORK для Ktm 200 MXC - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    0518V702LS FORK LEG L/S WP43
    FORK LEG L/S WP43
  • 2
    0518V702RS FORK LEG R/S WP43
    FORK LEG R/S WP43
  • 5
    0015080303 HH COLLAR SCREW M 8X30 WS=10
    HH COLLAR SCREW M 8X30 WS=10
  • 6
    0912100250 AH SCREW DIN0912-M10X25 W.LOCK
    AH SCREW DIN0912-M10X25 W.LOCK
  • 9
    0017060203 SPECIAL SCREW T60 6X20
    SPECIAL SCREW T60 6X20
  • 32
    59001132020 BOT.TRIPLE CLAMP X=20MM/D=57MM
    BOT.TRIPLE CLAMP X=20MM/D=57MM
  • 33
    50101033100 FORK TUBE L=244
    FORK TUBE L=244
  • 34
    59001034020 TOP TRIPLE CLAMP X=20MM/D=54MM
    TOP TRIPLE CLAMP X=20MM/D=54MM
  • 36
    50301036000 STEER.HEAD SCREW M20X1,5 SW=27
    STEER.HEAD SCREW M20X1,5 SW=27
  • 38
    50301038000 HANDLEBAR CLAMP D=22MM
    HANDLEBAR CLAMP D=22MM
  • 39
    59001039000 HANDLEBAR SUPPORT 22M 2T
    HANDLEBAR SUPPORT 22M 2T
  • 81
    54201081000 TAPERED ROLLER BEARING
    TAPERED ROLLER BEARING
  • 82
    54601084100 O-RING SUPPORT W. SEALING LIP
    O-RING SUPPORT W. SEALING LIP
  • 84
    54601184000 STEARING HEAD GASKET TOP
    STEARING HEAD GASKET TOP
  • 85
    59001085100 CLAMP F.SPEED.CABLE D=6MM 2001 (BLACK)
    CLAMP F.SPEED.CABLE D=6MM 2001 (BLACK)
  • 86
    54201086000 STEERING HEAD COVER
    STEERING HEAD COVER
  • 91
    59001092050 SPECIAL SCREW M6X12,5 SW=8
    SPECIAL SCREW M6X12,5 SW=8
  • 92
    59001092100 FORK PROTECTION L/S BLACK
    FORK PROTECTION L/S BLACK
  • 93
    59001093100 FORK PROTECTION R/S BLACK
    FORK PROTECTION R/S BLACK
