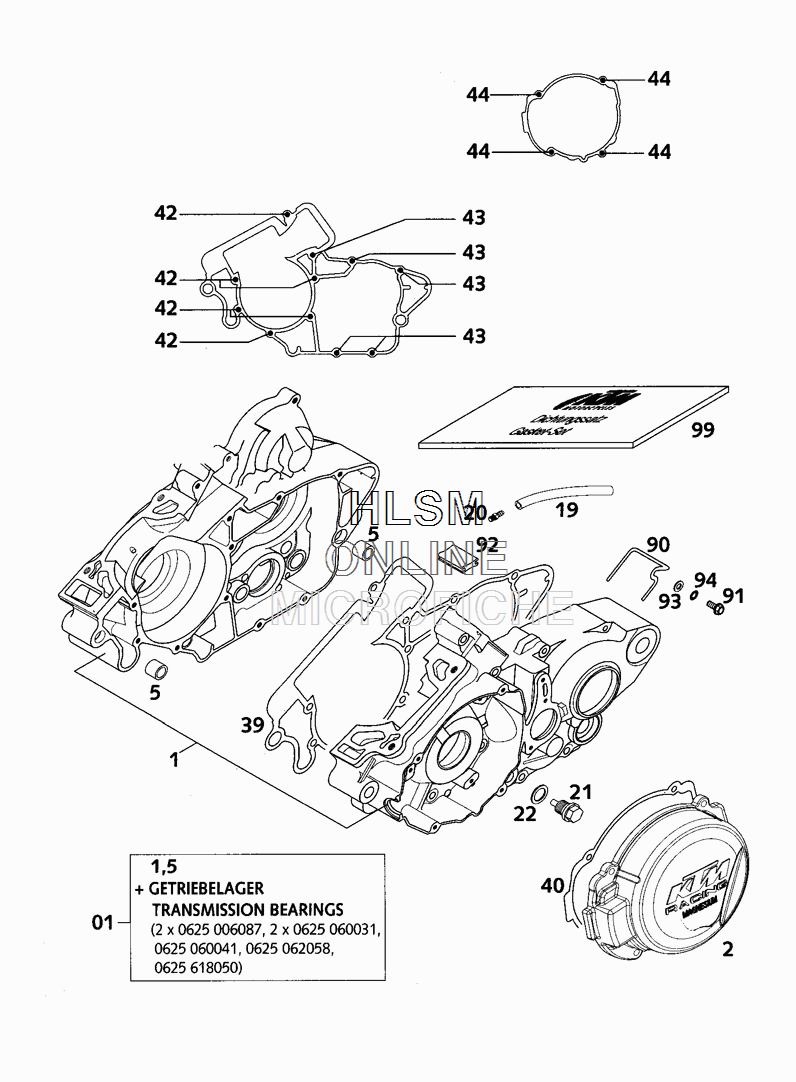

ENGINE CASE для Ktm 200 MXC - 2001 года выпуска

  • №
    Артикул
    Название
  • 01
    52330000044 ENGINE CASE CPL.W.TRAN.BEAR
    ENGINE CASE CPL.W.TRAN.BEAR
  • 2
    5033000220098 IGNIT.COVER MAG.
    IGNIT.COVER MAG.
  • 5
    54630027000 DOWEL BUSHING 13,8X11X12
    DOWEL BUSHING 13,8X11X12
  • 19
    55007016001 PVC-HOSE 7X10 PER METER
    PVC-HOSE 7X10 PER METER
  • 20
    58336020090 VACUUM CONNECTION M6X1
    VACUUM CONNECTION M6X1
  • 21
    58030021000 OILDRAIN PLUG W.MAGNET M12X1,5
    OILDRAIN PLUG W.MAGNET M12X1,5
  • 22
    58038022000 CU-SEAL RING DIN7603-12X18X1,5
    CU-SEAL RING DIN7603-12X18X1,5
  • 39
    50330039000 ENGINE CASE GASKET 0,5MM
    ENGINE CASE GASKET 0,5MM
  • 40
    50330040100 IGNITION COVER GASKET
    IGNITION COVER GASKET
  • 42
    0015060503 HH COLLAR SCREW M 6X50 WS=8
    HH COLLAR SCREW M 6X50 WS=8
  • 43
    0015060553 HH COLLAR SCREW M 6X55 WS=8
    HH COLLAR SCREW M 6X55 WS=8
  • 44
    0015050163 HH COLLAR SCREW M 5X16 WS=8
    HH COLLAR SCREW M 5X16 WS=8
  • 90
    50330090000 BRACKET FOR BREATHERTUBE
    BRACKET FOR BREATHERTUBE
  • 91
    0015050123 HH COLLAR SCREW M 5X12 WS=8
    HH COLLAR SCREW M 5X12 WS=8
  • 92
    50330092000 OIL GUARD GROMMET 25X31
    OIL GUARD GROMMET 25X31
  • 93
    0125050003 WASHER DIN0125-A 5,0
    WASHER DIN0125-A 5,0
  • 94
    0797050003 TOOTH LOCK WASH. DIN6797-J 5,3
    TOOTH LOCK WASH. DIN6797-J 5,3
  • 99
    50330099000 GASKET SET
    GASKET SET
