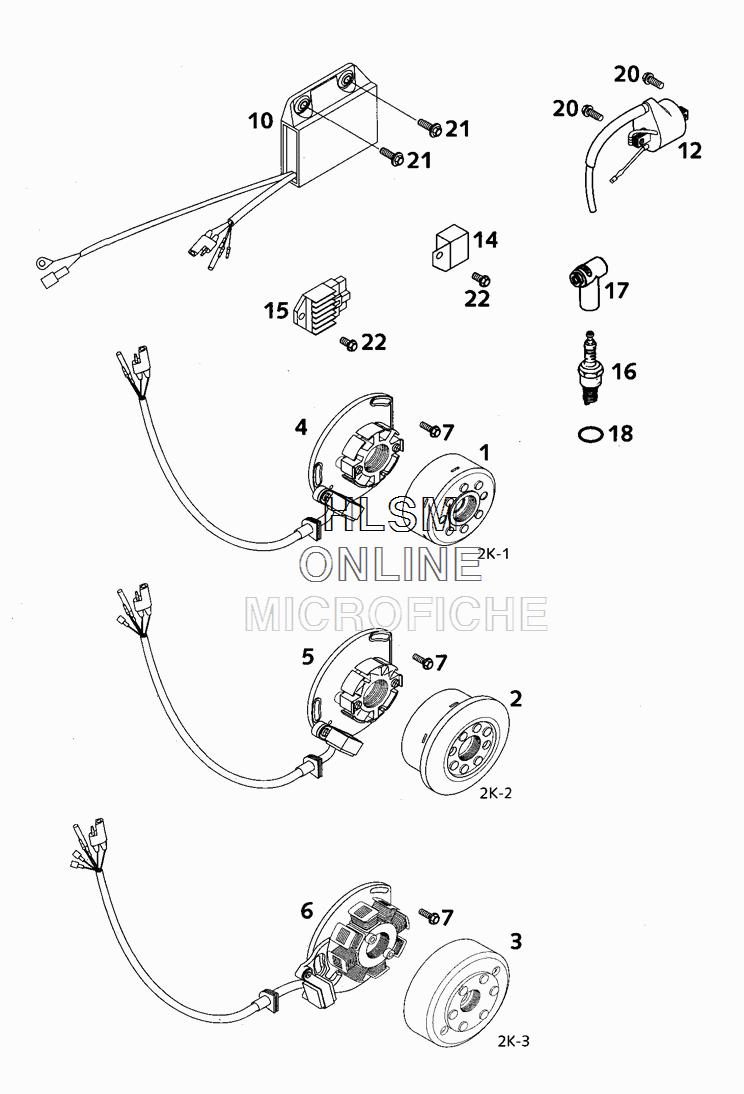

IGNITION SYSTEM для Ktm 200 MXC - 2001 года выпуска
-
№АртикулНазвание
-
254739005144 FLYWHEEL KOKUSAN 2K-2 CPL.FLYWHEEL KOKUSAN 2K-2 CPL.
-
550339004100 STATOR KOKUSAN 2K-2STATOR KOKUSAN 2K-2
-
70015050163 HH COLLAR SCREW M 5X16 WS=8HH COLLAR SCREW M 5X16 WS=8
-
1052339031300 ELECTRIC BOX CU7434 (KOKUSAN)ELECTRIC BOX CU7434 (KOKUSAN)
-
1250339006000 IGNITION COIL KOKU.IGNITION COIL KOKU.
-
1454711034000 VOLTAGE REGULATOR KOKUSANVOLTAGE REGULATOR KOKUSAN
-
1550311034000 VOLTAGE REGULA. 12VVOLTAGE REGULA. 12V
-
1654331093310 SPARK PLUG NGK BRBEG (200)SPARK PLUG NGK BRBEG (200)
-
1754531010000 SPARK PLUG CAP LB05EMH NGKSPARK PLUG CAP LB05EMH NGK
-
180770150040 O-RING 15,00X4,00 NBR 70O-RING 15,00X4,00 NBR 70
-
200015060163 HH COLLAR SCREW M 6X16 WS=8HH COLLAR SCREW M 6X16 WS=8
-
210014060203 HH COLLAR SCREW M 6X20 WS=8HH COLLAR SCREW M 6X20 WS=8
-
220015060123 HH COLLAR SCREW M 6X12 WS=8HH COLLAR SCREW M 6X12 WS=8
