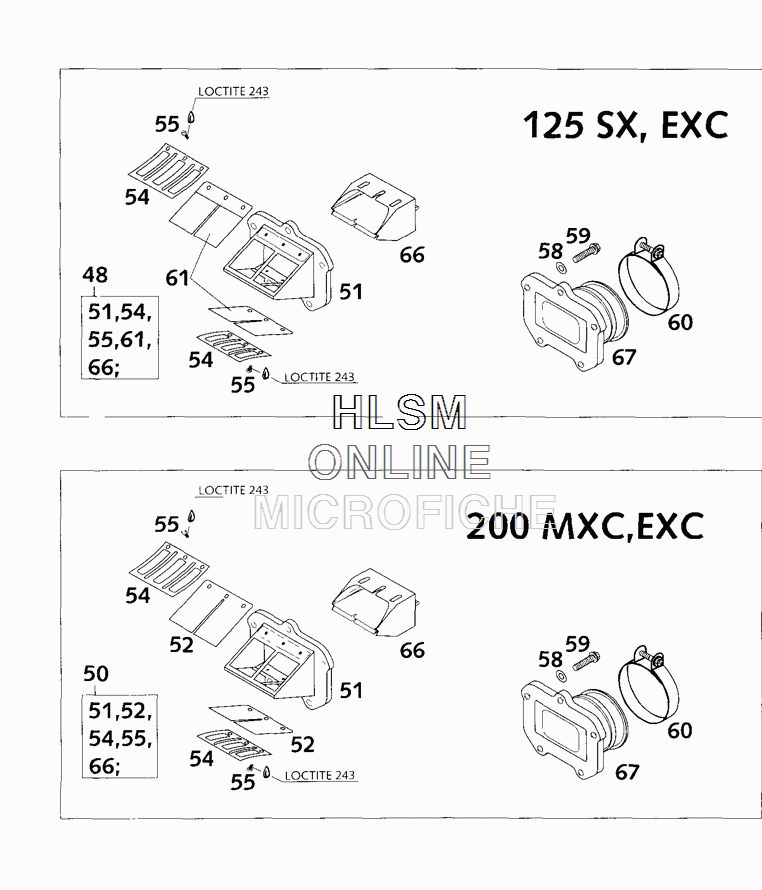

REED VALVE CASE для Ktm 200 MXC - 2001 года выпуска
-
№АртикулНазвание
-
5052330051144 REED VALVE ASSY CPL.REED VALVE ASSY CPL.
-
5254730052040 REED VALVE CARBON 0,40MMREED VALVE CARBON 0,40MM
-
5454630053000 STOP PLATE TOPSTOP PLATE TOP
-
550084040083 CYL.HEAD SCREW DIN0084-M 4X 8CYL.HEAD SCREW DIN0084-M 4X 8
-
580137060000 SPRING WASHER DIN0137-6 6SPRING WASHER DIN0137-6 6
-
590015060203 HH COLLAR SCREW M 6X20 WS=8HH COLLAR SCREW M 6X20 WS=8
-
6054330061000 CLAMP 52/12 GEMICLAMP 52/12 GEMI
-
6650330054100 REED VALVE INSERTREED VALVE INSERT
