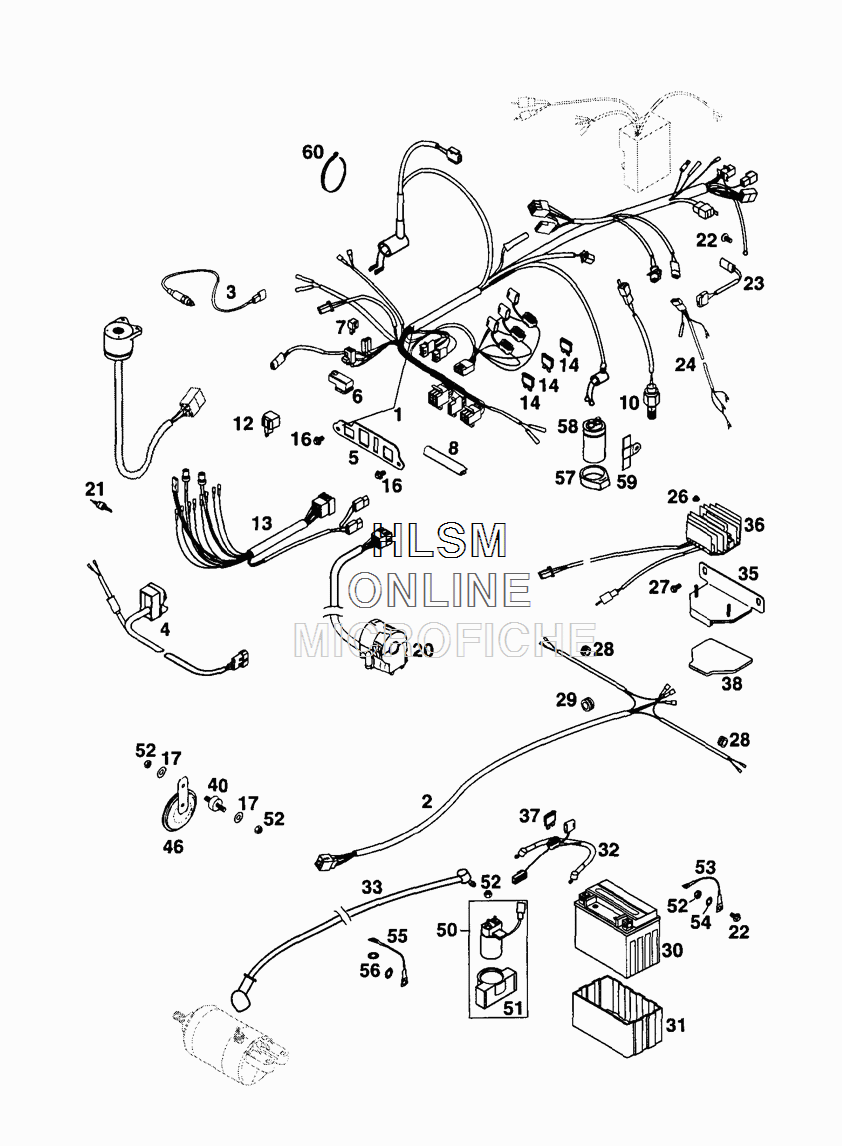

WIRING HARNESS для Ktm LC4 640 Adventure R - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    58211075200 MAIN WIRING HARNESS
    MAIN WIRING HARNESS
  • 2
    58411176000 WIRING HAR. REAR
    WIRING HAR. REAR
  • 3
    58411049000 CLUTCH SWITCH
    CLUTCH SWITCH
  • 4
    58211074000 START-STOP SWITCH (SYMBOLS WHITE)
    START-STOP SWITCH (SYMBOLS WHITE)
  • 5
    58211083000 BRACKET FOR PLUGS
    BRACKET FOR PLUGS
  • 6
    58411057000 STARTER RELAY
    STARTER RELAY
  • 7
    58411096100 DIODE FOR E-START S3H-15
    DIODE FOR E-START S3H-15
  • 8
    58312085100 EDGE PROTECTOR FOR COVER
    EDGE PROTECTOR FOR COVER
  • 10
    50311051100 BRAKE LIGHT SWITCH REAR
    BRAKE LIGHT SWITCH REAR
  • 12
    44611207200 FLASHER UNIT SUMITOMO
    FLASHER UNIT SUMITOMO
  • 13
    58211078000 WIRING HAR. F. CONTROLS
    WIRING HAR. F. CONTROLS
  • 14
    58011109010 FUSE 10 A
    FUSE 10 A
  • 16
    0014060103 HH COLLAR SCREW M 6X10 WS=8
    HH COLLAR SCREW M 6X10 WS=8
  • 17
    0125060003 WASHER DIN0125-A 6,4
    WASHER DIN0125-A 6,4
  • 20
    58211070000 LIGHT SWITCH CPL. CEV
    LIGHT SWITCH CPL. CEV
  • 21
    51011050000 FRONT BRAKE LIGHT SWITCH
    FRONT BRAKE LIGHT SWITCH
  • 22
    0014060103 HH COLLAR SCREW M 6X10 WS=8
    HH COLLAR SCREW M 6X10 WS=8
  • 23
    58431065100 MICRO SWITCH
    MICRO SWITCH
  • 24
    58411085000 WIRING HARN. EPC F. ENGINE
    WIRING HARN. EPC F. ENGINE
  • 26
    56509064100 SELF LOCKING NUT M6 10.9
    SELF LOCKING NUT M6 10.9
  • 27
    0015060103 HH COLLAR SCREW M 6X10 WS=8
    HH COLLAR SCREW M 6X10 WS=8
  • 28
    57511027000 RUBBER SLEEVE D=6MM OPEN
    RUBBER SLEEVE D=6MM OPEN
  • 29
    31008060000 RUBBER SLEEVE D=8MM OPEN
    RUBBER SLEEVE D=8MM OPEN
  • 30
    58411053000 BATTERY 12V 8AH
    BATTERY 12V 8AH
  • 31
    58411053050 BATTERY COVER (RUBBER)
    BATTERY COVER (RUBBER)
  • 32
    58411059250 BATTERY CABLE 190MM 20A (BATTERY - STARTRELAISE)
    BATTERY CABLE 190MM 20A (BATTERY - STARTRELAISE)
  • 33
    58411059100 STARTERCABLE 700 MM (STARTERRELAISE-STARTERENGINE)
    STARTERCABLE 700 MM (STARTERRELAISE-STARTERENGINE)
  • 35
    58411055100 BATTERY BRACKET
    BATTERY BRACKET
  • 36
    58411034100 VOLT.REGULATOR-RECTIFIER 12V
    VOLT.REGULATOR-RECTIFIER 12V
  • 37
    58011109020 FUSE 20 A
    FUSE 20 A
  • 38
    58411055150 METAMOLL FOR BATTERY BRACKET
    METAMOLL FOR BATTERY BRACKET
  • 40
    49001426000 RUBBER GROMMET 20X10-M6X12 (2)
    RUBBER GROMMET 20X10-M6X12 (2)
  • 46
    54511060100 DC HORN 12V NIKKO
    DC HORN 12V NIKKO
  • 50
    58411058000 STARTER RELAY WITH HOLD.RUBBER
    STARTER RELAY WITH HOLD.RUBBER
  • 51
    58411058050 HOLD. RUBBER FOR STARTRELAY
    HOLD. RUBBER FOR STARTRELAY
  • 52
    0985060003 SS. SELF LOCK. NUT DIN0985-M 6
    SS. SELF LOCK. NUT DIN0985-M 6
  • 53
    58411097100 GROUND CABLE D=6MM L=140MM
    GROUND CABLE D=6MM L=140MM
  • 54
    58411098100 CONTACT WASHER M6 VSV-K6
    CONTACT WASHER M6 VSV-K6
  • 55
    58411097200 GROUND CABLE D=8MM L=140MM
    GROUND CABLE D=8MM L=140MM
  • 56
    58411098000 CONTACT WASHER M8 VSV-K8
    CONTACT WASHER M8 VSV-K8
  • 57
    54511048000 CAPACITOR BRACKET
    CAPACITOR BRACKET
  • 58
    49111435100 CONDENSATOR 25V, 10.000 MF
    CONDENSATOR 25V, 10.000 MF
  • 59
    54611448000 BRACKET FOR CAPACITOR
    BRACKET FOR CAPACITOR
  • 60
    44011076305 CABLE TIE 290MM
    CABLE TIE 290MM
  • 60
    44011076200 CABLE TIE 200MM
    CABLE TIE 200MM
  • 60
    44011076100 CABLE TIE 100MM
    CABLE TIE 100MM
