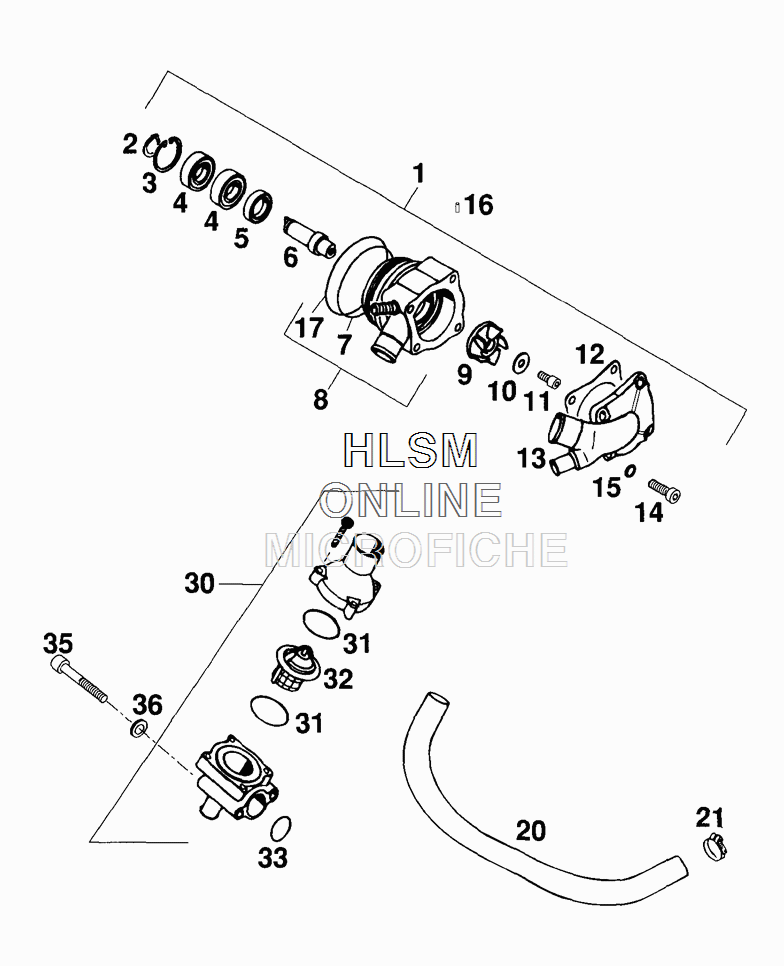

WATER PUMP для Ktm LC4 640 Adventure R - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    58335050044 WATER PUMP MECHANIC CPL.
    WATER PUMP MECHANIC CPL.
  • 2
    0471120010 CIRCLIP DIN0471-12X1
    CIRCLIP DIN0471-12X1
  • 3
    0472280120 CIRCLIP DIN0472-28X1,2
    CIRCLIP DIN0472-28X1,2
  • 4
    0625060016 GROOVED BALL BEARING 6001.2RSR
    GROOVED BALL BEARING 6001.2RSR
  • 5
    0760152472 SHAFT SEAL RING 15X24X7
    SHAFT SEAL RING 15X24X7
  • 6
    54435010000 WATER PUMP SHAFT
    WATER PUMP SHAFT
  • 7
    0770047015 O-RING 47,00X1,50 NBR 70
    O-RING 47,00X1,50 NBR 70
  • 8
    58035002644 WATER PUMP CASE CPL. 4T
    WATER PUMP CASE CPL. 4T
  • 9
    56535005300 WATER PUMP WHEEL
    WATER PUMP WHEEL
  • 10
    0021050003 WASHER DIN9021-A 5,3
    WASHER DIN9021-A 5,3
  • 11
    0912050123 AH SCREW DIN0912-M 5X12
    AH SCREW DIN0912-M 5X12
  • 12
    56535003300 WATER PUMP COVER GASKET
    WATER PUMP COVER GASKET
  • 13
    58335001244 WATER PUMP COVER
    WATER PUMP COVER
  • 14
    0984060203 AH SCREW DIN6912-M 6X20
    AH SCREW DIN6912-M 6X20
  • 15
    0603061001 CU-SEAL RING DIN7603- 6X10X1
    CU-SEAL RING DIN7603- 6X10X1
  • 16
    0402025580 NEEDLEROLL.DIN5402 NRB 2,5X5,8
    NEEDLEROLL.DIN5402 NRB 2,5X5,8
  • 17
    0770049025 O-RING 49,00X2,50 NBR
    O-RING 49,00X2,50 NBR
  • 20
    58335025001 RADIATOR HOSE (REENFORCED) 12X3
    RADIATOR HOSE (REENFORCED) 12X3
  • 21
    58335099000 HOSE CLAMP GEMI 10-16
    HOSE CLAMP GEMI 10-16
  • 30
    58335013044 THERMOSTAT CPL. 70 DG
    THERMOSTAT CPL. 70 DG
  • 31
    0770320020 O-RING 32,00X2,00
    O-RING 32,00X2,00
  • 32
    58335017000 THERMOSTAT 70 DEGREES
    THERMOSTAT 70 DEGREES
  • 33
    0770021020 O-RING 21,00X2,00 NBR70
    O-RING 21,00X2,00 NBR70
  • 35
    0912060453 AH SCREW DIN0912-M 6X45
    AH SCREW DIN0912-M 6X45
  • 36
    0125060003 WASHER DIN0125-A 6,4
    WASHER DIN0125-A 6,4
