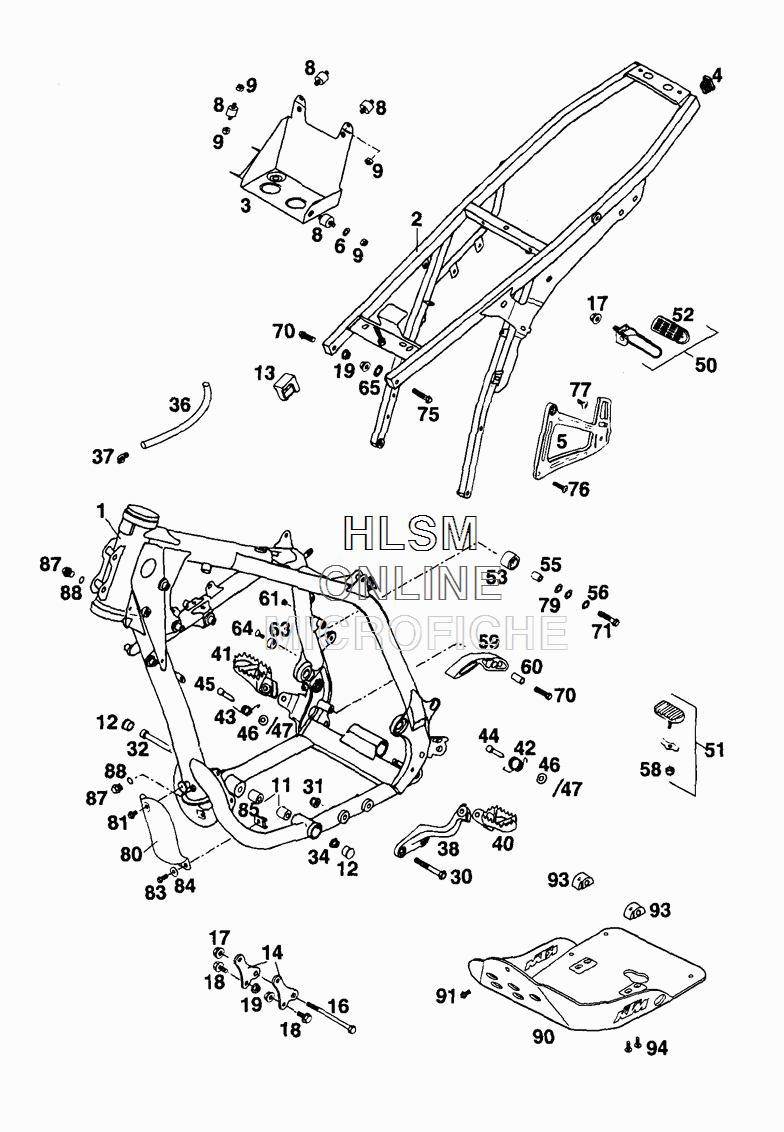

FRAME - SUB FRAME для Ktm LC4 640 Adventure R - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    58203001200 FRAME W. OILRESERVOIR (WITH BEARINGS FOR LINKING)
    FRAME W. OILRESERVOIR (WITH BEARINGS FOR LINKING)
  • 2
    58403002100 SUB FRAME CPL. STEEL
    SUB FRAME CPL. STEEL
  • 3
    58403002270 BRACKET F. BATTERY
    BRACKET F. BATTERY
  • 4
    58303002090 PLUG 12 X 17 MM
    PLUG 12 X 17 MM
  • 5
    58103003200 FOOTREST BRACKET REAR (LEFT)
    FOOTREST BRACKET REAR (LEFT)
  • 5
    58103004200 FOOTREST BRACKET REAR (RIGHT)
    FOOTREST BRACKET REAR (RIGHT)
  • 6
    0137060000 SPRING WASHER D1N0137-B 6
    SPRING WASHER D1N0137-B 6
  • 8
    58403002010 RUBBER GROMMET 20X15-M6X8MM
    RUBBER GROMMET 20X15-M6X8MM
  • 9
    0985060003 SELF LOCK. NUT DIN0985-M 6
    SELF LOCK. NUT DIN0985-M 6
  • 11
    58003012000 SPACER ROLLER 10,3X20X22
    SPACER ROLLER 10,3X20X22
  • 12
    71001012100 PVC CAP D=22MM
    PVC CAP D=22MM
  • 13
    58307015000 TANK SUPPORT
    TANK SUPPORT
  • 14
    58303055000 ENGINE SUPPORT AGW
    ENGINE SUPPORT AGW
  • 16
    0931101103 HH SCREW DIN0931-M10X110
    HH SCREW DIN0931-M10X110
  • 17
    49009082000 SELF LOCKING NUT M10 WS=17
    SELF LOCKING NUT M10 WS=17
  • 18
    49109481052 HH COLLAR SCREW M 8X16
    HH COLLAR SCREW M 8X16
  • 19
    54310086200 SELF LOCKING NUT M8 10.9
    SELF LOCKING NUT M8 10.9
  • 30
    0931100603 HH SCREW DIN0931-M10X60
    HH SCREW DIN0931-M10X60
  • 31
    0985100003 SELF LOCKING NUT DIN0985-M10
    SELF LOCKING NUT DIN0985-M10
  • 32
    0912101603 AH SCREW DIN0912-M10X160
    AH SCREW DIN0912-M10X160
  • 34
    54630044000 COLLAR NUT M10 WS=13
    COLLAR NUT M10 WS=13
  • 36
    55007016001 PVC-HOSE 7X10 PER METER
    PVC-HOSE 7X10 PER METER
  • 37
    50303089000 ANGEL PIECE
    ANGEL PIECE
  • 38
    58303038000 FOOTREST BRACKET (LEFT)
    FOOTREST BRACKET (LEFT)
  • 40
    5830304000019 FOOTREST ANTHRAZIT (LEFT)
    FOOTREST ANTHRAZIT (LEFT)
  • 41
    5460314000019 FOOTREST (RIGHT)
    FOOTREST (RIGHT)
  • 42
    58303041000 FOOTREST SPRING (LEFT)
    FOOTREST SPRING (LEFT)
  • 43
    54603041000 FOOTREST SPRING (LEFT AND RIGHT)
    FOOTREST SPRING (LEFT AND RIGHT)
  • 44
    58303044000 BOLT FOR FOOTREST 9,8 X 43
    BOLT FOR FOOTREST 9,8 X 43
  • 45
    54603044000 BOLT FOR FOOTREST 9,8 X 50
    BOLT FOR FOOTREST 9,8 X 50
  • 46
    0125100003 WASHER DIN0125-A10,5
    WASHER DIN0125-A10,5
  • 47
    0094032253 PIN DIN0094-3,2X25 STEEL
    PIN DIN0094-3,2X25 STEEL
  • 50
    58303050044 FOOTREST REAR CPL. (LEFT)
    FOOTREST REAR CPL. (LEFT)
  • 50
    58303150044 FOOT REST REAR CPL. (RIGHT)
    FOOT REST REAR CPL. (RIGHT)
  • 51
    58303045044 FOOTREST RUBBER CPL.
    FOOTREST RUBBER CPL.
  • 52
    58303051000 FOOTREST RUBBER (LEFT AND RIGHT)
    FOOTREST RUBBER (LEFT AND RIGHT)
  • 53
    58403060000 CHAIN ROLL 12X28X22
    CHAIN ROLL 12X28X22
  • 55
    58403060065 BUSH CHAIN ROLL 8X12X23
    BUSH CHAIN ROLL 8X12X23
  • 56
    360030140 LOCK WASHER 8MM
    LOCK WASHER 8MM
  • 58
    0985060003 SELF LOCK. NUT D1N0985-M 6
    SELF LOCK. NUT D1N0985-M 6
  • 59
    51103053000 CHAIN SLIDING PIECE BELOW
    CHAIN SLIDING PIECE BELOW
  • 60
    51103053051 BUSHING 8,2X10X20
    BUSHING 8,2X10X20
  • 61
    54403135000 PLASTIC CAP SFL10
    PLASTIC CAP SFL10
  • 63
    58303063000 BRAKE LEVER STOP
    BRAKE LEVER STOP
  • 64
    0991060203 FLAT HEAD SCREW DIN7991-M 6X20
    FLAT HEAD SCREW DIN7991-M 6X20
  • 65
    58411098000 CONTACT WASHER M8 VSV-K8
    CONTACT WASHER M8 VSV-K8
  • 70
    0015080303 HH COLLAR SCREW M 8X30 WS=10
    HH COLLAR SCREW M 8X30 WS=10
  • 71
    0015080453 HH COLLAR SCREW M 8X45 WS=10
    HH COLLAR SCREW M 8X45 WS=10
  • 75
    0015080353 HH COLLAR SCREW M 8X35 WS=10
    HH COLLAR SCREW M 8X35 WS=10
  • 76
    54510052100 SPROCKET SCREW-AN M8X26 10.9
    SPROCKET SCREW-AN M8X26 10.9
  • 77
    54610052000 SPROCKET SCREW-AN M 8X20
    SPROCKET SCREW-AN M 8X20
  • 79
    0125080003 WASHER DIN0125-A 8,4
    WASHER DIN0125-A 8,4
  • 80
    58303010000 COVER OIL FILTER
    COVER OIL FILTER
  • 81
    0014060103 HH COLLAR SCREW M 6X10 WS=8
    HH COLLAR SCREW M 6X10 WS=8
  • 83
    0015060163 HH COLLAR SCREW M 6X16 WS=8
    HH COLLAR SCREW M 6X16 WS=8
  • 84
    0021060003 WASHER DIN9021-A 6,4
    WASHER DIN9021-A 6,4
  • 85
    54603048100 RANGE CHANGE METAL NUT M6
    RANGE CHANGE METAL NUT M6
  • 87
    0910100003 PLUG DIN0910-M10X1
    PLUG DIN0910-M10X1
  • 88
    58038022900 CU-SEAL RING 10 X 14 X 1,5
    CU-SEAL RING 10 X 14 X 1,5
  • 90
    58412099000 ENGINE PROTECTOR
    ENGINE PROTECTOR
  • 91
    0014060103 HH COLLAR SCREW M 6X10 WS=8
    HH COLLAR SCREW M 6X10 WS=8
  • 93
    58003012200 ENGINE PROTECTOR BRACKET
    ENGINE PROTECTOR BRACKET
  • 94
    0014060153 HH COLLAR SCREW M 6X15 WS=8
    HH COLLAR SCREW M 6X15 WS=8
