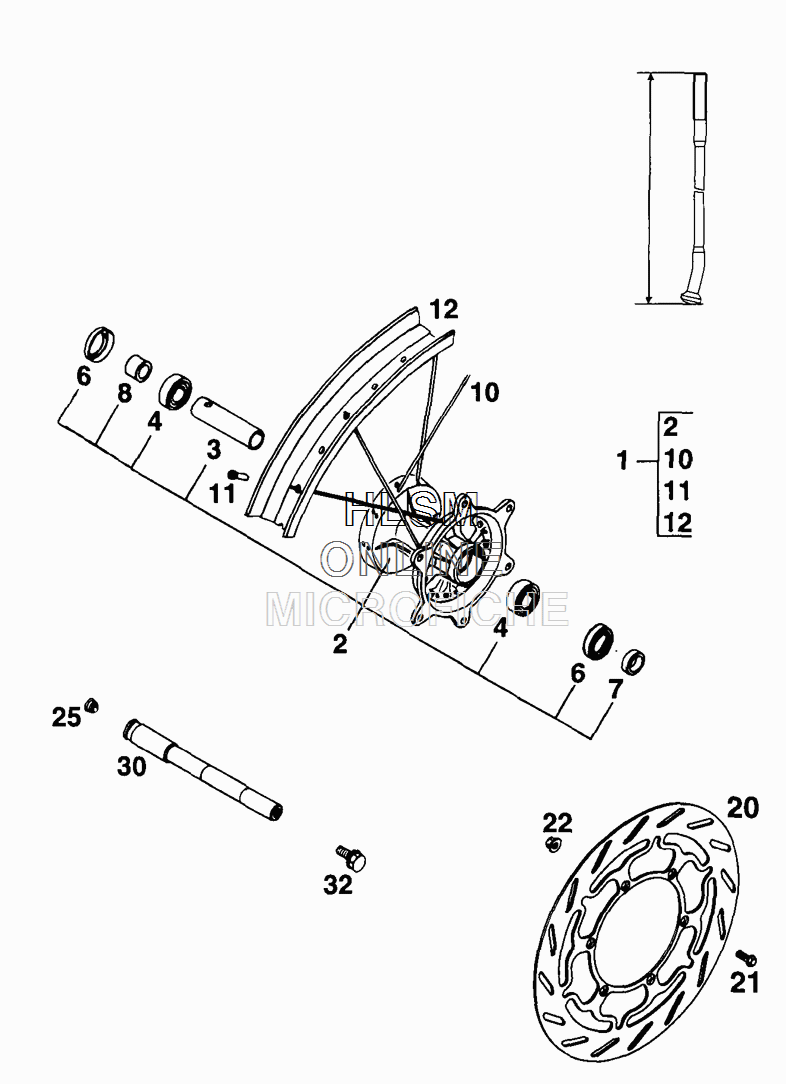

FRONT WHEEL для Ktm LC4 640 Adventure R - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    56509001744 FRONT WHEEL 1,6X21" DID
    FRONT WHEEL 1,6X21" DID
  • 2
    56509010944 FRONT WHEEL HUB (SILVER)
    FRONT WHEEL HUB (SILVER)
  • 3
    56509011400 BEARING SPACER TUBE 17,5X22X82
    BEARING SPACER TUBE 17,5X22X82
  • 4
    0625060037 GROOVED BALL BEAR. 6003 2SR C3
    GROOVED BALL BEAR. 6003 2SR C3
  • 6
    0760253570 SHAFT SEAL RING 25X35X7 BTSL
    SHAFT SEAL RING 25X35X7 BTSL
  • 7
    54609051000 SPACER RING 17X25X7,5
    SPACER RING 17X25X7,5
  • 8
    54609051100 SPACER BUSHING 17X25X15
    SPACER BUSHING 17X25X15
  • 10
    58309071234 SPOKE M5X234-15G 21" DDE
    SPOKE M5X234-15G 21" DDE
  • 11
    58309072000 STEEL NIPPLE M5 CHROME PLATED
    STEEL NIPPLE M5 CHROME PLATED
  • 12
    54609070200 FRONT RIM 1,6X21" DID
    FRONT RIM 1,6X21" DID
  • 20
    58309060100 BRAKE DISK FRONT D=300MM
    BRAKE DISK FRONT D=300MM
  • 21
    0015060163 HH COLLAR SCREW M 6X16 WS=8
    HH COLLAR SCREW M 6X16 WS=8
  • 22
    56509064100 SELF LOCKING NUT M6 10.9
    SELF LOCKING NUT M6 10.9
  • 25
    55009086000 PLUG SFL13
    PLUG SFL13
  • 30
    50309081000 FRONT AXLE L=235MM
    FRONT AXLE L=235MM
  • 32
    49032011000 HH COLLAR SCREW M10X20
    HH COLLAR SCREW M10X20
