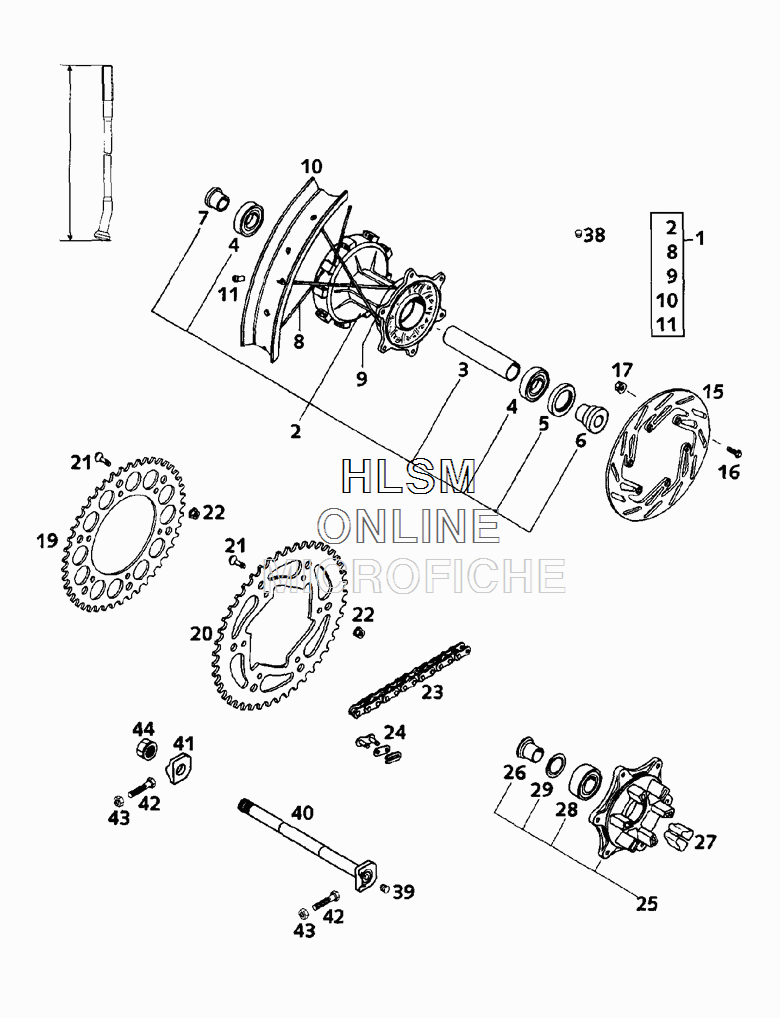

REAR WHEEL для Ktm LC4 400 Dual Sport - 2000 года выпуска
-
№АртикулНазвание
-
158310001044 REAR WHEEL 2,50X18" DIDREAR WHEEL 2,50X18" DID
-
258310010044 REAR WHEEL HUB DAMPED CPL.REAR WHEEL HUB DAMPED CPL.
-
354610411100 BEARING SPACER TUBE L=98,5MMBEARING SPACER TUBE L=98,5MM
-
40625062052 GROOVED BALL BEAR. 6205 2RSRC3GROOVED BALL BEAR. 6205 2RSRC3
-
50760325272 SHAFT SEAL RING 32X52X7 BSHAFT SEAL RING 32X52X7 B
-
654610016000 BUSHING FOR HUBBUSHING FOR HUB
-
754610416300 BUSHING FOR REAR DAMPED HUBBUSHING FOR REAR DAMPED HUB
-
8546104710008 SPOKE M5X223-10G 18"SPOKE M5X223-10G 18"
-
9503100711978 SPOKE M5X197-10G 18" DDESPOKE M5X197-10G 18" DDE
-
1058010470100 REAR RIM 2,50X18" DIDREAR RIM 2,50X18" DID
-
11583090720006 STEEL NIPPLE M5 CHROME PLATEDSTEEL NIPPLE M5 CHROME PLATED
-
1558010060600 REAR BRAKE DISK 220MM COUNTERSREAR BRAKE DISK 220MM COUNTERS
-
160015060203 HH COLLAR SCREW M 6X20 WS=8HH COLLAR SCREW M 6X20 WS=8
-
1756509064100 SELF LOCKING NUT M6 10.9SELF LOCKING NUT M6 10.9
-
1958310051038 REAR SPROCKET 38-TREAR SPROCKET 38-T
-
1958310151040 REAR SPROCKET 40-TREAR SPROCKET 40-T
-
1958310151040 REAR SPROCKET 40-TREAR SPROCKET 40-T
-
1958310051042 REAR SPROCKET 42-TREAR SPROCKET 42-T
-
1958310151045 REAR SPROCKET 45-TREAR SPROCKET 45-T
-
2058310151048 REAR SPROCKET 48-TREAR SPROCKET 48-T
-
2058310151050 REAR SPROCKET 50-TREAR SPROCKET 50-T
-
2058310151052 REAR SPROCKET 52-TREAR SPROCKET 52-T
-
2154510052100 SPROCKET SCREW-AH M8X26 10.9SPROCKET SCREW-AH M8X26 10.9
-
2254310086200 SELF LOCKING NUT M8 10.9SELF LOCKING NUT M8 10.9
-
2350010065100 O-RING CHAIN 5/8X1/4" DID 118 ROLLSO-RING CHAIN 5/8X1/4" DID 118 ROLLS
-
2350010065101 O-RING CHAIN 5/8X1/4"PER METERO-RING CHAIN 5/8X1/4"PER METER
-
2450010066100 MASTER LINK 5/8X1/4" O-RINGMASTER LINK 5/8X1/4" O-RING
-
2558310050044 SPROCKET SUPPORT CPL.SPROCKET SUPPORT CPL.
-
2654610417300 BUSH. F.SPROCKETSUPPORT L=25MMBUSH. F.SPROCKETSUPPORT L=25MM
-
2754610459000 DAMPING RUBBERDAMPING RUBBER
-
280625032057 GROOVED BALL BEAR. 3205.B.2RSRGROOVED BALL BEAR. 3205.B.2RSR
-
2954610018000 SEAL WASHER 3205 AVSEAL WASHER 3205 AV
-
3855003135000 PLUG FOR RIMPLUG FOR RIM
-
3950210086000 COVERING CAP SFL16COVERING CAP SFL16
-
4050210085044 WHEEL SPINDLE REAR CPL.L=264MMWHEEL SPINDLE REAR CPL.L=264MM
-
4156510084100 CHAIN TENSIONER FORGEDCHAIN TENSIONER FORGED
-
4250203030090 HH SCREW M8X40 A2 WS=10HH SCREW M8X40 A2 WS=10
-
430934080003 HEXAGON NUT DIN0934-M 8HEXAGON NUT DIN0934-M 8
-
4450310099000 HEXAGON NUT M20X1,5HEXAGON NUT M20X1,5
