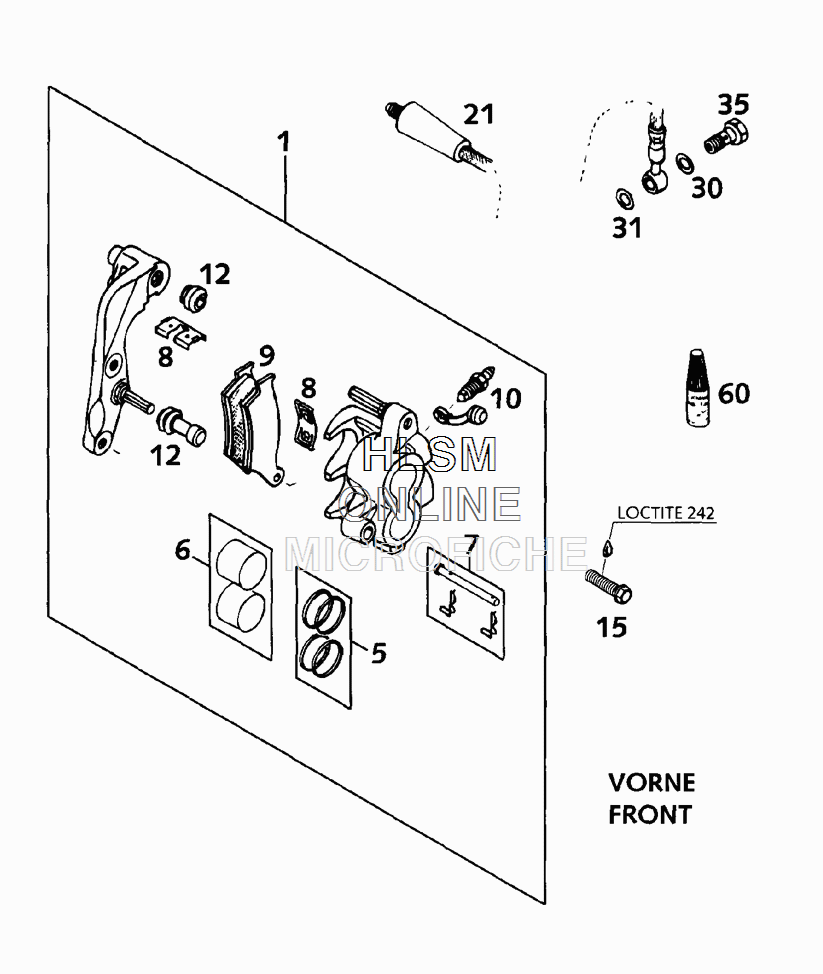

BRAKE CALIPER FRONT для Ktm LC4 400 Dual Sport - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    58413015044 BRAKE CALIPER FRONT CPL. 2 PISTON
    BRAKE CALIPER FRONT CPL. 2 PISTON
  • 5
    54613205000 REPAIR KIT 28MM
    REPAIR KIT 28MM
  • 6
    54613206000 REPAIR KIT PISTON 28MM
    REPAIR KIT PISTON 28MM
  • 7
    54613210100 BOLT CPL. 6X56
    BOLT CPL. 6X56
  • 8
    54613212000 RETAINING PLATE SET
    RETAINING PLATE SET
  • 9
    58413030000 BRAKE PAD SET TEXTAR T4069 GF
    BRAKE PAD SET TEXTAR T4069 GF
  • 10
    54513214000 BLEEDER SCREW M10X1
    BLEEDER SCREW M10X1
  • 12
    54613218000 CUP SET SHORT
    CUP SET SHORT
  • 15
    0015080353 HH COLLAR SCREW M 8X35 WS=10
    HH COLLAR SCREW M 8X35 WS=10
  • 21
    58413011100 BRAKE HOSE FRONT WP 1235MM
    BRAKE HOSE FRONT WP 1235MM
  • 30
    42013226000 CU-SEAL RING DIN7603-10X16X1
    CU-SEAL RING DIN7603-10X16X1
  • 31
    42013026000 CU-SEAL RING DIN7603-10X16X1,5
    CU-SEAL RING DIN7603-10X16X1,5
  • 35
    50213025000 HOLLOW SCREW M10X1X19
    HOLLOW SCREW M10X1X19
  • 60
    6899785 LOCTITE 242 6CCM (BLUE)
    LOCTITE 242 6CCM (BLUE)
