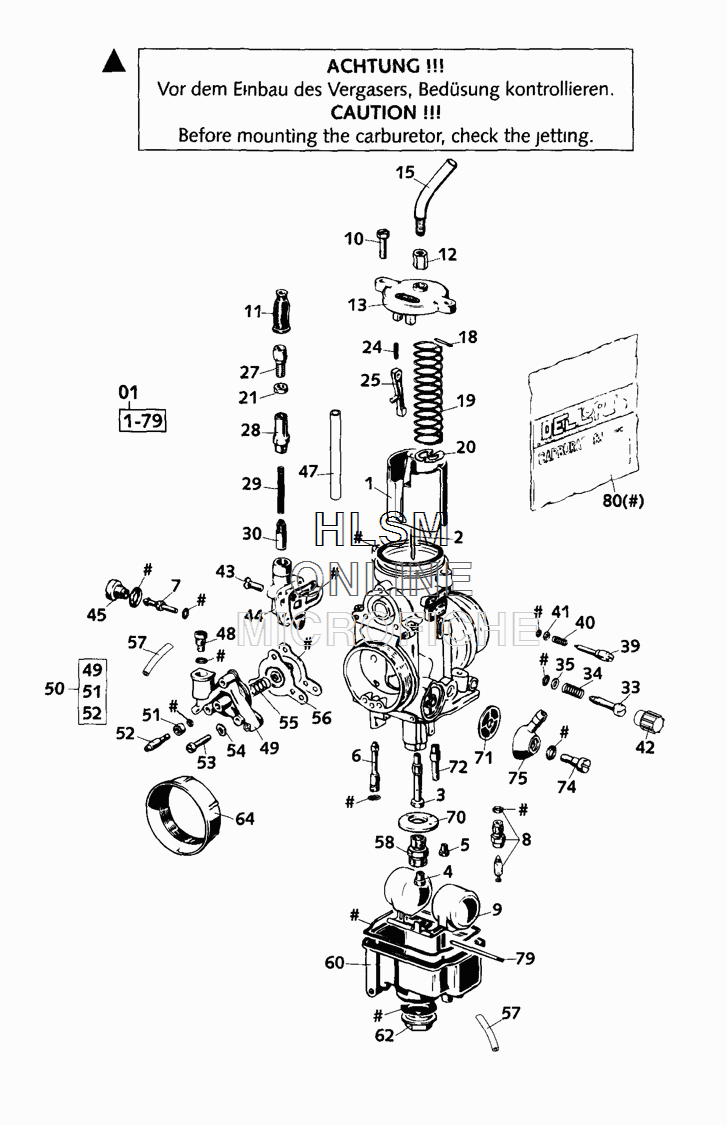

CARBURETOR (PHM 38 ND) для Ktm LC4 400 Dual Sport - 2000 года выпуска
-
№АртикулНазвание
-
0157631001044 CARBURETOR PHM 38 ND (100197)CARBURETOR PHM 38 ND (100197)
-
157231135000 THROTTLE VALVE 50/1 DM=42MMTHROTTLE VALVE 50/1 DM=42MM
-
249031134023 JET NEEDLE K23JET NEEDLE K23
-
357731021264 NEEDLE JET AR 264NEEDLE JET AR 264
-
457031523130 MAIN JET 130MAIN JET 130
-
457031523135 MAIN JET 135MAIN JET 135
-
457031523140 MAIN JET 140MAIN JET 140
-
457031523145 MAIN JET 145MAIN JET 145
-
457031523150 MAIN JET 150MAIN JET 150
-
515131123055 JET 55JET 55
-
515131123050 JET 50JET 50
-
515131123045 JET 45JET 45
-
515131123038 JET 38JET 38
-
657031551045 STARTING JET 45 (AIR HOLE BELOW)STARTING JET 45 (AIR HOLE BELOW)
-
657031551050 STARTING JET 50STARTING JET 50
-
657031551055 STARTING JET 55STARTING JET 55
-
757031566033 ACCELERATING JET 33ACCELERATING JET 33
-
857231120300 NEEDLE VALVE 300NEEDLE VALVE 300
-
957031509000 FLOAT 8,5 GRAMMEFLOAT 8,5 GRAMME
-
958331509000 FLOAT 6,5 GRAMMEFLOAT 6,5 GRAMME
-
1057031524000 HEXAGON NUT M 5X16HEXAGON NUT M 5X16
-
1152031138000 RUBBER SLEEVERUBBER SLEEVE
-
1258031528000 SUPPORT BUSHING M6X0,75 WS=10SUPPORT BUSHING M6X0,75 WS=10
-
1357231127000 CARBURETOR COVERCARBURETOR COVER
-
1558431024000 TUBE F. CARBURETORTUBE F. CARBURETOR
-
1857031571000 STUD 2,5X16STUD 2,5X16
-
1957031530000 SLIDING SPRINGSLIDING SPRING
-
2057031532000 RETAINING PLATERETAINING PLATE
-
2152031126000 HEXAGON NUT M6X0,75 DIN0439HEXAGON NUT M6X0,75 DIN0439
-
2457031570000 SPRINGSPRING
-
2557031569000 PUMP LEVERPUMP LEVER
-
2757031525000 ADJUSTMENT SCREW M6X0,75ADJUSTMENT SCREW M6X0,75
-
2857231155000 PLUGPLUG
-
2957231153000 SPRINGSPRING
-
3057031549000 STARTING DEVICESTARTING DEVICE
-
3357031519000 ADJUSTMENT SCREW M5ADJUSTMENT SCREW M5
-
3452031116000 SPRINGSPRING
-
3557031573000 WASHER 5,1 X 8 X 0,8WASHER 5,1 X 8 X 0,8
-
3957031517000 MIXTURE REGULAT.SCREW M7X0,75MIXTURE REGULAT.SCREW M7X0,75
-
4157031572000 WASHER 3,3 X 5,8 X 0,5WASHER 3,3 X 5,8 X 0,5
-
4257031519100 KNURLED CAP PLASTICKNURLED CAP PLASTIC
-
430964040143 OVAL HEAD SCREW DIN0964-M 4X14OVAL HEAD SCREW DIN0964-M 4X14
-
4457231150100 START. DEVICE BODY 4SSTART. DEVICE BODY 4S
-
4557031567000 JET HOLDERJET HOLDER
-
4758331029051 SLIDE STOP L=51MMSLIDE STOP L=51MM
-
4857031565000 BLEEDER VALVEBLEEDER VALVE
-
5057231160044 PUMP HOUSING CPL.PUMP HOUSING CPL.
-
530084040203 CYL.SCREW DIN0084-M 4X20 ACYL.SCREW DIN0084-M 4X20 A
-
540137040003 SPRING WASHER DIN0137-B 4SPRING WASHER DIN0137-B 4
-
5557031559000 SPRINGSPRING
-
5657031557000 DIAPHRAGMDIAPHRAGM
-
5752031137001 PVC-HOSE 3 X 6 MMPVC-HOSE 3 X 6 MM
-
5857031522000 MAIN JET HOLDERMAIN JET HOLDER
-
6057031511100 FLOAT CHAMBER WITH RUN OVER T.FLOAT CHAMBER WITH RUN OVER T.
-
6257031514000 PLUG M12X1PLUG M12X1
-
7050131174000 COVERCOVER
-
7115131112000 FUEL FILTERFUEL FILTER
-
740933060163 HH SCREW DIN0933-M 6X16HH SCREW DIN0933-M 6X16
-
7557031513000 HOSE CONNECTORHOSE CONNECTOR
-
7957031508000 STUD 2 X 47STUD 2 X 47
-
8057731099000 GASKET SET PHM 38 NDGASKET SET PHM 38 ND
