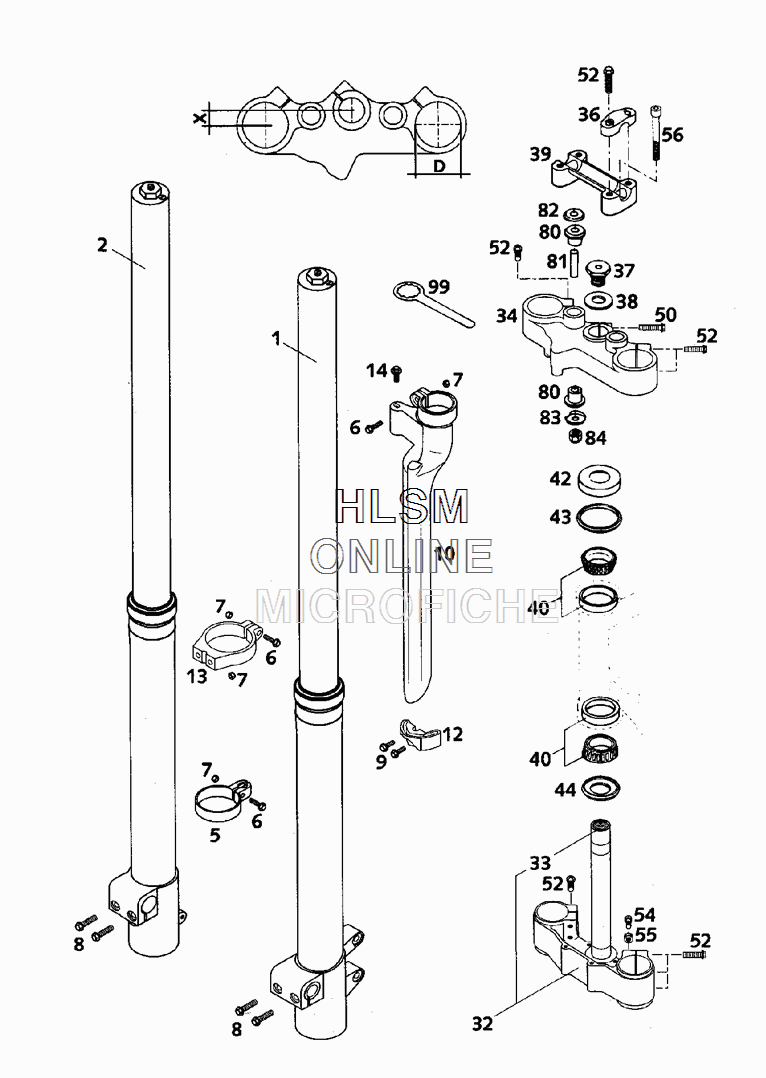

FRONT FORK (W/ PAINT) для Ktm LC4 400 Dual Sport - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    58401001100 FORK LEG L/S WP "0918S757"
    FORK LEG L/S WP "0918S757"
  • 2
    58401002100 FORK LEG R/S WP "0918S757"
    FORK LEG R/S WP "0918S757"
  • 5
    50301070000 SP.CABLE GUIDE MARZ.50, WP50
    SP.CABLE GUIDE MARZ.50, WP50
  • 6
    0015050203 HH COLLAR SCREW M 5X20 WS=8
    HH COLLAR SCREW M 5X20 WS=8
  • 7
    0985050003 SELF LOCKING NUT DIN0985-M 5
    SELF LOCKING NUT DIN0985-M 5
  • 8
    0015080253 HH COLLAR SCREW M 8X25 WS=10
    HH COLLAR SCREW M 8X25 WS=10
  • 9
    0015050163 HH COLLAR SCREW M 5X16 WS=8
    HH COLLAR SCREW M 5X16 WS=8
  • 10
    50301092000 FORK PROTECTOR (LEFT) (BLACK)
    FORK PROTECTOR (LEFT) (BLACK)
  • 10
    50301093000 FORK PROTECTOR (RIGHT) (BLACK)
    FORK PROTECTOR (RIGHT) (BLACK)
  • 12
    5460129000030 FORK PROTECTION GUIDE (LEFT)
    FORK PROTECTION GUIDE (LEFT)
  • 12
    5460139000030 FORK PROTECTION GUIDE (RIGHT)
    FORK PROTECTION GUIDE (RIGHT)
  • 13
    50301090250 CLAMP PROTECTOR GUIDE
    CLAMP PROTECTOR GUIDE
  • 14
    0014060153 HH COLLAR SCREW M 6X15 WS=8
    HH COLLAR SCREW M 6X15 WS=8
  • 32
    50301032116 BOT.TRIPLE CLAMP X=16MM/D=50MM
    BOT.TRIPLE CLAMP X=16MM/D=50MM
  • 33
    50101033100 FORK TUBE L=244
    FORK TUBE L=244
  • 34
    58401034116 TOP TRIPLE CLAMP X=16MM/D=50MM
    TOP TRIPLE CLAMP X=16MM/D=50MM
  • 36
    54601038000 HANDLEBAR CLAMP
    HANDLEBAR CLAMP
  • 37
    56401043000 HH SCREW M20X1,5
    HH SCREW M20X1,5
  • 38
    56401044000 WASHER 21X38X3
    WASHER 21X38X3
  • 39
    58301039100 HANDLEBAR SUPPORT
    HANDLEBAR SUPPORT
  • 40
    54201081000 TAPERED ROLLER BEARING
    TAPERED ROLLER BEARING
  • 42
    54201086000 STEERING HEAD COVER
    STEERING HEAD COVER
  • 43
    54601184000 STEARING HEAD GASKET TOP
    STEARING HEAD GASKET TOP
  • 44
    54601084100 O-RING SUPPORT W. SEALING LIP
    O-RING SUPPORT W. SEALING LIP
  • 50
    0015080403 HH COLLAR SCREW M 8X40 WS=10
    HH COLLAR SCREW M 8X40 WS=10
  • 52
    0015080303 HH COLLAR SCREW M 8X30 WS=10
    HH COLLAR SCREW M 8X30 WS=10
  • 54
    0933080253 HH SCREW DIN0933-M 8X25
    HH SCREW DIN0933-M 8X25
  • 55
    0934080003 HEXAGON NUT DIN0934-M 8
    HEXAGON NUT DIN0934-M 8
  • 56
    0984100703 AH SCREW DIN6912-M10X70
    AH SCREW DIN6912-M10X70
  • 80
    56401040000 RUBBER BUSHING
    RUBBER BUSHING
  • 81
    56401041100 SPACER TUBE 10,2X12X44
    SPACER TUBE 10,2X12X44
  • 82
    56401042000 WASHER 10,5X32X2
    WASHER 10,5X32X2
  • 83
    56401142000 WASHER 10,5X31
    WASHER 10,5X31
  • 84
    0985100003 SELF LOCKING NUT DIN0985-M10
    SELF LOCKING NUT DIN0985-M10
  • 99
    54212035000 RING WRENCH WS=32
    RING WRENCH WS=32
