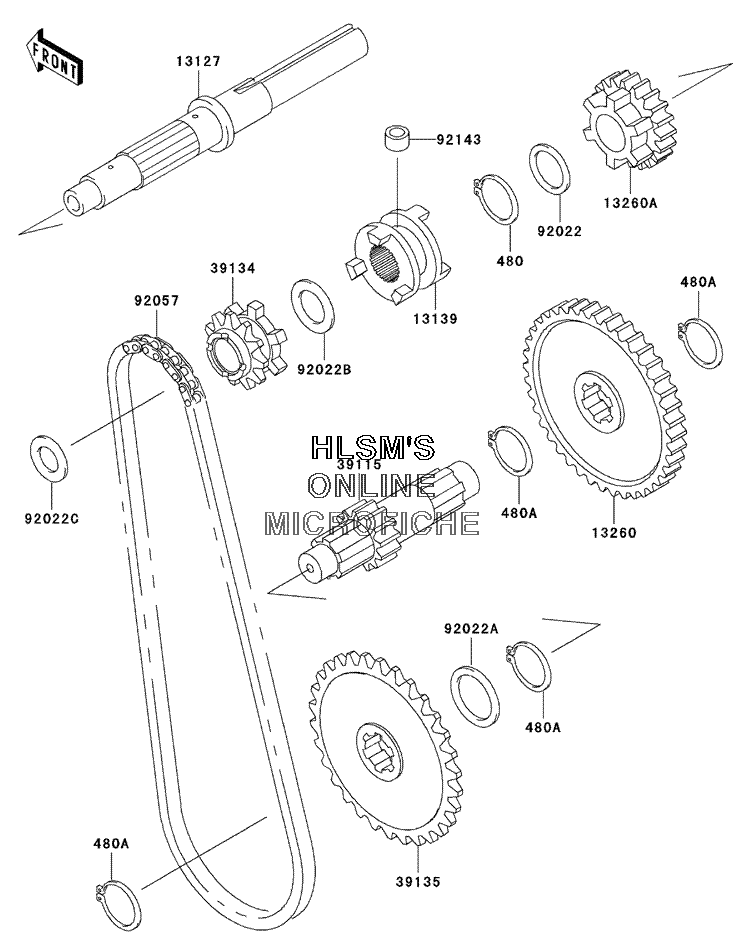

TRANSMISSION для Kawasaki MULE 550 (KAF300-C7) - 2004 года выпуска

  • №
    Артикул
    Название
  • 480
    480J2500 CIRCLIP-TYPE-C, 25MM
    CIRCLIP-TYPE-C, 25MM
  • 480A
    480J2800 CIRCLIP-TYPE-C, 28MM
    CIRCLIP-TYPE-C, 28MM
  • 13127
    13127-1203 SHAFT-TRANSMISSION INPUT
    SHAFT-TRANSMISSION INPUT
  • 13139
    13139-1070 SHIFTER
    SHIFTER
  • 13260
    13260-1152 GEAR, OUTPUT FORWARD, 55T
    GEAR, OUTPUT FORWARD, 55T
  • 13260A
    13260-1336 GEAR, INPUT FORWARD, 24T
    GEAR, INPUT FORWARD, 24T
  • 39115
    39115-1070 SHAFT, OUTPUT REDUCTION, 13T
    SHAFT, OUTPUT REDUCTION, 13T
  • 39134
    39134-1054 SPROCKET-DRIVE, 19T
    SPROCKET-DRIVE, 19T
  • 39135
    39135-1053 GEAR, 51T
    GEAR, 51T
  • 92022
    92022-1109 WASHER, 25.3X33X1
    WASHER, 25.3X33X1
  • 92022A
    92022-1626 WASHER, 28.3X34X0.3
    WASHER, 28.3X34X0.3
  • 92022B
    92022-1723 WASHER, 22.3X35X2.0
    WASHER, 22.3X35X2.0
  • 92022C
    92022-270 WASHER, 17.3X30X1.4
    WASHER, 17.3X30X1.4
  • 92057
    92057-1349 CHAIN, REVERSE
    CHAIN, REVERSE
  • 92143
    92143-1497 COLLAR, 8X14X10.5
    COLLAR, 8X14X10.5
