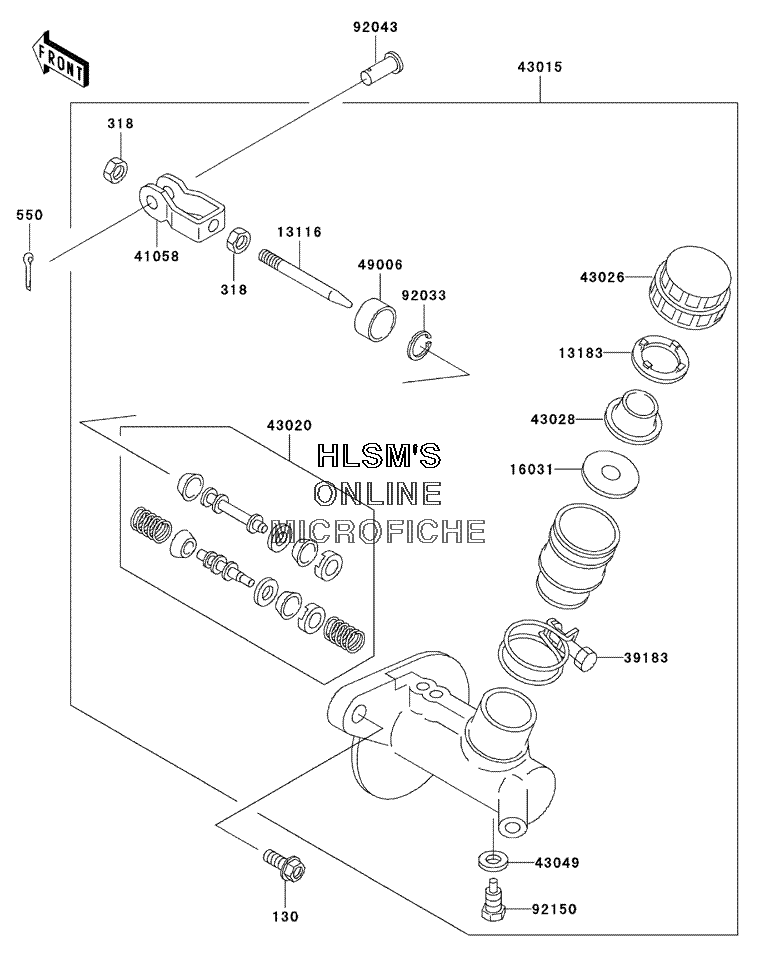

BRAKE - MASTER CYLINDER для Kawasaki MULE 550 (KAF300-C7) - 2004 года выпуска
-
№АртикулНазвание
-
130130D0820 BOLT-FLANGEDBOLT-FLANGED
-
318318H0800 NUT-HEX-SMALLNUT-HEX-SMALL
-
550550D2518 PIN-COTTER, 2.5X18PIN-COTTER, 2.5X18
-
1311613116-1134 ROD-PUSHROD-PUSH
-
1318313183-1306 PLATEPLATE
-
1603116031-1069 FLOATFLOAT
-
3918339183-1055 BAND-ASSYBAND-ASSY
-
4105841058-1057 RODEND-BRAKERODEND-BRAKE
-
4301543015-1683 CYLINDER-ASSY-MASTERCYLINDER-ASSY-MASTER
-
4302043020-1124 PISTON-COMP-BRAKEPISTON-COMP-BRAKE
-
4302643026-1067 CAP-BRAKECAP-BRAKE
-
4302843028-1078 DIAPHRAGMDIAPHRAGM
-
4304943049-1065 PACKINGPACKING
-
4900649006-1245 BOOTBOOT
-
9203392033-1255 RING-SNAPRING-SNAP
-
9204392043-1039 PINPIN
-
9215092150-1165 BOLT, STOPBOLT, STOP
