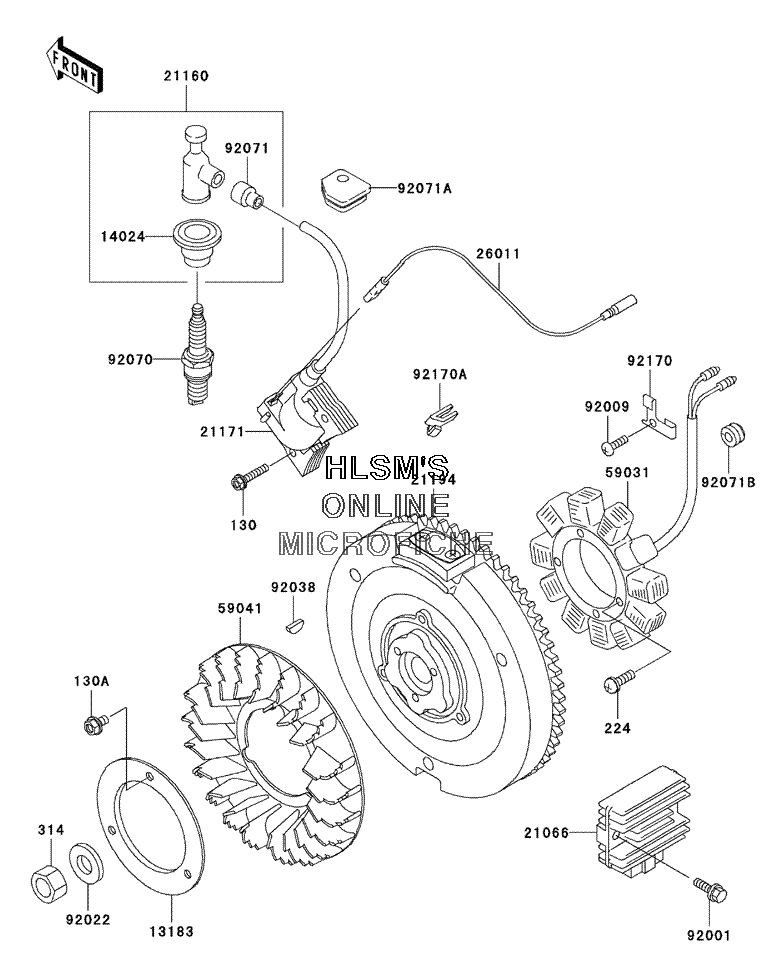

GENERATOR W/ IGNITION SYSTEM для Kawasaki MULE 550 (KAF300-C7) - 2004 года выпуска
-
№АртикулНазвание
-
130130B0525 BOLT-FLANGEDBOLT-FLANGED
-
130A130G0610 BOLT-FLANGED, 6X10BOLT-FLANGED, 6X10
-
224224B0620 SCREW-PAN-WP-CROSSCREW-PAN-WP-CROS
-
314314G1600 NUT-HEX-FINENUT-HEX-FINE
-
1318313183-2407 PLATEPLATE
-
1402414024-2234 COVERCOVER
-
2106621066-2004 REGULATOR-VOLTAGEREGULATOR-VOLTAGE
-
2116021160-2051 CAP-ASSY-PLUGCAP-ASSY-PLUG
-
2117121171-2207 COIL-ASSY-IGNITIONCOIL-ASSY-IGNITION
-
2119421194-2334 FLYWHEEL-COMPFLYWHEEL-COMP
-
2601126011-2333 WIRE-LEAD, L=300WIRE-LEAD, L=300
-
5903159031-2097 COIL-CHARGINGCOIL-CHARGING
-
5904159041-2088 FANFAN
-
9200192001-1352 BOLT, FLANGED, 6X22BOLT, FLANGED, 6X22
-
9200992009-2308 SCREWSCREW
-
9202292022-2205 WASHERWASHER
-
9203892038-2094 KEY, WOODRUFFKEY, WOODRUFF
-
9207092070-2077 PLUG-SPARK, BPR5ES(NGK)PLUG-SPARK, BPR5ES(NGK)
-
9207192071-2008 GROMMETGROMMET
-
92071A92071-2112 GROMMETGROMMET
-
92071B92071-2125 GROMMETGROMMET
-
9217092170-2016 CLAMPCLAMP
-
92170A92170-2017 CLAMPCLAMP
