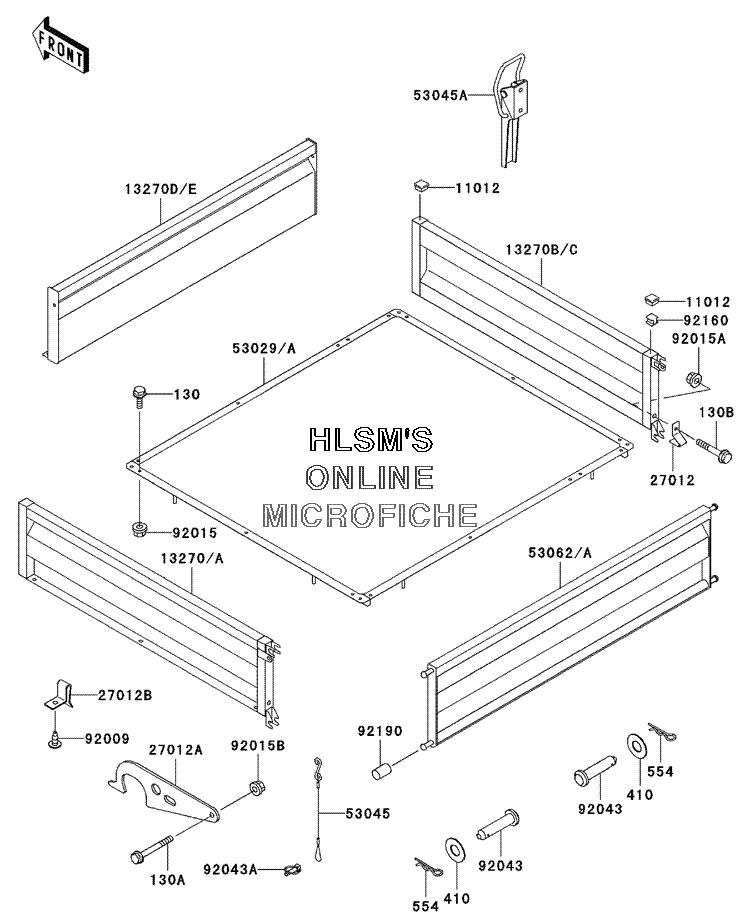

CARRIER(S) для Kawasaki MULE 550 (KAF300-C7) - 2004 года выпуска
-
№АртикулНазвание
-
130130J0616 BOLT-FLANGED, 6X16, BLACKBOLT-FLANGED, 6X16, BLACK
-
130A130J0640 BOLT-FLANGED, 6X40, BLACKBOLT-FLANGED, 6X40, BLACK
-
130B130J0850 BOLT-FLANGED, 8X50BOLT-FLANGED, 8X50
-
410410B1200 WASHER-PLAIN-SMALL, 12MMWASHER-PLAIN-SMALL, 12MM
-
554554A1200 PIN-SNAP, 12MMPIN-SNAP, 12MM
-
1101211012-1784 CAPCAP
-
1327013270-1090-B9 PLATE, CARRIER, SIDE (LEFT) H.GREENPLATE, CARRIER, SIDE (LEFT) H.GREEN
-
13270A13270-1090-467 PLATE, CARRIER, SIDE (LEFT) A.REDPLATE, CARRIER, SIDE (LEFT) A.RED
-
13270B13270-1092-B9 PLATE, CARRIER, SIDE (RIGHT) H.GREENPLATE, CARRIER, SIDE (RIGHT) H.GREEN
-
13270C13270-1092-467 PLATE, CARRIER, SIDE (RIGHT) A.REDPLATE, CARRIER, SIDE (RIGHT) A.RED
-
13270D13270-1677-B9 PLATE, CARRIER (FRONT) H.GREENPLATE, CARRIER (FRONT) H.GREEN
-
13270E13270-1677-467 PLATE, CARRIER (FRONT) A.REDPLATE, CARRIER (FRONT) A.RED
-
2701227012-1406 HOOK, TAIL GATEHOOK, TAIL GATE
-
27012A27012-1444 HOOK, CARRIERHOOK, CARRIER
-
27012B27012-1445 HOOK, CARRIERHOOK, CARRIER
-
5302953029-1192-B9 CARRIER, H.GREENCARRIER, H.GREEN
-
53029A53029-1192-467 CARRIER, A.REDCARRIER, A.RED
-
5304553045-1060 HOOK-ASSY, TALE GATEHOOK-ASSY, TALE GATE
-
53045A53045-1063 HOOK-ASSYHOOK-ASSY
-
5306253062-1005-B9 GATE-TAIL, H.GREENGATE-TAIL, H.GREEN
-
53062A53062-1005-467 GATE-TAIL, A.REDGATE-TAIL, A.RED
-
9200992009-1166 SCREWSCREW
-
9201592015-1386 NUT, FLANGED, 6MMNUT, FLANGED, 6MM
-
92015A92015-1408 NUT, FLANGED, 8MMNUT, FLANGED, 8MM
-
92015B92015-1675 NUT, LOCK, FLANGED, 6MMNUT, LOCK, FLANGED, 6MM
-
9204392043-1451 PIN, 12X54PIN, 12X54
-
92043A92043-1490 PINPIN
-
9216092160-1191 DAMPERDAMPER
-
9219092190-1467 TUBE, 8X10X15TUBE, 8X10X15
