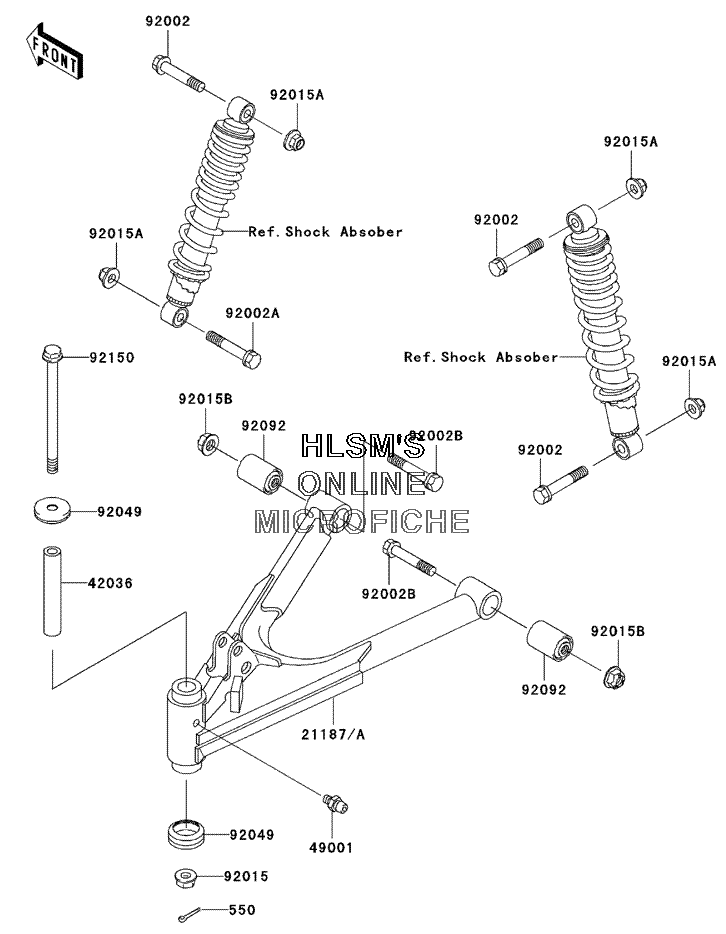

SUSPENSION для Kawasaki MULE 550 (KAF300-C7) - 2004 года выпуска

  • №
    Артикул
    Название
  • 550
    550D2022 PIN-COTTER, 2.0X22
    PIN-COTTER, 2.0X22
  • 21187
    21187-1083 ARM-ASSY, SUSPENSION (FRONT) (RIGHT)
    ARM-ASSY, SUSPENSION (FRONT) (RIGHT)
  • 21187A
    21187-1084 ARM-ASSY, SUSPENSION (FRONT) (LEFT)
    ARM-ASSY, SUSPENSION (FRONT) (LEFT)
  • 42036
    42036-1333 SLEEVE, 12X18X120.6
    SLEEVE, 12X18X120.6
  • 49001
    49001-0001 NIPPLE-GREASE
    NIPPLE-GREASE
  • 92002
    92002-1529 BOLT, FLANGED, 10X53.5
    BOLT, FLANGED, 10X53.5
  • 92002A
    92002-1545 BOLT, FLANGED, 10X42
    BOLT, FLANGED, 10X42
  • 92002B
    92002-1757 BOLT, ROD, 12MM
    BOLT, ROD, 12MM
  • 92015
    92015-1433 NUT, FLANGED, 12MM
    NUT, FLANGED, 12MM
  • 92015A
    92015-1597 NUT, LOCK, 10MM
    NUT, LOCK, 10MM
  • 92015B
    92015-1706 NUT, 12MM
    NUT, 12MM
  • 92049
    92049-1371 SEAL-OIL
    SEAL-OIL
  • 92092
    92092-005 BUSHING-RUBBER
    BUSHING-RUBBER
  • 92150
    92150-1437 BOLT, FLANGED, 12X170
    BOLT, FLANGED, 12X170
