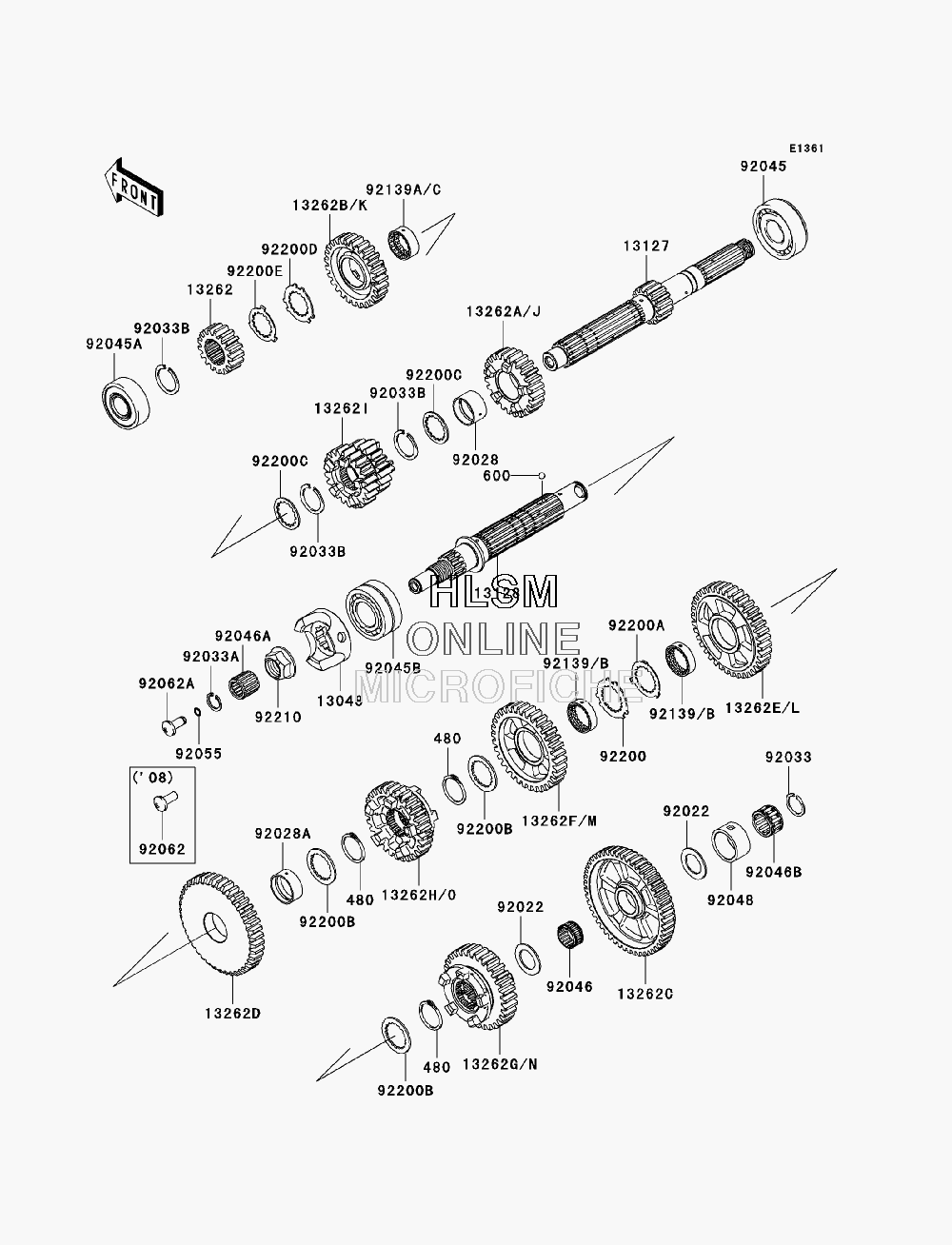

TRANSMISSION для Kawasaki CONCOURS 14 (ZG1400B9F) - 2009 года выпуска
-
№АртикулНазвание
-
1304813048-0014 CAM-DAMPERCAM-DAMPER
-
1312713127-0057 SHAFT-TRANSMISSION INPUTSHAFT-TRANSMISSION INPUT
-
1312813128-0034 SHAFT-TRANSMISSION OUTPUTSHAFT-TRANSMISSION OUTPUT
-
1326213262-0399 GEAR, INPUT 2ND, 17TGEAR, INPUT 2ND, 17T
-
13262C13262-0403 GEAR, OUTPUT LOW, 50TGEAR, OUTPUT LOW, 50T
-
13262D13262-0404 GEAR, OUTPUT 2ND, 41TGEAR, OUTPUT 2ND, 41T
-
13262I13262-0588 GEAR, INPUT 3RD & 4TH, 20T & 22TGEAR, INPUT 3RD & 4TH, 20T & 22T
-
13262J13262-0722 GEAR, INPUT 5TH, 24TGEAR, INPUT 5TH, 24T
-
13262K13262-0723 GEAR, INPUT 6TH, 27TGEAR, INPUT 6TH, 27T
-
13262L13262-0725 GEAR, OUTPUT 3RD, 38TGEAR, OUTPUT 3RD, 38T
-
13262M13262-0726 GEAR, OUTPUT 4TH, 34TGEAR, OUTPUT 4TH, 34T
-
13262N13262-0727 GEAR, OUTPUT 5TH, 31TGEAR, OUTPUT 5TH, 31T
-
13262O13262-0728 GEAR, OUTPUT 6TH, 29TGEAR, OUTPUT 6TH, 29T
-
9202292022-212 WASHER, 22.3X35X1.6WASHER, 22.3X35X1.6
-
9202892028-1935 BUSHINGBUSHING
-
92028A92028-1937 BUSHINGBUSHING
-
9203392033-025 RING-SNAP, 20X25.5X1.2RING-SNAP, 20X25.5X1.2
-
92033A92033-032 RING-SNAPRING-SNAP
-
92033B92033-1249 RING-SNAP, T=1.5RING-SNAP, T=1.5
-
9204592045-0047 BEARING-BALL, 830045-5SH2BEARING-BALL, 830045-5SH2
-
92045A92045-0048 BEARING-BALL, DG2152RDDSH2BEARING-BALL, DG2152RDDSH2
-
92045B92045-0116 BEARING-BALLBEARING-BALL
-
9204692046-0018 BEARING-NEEDLE, K22X26X13BEARING-NEEDLE, K22X26X13
-
92046A92046-1260 BEARING-NEEDLE, FWF-162222BEARING-NEEDLE, FWF-162222
-
92046B92046-1268 BEARING-NEEDLE, K22X30X16.8X2BEARING-NEEDLE, K22X30X16.8X2
-
9204892048-0004 RACERACE
-
9205592055-0171 RING-O, 6.5X1.0RING-O, 6.5X1.0
-
92062A92062-0018 NOZZLENOZZLE
-
92139B92139-0255 BUSHINGBUSHING
-
92139C92139-0256 BUSHING, INPUT 6TH, GEARBUSHING, INPUT 6TH, GEAR
-
480480J2900 CIRCLIPCIRCLIP
-
600600A0500 BALL-STEEL, 5/32"BALL-STEEL, 5/32"
-
9220092200-0255 WASHER, 27.5X43X1.5WASHER, 27.5X43X1.5
-
92200A92200-0256 WASHER, 27.5X39.7X1.0WASHER, 27.5X39.7X1.0
-
92200B92200-1277 WASHER, TOOTHED, 28X40X2WASHER, TOOTHED, 28X40X2
-
92200C92200-1340 WASHER, 25.5X35.5X1.5WASHER, 25.5X35.5X1.5
-
92200D92200-1522 WASHER, 25.8X40.5X1.5WASHER, 25.8X40.5X1.5
-
92200E92200-1523 WASHER, 25.2X37.0X1.0WASHER, 25.2X37.0X1.0
-
9221092210-0365 NUT, 20MMNUT, 20MM
