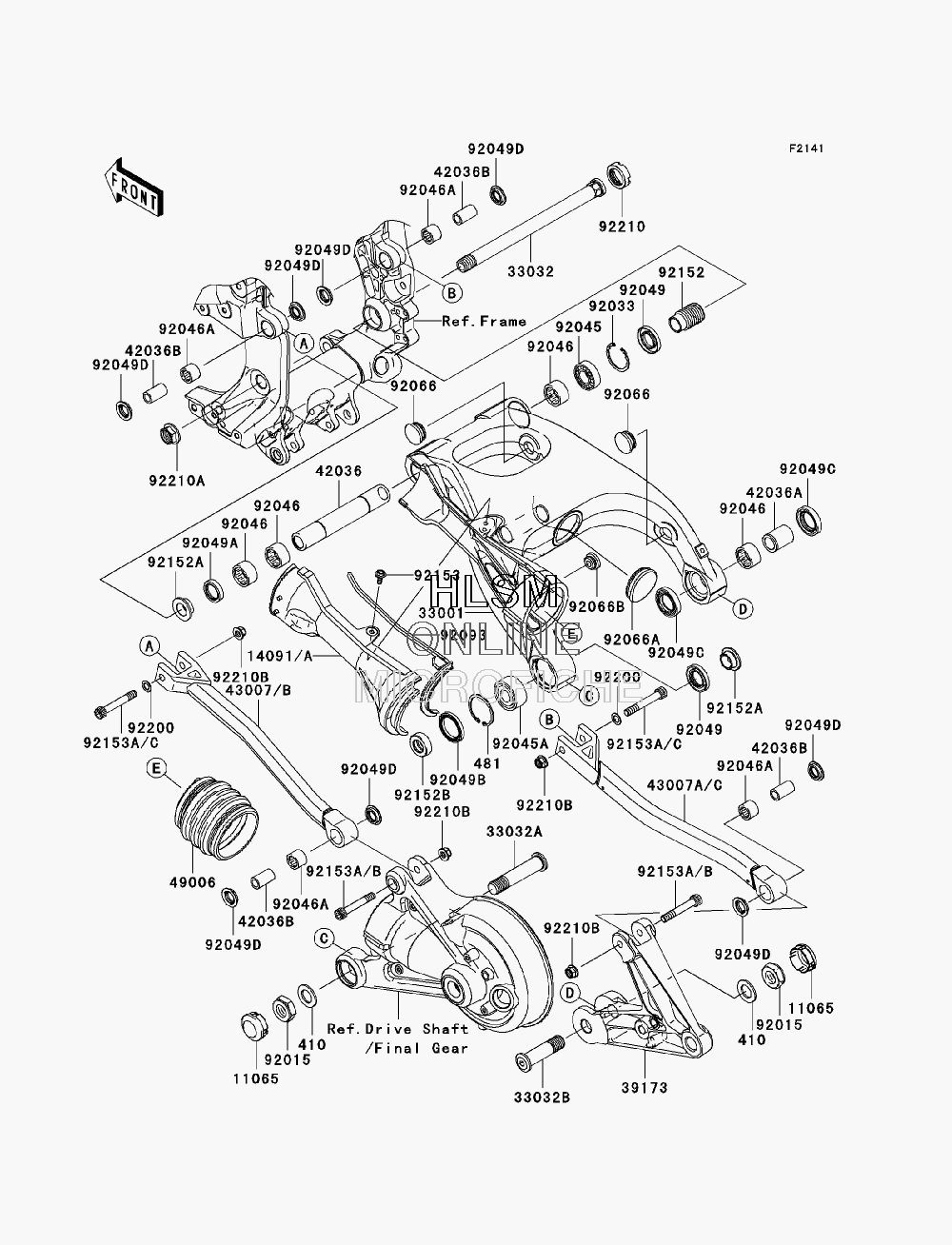

SUSPENSION - SWINGARM для Kawasaki CONCOURS 14 (ZG1400B9F) - 2009 года выпуска`
-
№АртикулНазвание
-
1106511065-0180 CAPCAP
-
14091A14091-1627 COVER, DRIVE SHAFTCOVER, DRIVE SHAFT
-
3300133001-0145-458 ARM-COMP-SWING, P. SILVERARM-COMP-SWING, P. SILVER
-
3303233032-0023 SHAFT-SWING ARM, PIVOTSHAFT-SWING ARM, PIVOT
-
33032A33032-0024 SHAFT-SWING ARM, REAR GEAR CASESHAFT-SWING ARM, REAR GEAR CASE
-
33032B33032-0025 SHAFT-SWING ARM, AXLE BRACKETSHAFT-SWING ARM, AXLE BRACKET
-
3917339173-0070-458 BRACKET-AXLE, RIGHT HAND, P. SILVERBRACKET-AXLE, RIGHT HAND, P. SILVER
-
4203642036-0042 SLEEVE, SWING ARM PIVOT, L=178SLEEVE, SWING ARM PIVOT, L=178
-
42036A42036-0044 SLEEVE, 20.15X28X36SLEEVE, 20.15X28X36
-
42036B42036-1344 SLEEVE, 10.1X18X32SLEEVE, 10.1X18X32
-
43007B43007-0012-458 ROD-TORQUE, P. SILVER (JKBZGNB1 8A006510 AND ABOVE)ROD-TORQUE, P. SILVER (JKBZGNB1 8A006510 AND ABOVE)
-
43007C43007-0013-458 ROD-TORQUE, P. SILVER (JKBZGNB1 8A006510 AND ABOVE)ROD-TORQUE, P. SILVER (JKBZGNB1 8A006510 AND ABOVE)
-
4900649006-0067 BOOT, REAR GEAR CASEBOOT, REAR GEAR CASE
-
9201592015-1770 NUT, LOCK, 20MMNUT, LOCK, 20MM
-
9203392033-1041 RING-SNAP, 42MMRING-SNAP, 42MM
-
9204592045-0017 BEARING-BALL, 6004UL11BEARING-BALL, 6004UL11
-
92045A92045-0064 BEARING-BALL, #5204BEARING-BALL, #5204
-
9204692046-0008 BEARING-NEEDLE, 7E-HVS 28X34X17BEARING-NEEDLE, 7E-HVS 28X34X17
-
92046A92046-1272 BEARING-NEEDLE, SFYZM182417BEARING-NEEDLE, SFYZM182417
-
9204992049-1314 SEAL-OIL, MHSA25 42 6SEAL-OIL, MHSA25 42 6
-
92049A92049-1352 SEAL-OIL, MHSA25X34X7SEAL-OIL, MHSA25X34X7
-
92049B92049-1381 SEAL-OIL, MHA 35X47X5SEAL-OIL, MHA 35X47X5
-
92049C92049-1386 SEAL-OILSEAL-OIL
-
92049D92049-1493 SEAL-OIL, KCR MF018N1SEAL-OIL, KCR MF018N1
-
9206692066-0084 PLUGPLUG
-
92066A92066-0090 PLUGPLUG
-
92066B92066-1320 PLUG, 17MMPLUG, 17MM
-
9209392093-0122 SEAL, DRIVE SHAFT COVERSEAL, DRIVE SHAFT COVER
-
9215292152-0362 COLLAR, SWING ARM, RIGHT HAND, L=47COLLAR, SWING ARM, RIGHT HAND, L=47
-
92152A92152-0363 COLLAR, SWING ARM, LEFT HAND, L=12.5COLLAR, SWING ARM, LEFT HAND, L=12.5
-
92152B92152-0473 COLLARCOLLAR
-
410410AA2000 WASHER-PLAIN-SMALL, 20MMWASHER-PLAIN-SMALL, 20MM
-
481481J4700 CIRCLIP-TYPE-C, 47MMCIRCLIP-TYPE-C, 47MM
-
9215392153-1587 BOLT, UPSET-WP, 6X16BOLT, UPSET-WP, 6X16
-
92153B92153-1943 BOLT, SOCKET, 10X63 (JKBZGNB1 8A006510 AND ABOVE)BOLT, SOCKET, 10X63 (JKBZGNB1 8A006510 AND ABOVE)
-
92153C92153-1944 BOLT, SOCKET, 10X67 (JKBZGNB1 8A006510 AND ABOVE)BOLT, SOCKET, 10X67 (JKBZGNB1 8A006510 AND ABOVE)
-
9220092200-0324 WASHER, 11X18X1WASHER, 11X18X1
-
9221092210-0134 NUT, 30MMNUT, 30MM
-
92210A92210-0320 NUT, FLANGED, 20MMNUT, FLANGED, 20MM
-
92210B92210-1139 NUT, LOCK, FLANGED, 10MMNUT, LOCK, FLANGED, 10MM
