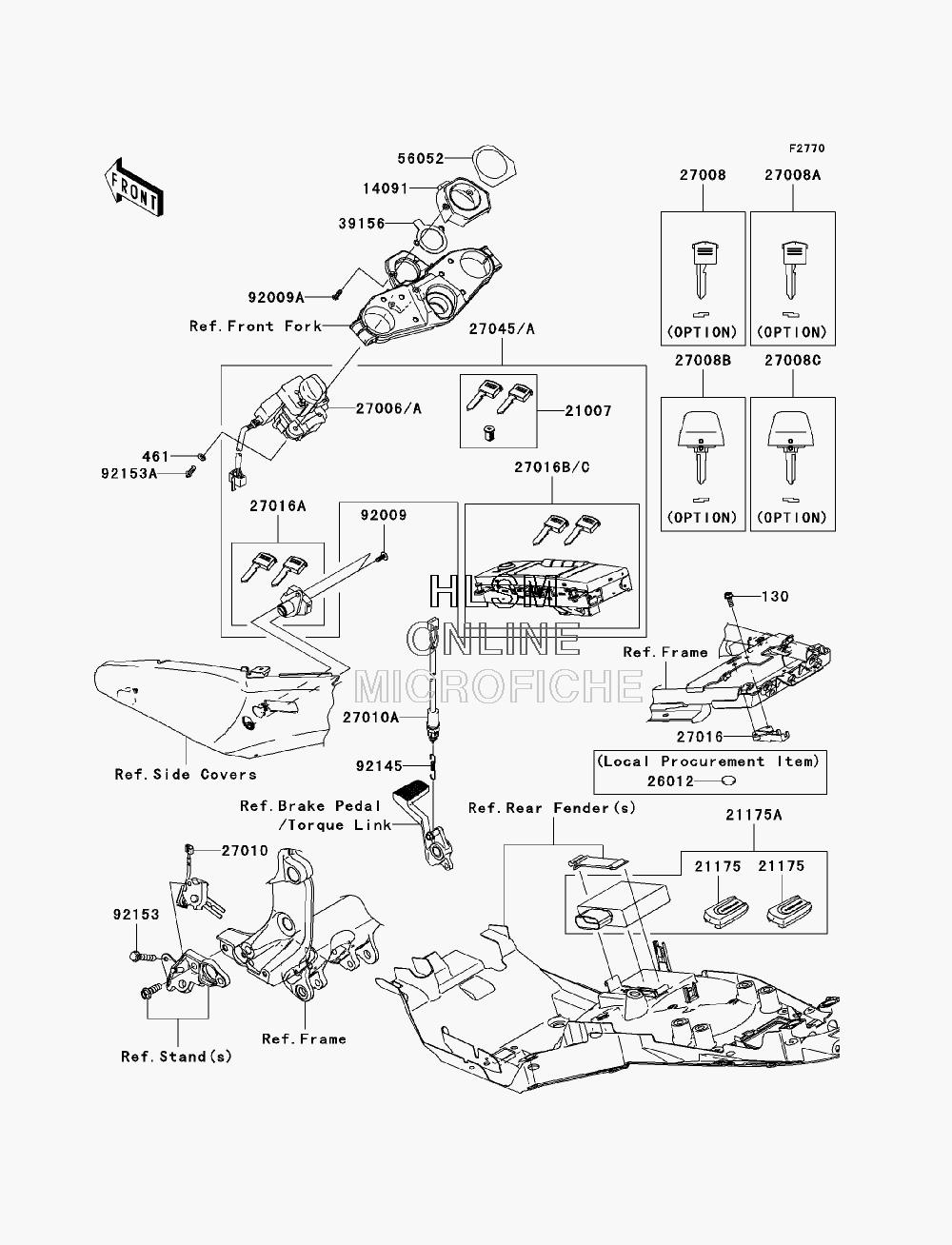

IGNITION SWITCH W/ LOCKS AND REFLECTORS для Kawasaki CONCOURS 14 (ZG1400B9F) - 2009 года выпуска`
-
№АртикулНазвание
-
130130BA0612 BOLT-FLANGED, 6X12BOLT-FLANGED, 6X12
-
461461DA0600 WASHER-SPRING, 6MMWASHER-SPRING, 6MM
-
1409114091-0659 COVER, KEY CYLINDERCOVER, KEY CYLINDER
-
2100721007-5062 ROTOR, LOCK TANK CAPROTOR, LOCK TANK CAP
-
2117521175-0181 FOB KEYFOB KEY
-
21175A21175-0183 CONTROL UNIT-ELECTRONICCONTROL UNIT-ELECTRONIC
-
27006A27006-0060 SWITCH-IGNITIONSWITCH-IGNITION
-
2700827008-0048 KEY-LOCK, BLANK, #A (OPTION)KEY-LOCK, BLANK, #A (OPTION)
-
27008A27008-0049 KEY-LOCK, BLANK, #B (OPTION)KEY-LOCK, BLANK, #B (OPTION)
-
27008B27008-0050 KEY-LOCK, BLANK, #A, MAIN SWITCH (OPTION)KEY-LOCK, BLANK, #A, MAIN SWITCH (OPTION)
-
27008C27008-0051 KEY-LOCK, BLANK, #B, MAIN SWITCH (OPTION)KEY-LOCK, BLANK, #B, MAIN SWITCH (OPTION)
-
2701027010-0064 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
27010A27010-1479 SWITCH, REAR BRAKESWITCH, REAR BRAKE
-
2701627016-1115 LOCK-ASSY, SEAT STRIKERLOCK-ASSY, SEAT STRIKER
-
27016A27016-5350 LOCK-ASSY, SEATLOCK-ASSY, SEAT
-
27016B27016-5355 LOCK-ASSY, SIDE BAG, LEFT HANDLOCK-ASSY, SIDE BAG, LEFT HAND
-
27016C27016-5356 LOCK-ASSY, SIDE BAG, RIGHT HANDLOCK-ASSY, SIDE BAG, RIGHT HAND
-
27045A27045-5395 SWITCH-ASSYSWITCH-ASSY
-
3915639156-0319 PAD, KEY CYLINDERPAD, KEY CYLINDER
-
5605256052-1946 MARK, IGNITION SWITCHMARK, IGNITION SWITCH
-
9200992009-1113 SCREW, TAPPINGSCREW, TAPPING
-
92009A92009-1264 SCREW, TAPPING, 5X16SCREW, TAPPING, 5X16
-
9214592145-0471 SPRING, REAR BRAKE SWITCHSPRING, REAR BRAKE SWITCH
-
9215392153-1425 BOLT, FLANGED, 6X30BOLT, FLANGED, 6X30
-
92153A92153-1426 BOLT, TORX, 6X16BOLT, TORX, 6X16
