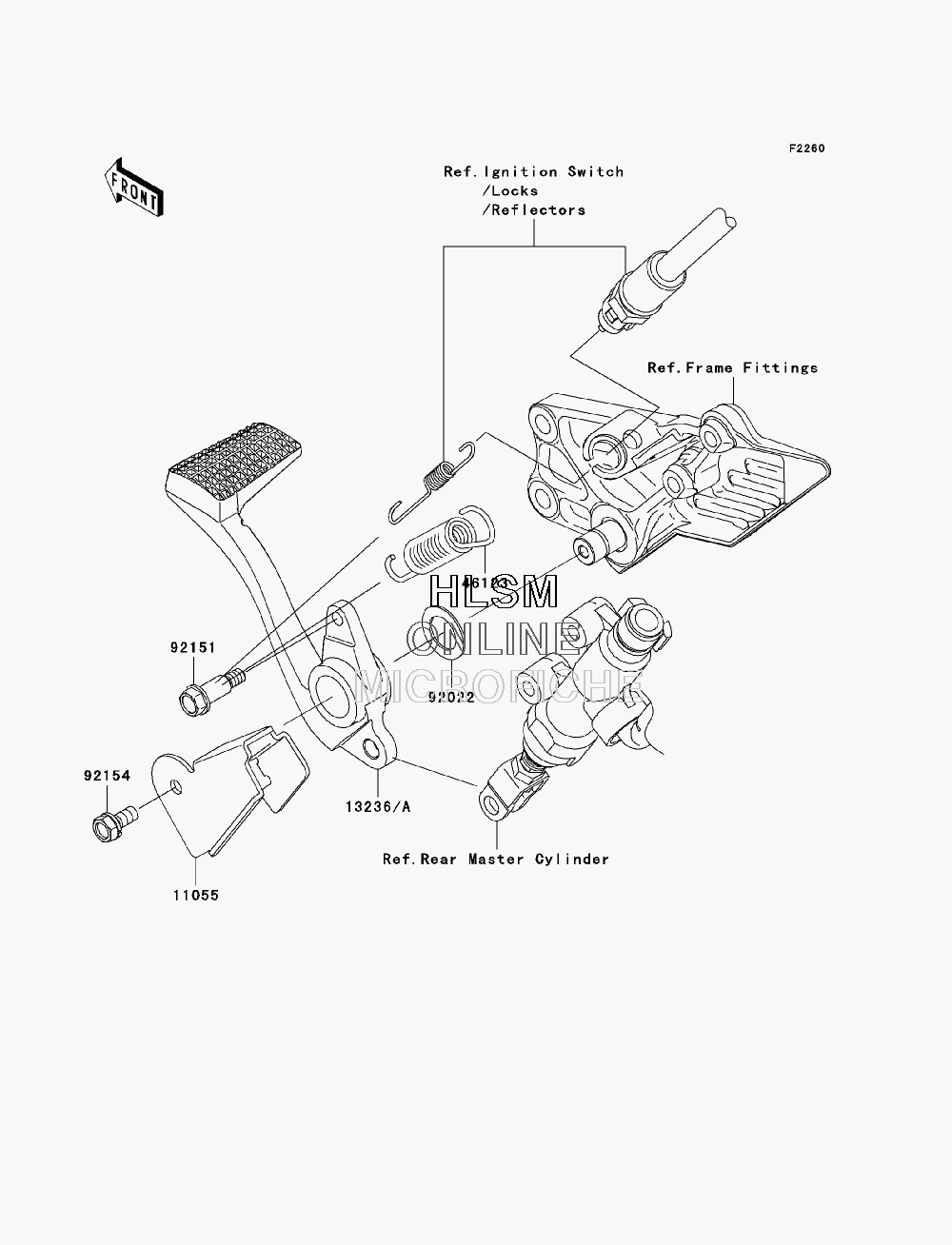

BRAKE PEDAL W/ TORQUE LINK для Kawasaki CONCOURS 14 (ZG1400B9F) - 2009 года выпуска
-
№АртикулНазвание
-
1105511055-1936 BRACKET, GUARDBRACKET, GUARD
-
13236A13236-0173 LEVER-COMP, BRAKE PEDALLEVER-COMP, BRAKE PEDAL
-
4612346123-0006 SPRING-COMP, BRAKE PEDAL RETURNSPRING-COMP, BRAKE PEDAL RETURN
-
9202292022-326 WASHER, 15.3X24X1WASHER, 15.3X24X1
-
9215192151-1295 BOLT, 6MMBOLT, 6MM
-
9215492154-0293 BOLT, UPSET-WS, 6X14BOLT, UPSET-WS, 6X14
