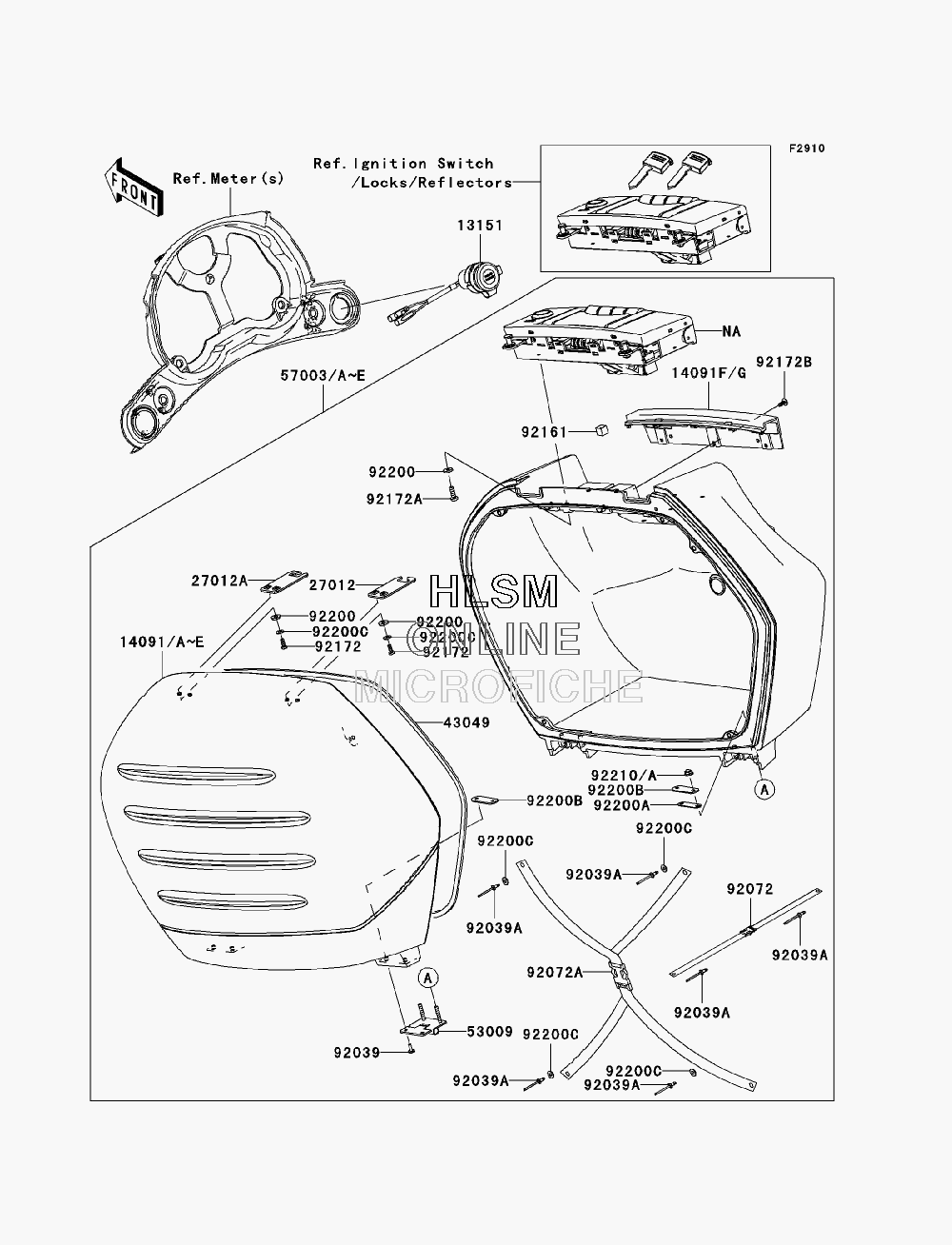

SADDLEBAGS (SIDE BAG) для Kawasaki CONCOURS 14 (ZG1400B9F) - 2009 года выпуска

  • №
    Артикул
    Название
  • 13151
    13151-0040 SWITCH-COMP
    SWITCH-COMP
  • 14091
    14091-0919-17K COVER, SIDE BAG, LEFT HAND, M. D. BLACK (FOR 17K)
    COVER, SIDE BAG, LEFT HAND, M. D. BLACK (FOR 17K)
  • 14091B
    14091-0919-25T COVER, SIDE BAG, LEFT HAND, C. D. RED (FOR 25T)
    COVER, SIDE BAG, LEFT HAND, C. D. RED (FOR 25T)
  • 14091C
    14091-0920-17K COVER, SIDE BAG, RIGHT HAND, M. D. BLACK (FOR 17K)
    COVER, SIDE BAG, RIGHT HAND, M. D. BLACK (FOR 17K)
  • 14091E
    14091-0920-25T COVER, SIDE BAG, RIGHT HAND, C. D. RED (FOR 25T)
    COVER, SIDE BAG, RIGHT HAND, C. D. RED (FOR 25T)
  • 14091G
    14091-1688 COVER, SIDE BAG, LID
    COVER, SIDE BAG, LID
  • 27012
    27012-0110 HOOK
    HOOK
  • 27012A
    27012-0111 HOOK
    HOOK
  • 43049
    43049-0010 PACKING
    PACKING
  • 53009
    53009-0020 HINGE
    HINGE
  • 57003A
    57003-0034-18P BAG-ASSY, LEFT HAND, BODY BLK + COVER BLK (FOR 17K)
    BAG-ASSY, LEFT HAND, BODY BLK + COVER BLK (FOR 17K)
  • 57003B
    57003-0034-26A BAG-ASSY, LEFT HAND, BODY BLK + COVER RED (FOR 25T)
    BAG-ASSY, LEFT HAND, BODY BLK + COVER RED (FOR 25T)
  • 57003D
    57003-0035-18P BAG-ASSY, RIGHT HAND, BODY BLK + COVER BLK (FOR 17K)
    BAG-ASSY, RIGHT HAND, BODY BLK + COVER BLK (FOR 17K)
  • 57003E
    57003-0035-26A BAG-ASSY, RIGHT HAND, BODY BLK + COVER RED (FOR 25T)
    BAG-ASSY, RIGHT HAND, BODY BLK + COVER RED (FOR 25T)
  • 92039
    92039-0063 RIVET
    RIVET
  • 92039A
    92039-0072 RIVET
    RIVET
  • 92072
    92072-0082 BAND
    BAND
  • 92072A
    92072-1368 BAND
    BAND
  • 92161
    92161-0573 DAMPER
    DAMPER
  • 92172
    92172-0303 SCREW, 4X12
    SCREW, 4X12
  • 92172A
    92172-0304 SCREW, 5X15
    SCREW, 5X15
  • 92172B
    92172-0306 SCREW, 4X8
    SCREW, 4X8
  • 92200
    92200-0373 WASHER, 5MM
    WASHER, 5MM
  • 92200A
    92200-0374 WASHER
    WASHER
  • 92200B
    92200-0375 WASHER
    WASHER
  • 92200C
    92200-0416 WASHER
    WASHER
  • 92210A
    92210-0434 NUT, CAP, 4MM
    NUT, CAP, 4MM
