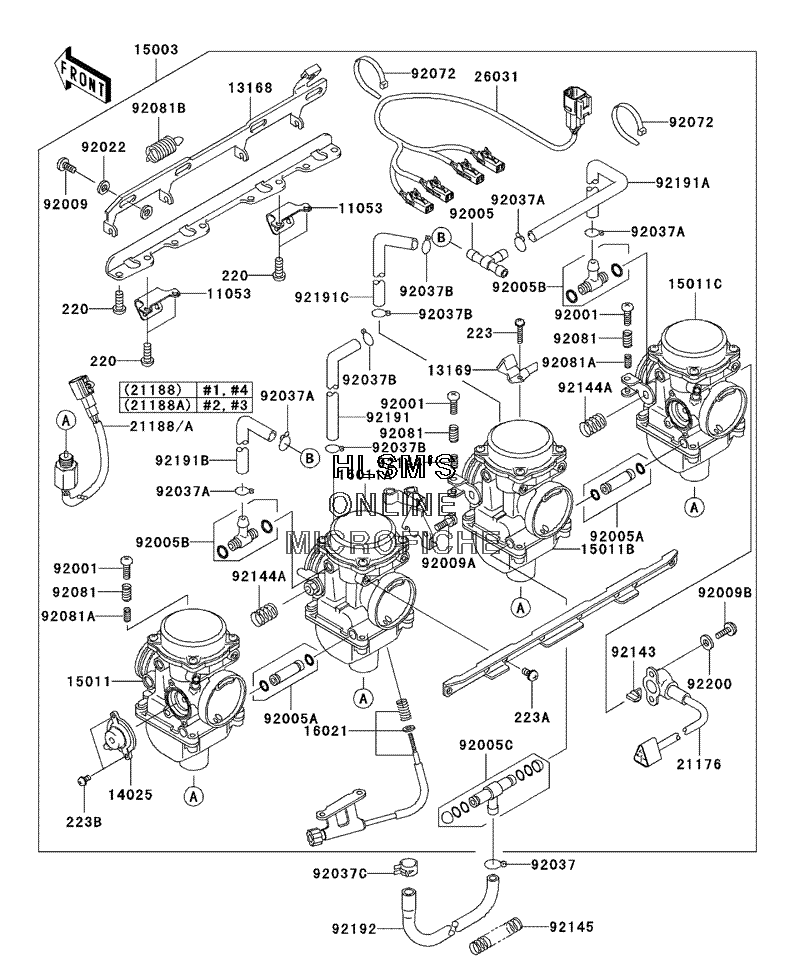

CARBURETOR (CALIF. ONLY) для Kawasaki ZRX1200 - 2005 года выпуска`
-
№АртикулНазвание
-
1105311053-1406 BRACKETBRACKET
-
1316813168-1245 LEVER, STARTERLEVER, STARTER
-
1316913169-1871 PLATE, STARTER CABLEPLATE, STARTER CABLE
-
1402514025-1903 COVER, AIR CUT VALVECOVER, AIR CUT VALVE
-
1500315003-0037 CARBURETOR, ASSYCARBURETOR, ASSY
-
1501115011-0062 CARBURETOR (LEFT/OUTSIDE)CARBURETOR (LEFT/OUTSIDE)
-
15011A15011-0063 CARBURETOR (LEFT/INSIDE)CARBURETOR (LEFT/INSIDE)
-
15011B15011-0064 CARBURETOR (RIGHT/INSIDE)CARBURETOR (RIGHT/INSIDE)
-
15011C15011-0065 CARBURETOR (RIGHT/OUTSIDE)CARBURETOR (RIGHT/OUTSIDE)
-
1602116021-1172 SCREW, THROTTLE STOPSCREW, THROTTLE STOP
-
2117621176-1073 SENSOR, THROTTLESENSOR, THROTTLE
-
2118821188-1006 SOLENOID, #1 & #4, FUEL CUT VALVESOLENOID, #1 & #4, FUEL CUT VALVE
-
21188A21188-1007 SOLENOID, #2 & #3, FUEL CUT VALVESOLENOID, #2 & #3, FUEL CUT VALVE
-
2603126031-0206 HARNESSHARNESS
-
9200192001-1998 BOLT, THROTTLE ADJUSTBOLT, THROTTLE ADJUST
-
9200592005-1119 FITTING, T, TYPEFITTING, T, TYPE
-
92005A92005-1310 FITTINGFITTING
-
92005B92005-1314 FITTINGFITTING
-
92005C92005-1392 FITTING, FUELFITTING, FUEL
-
9200992009-1262 SCREWSCREW
-
92009A92009-1365 SCREW, 5X10SCREW, 5X10
-
92009B92009-1781 SCREWSCREW
-
220220B0616 SCREW, PAN, CROS, 6X16SCREW, PAN, CROS, 6X16
-
223223C0420 SCREW, PAN, WS, CROSSCREW, PAN, WS, CROS
-
223A223C0510 SCREW, PAN, WS, CROSSCREW, PAN, WS, CROS
-
9202292022-1199 WASHER, 6.1X11X0.8, POLYACETALWASHER, 6.1X11X0.8, POLYACETAL
-
9203792037-1104 CLAMP, HOSECLAMP, HOSE
-
92037A92037-1185 CLAMP, FUEL TAP HOSECLAMP, FUEL TAP HOSE
-
92037B92037-1201 CLAMP, TUBECLAMP, TUBE
-
92037C92037-2082 CLAMPCLAMP
-
9207292072-0012 BAND, SUB, HARNESSBAND, SUB, HARNESS
-
9208192081-1620 SPRINGSPRING
-
92081A92081-1621 SPRING, THROTTLE ADJUST LOWERSPRING, THROTTLE ADJUST LOWER
-
92081B92081-1762 SPRING, STARTER LEVERSPRING, STARTER LEVER
-
9214392143-1907 COLLARCOLLAR
-
9214492144-1451 SPRINGSPRING
-
92144A92144-1986 SPRING, THROTTLE ADJUST CENTERSPRING, THROTTLE ADJUST CENTER
-
9214592145-0227 SPRING, FUEL TUBESPRING, FUEL TUBE
-
9219192191-1017 TUBETUBE
-
92191A92191-1680 TUBE, 7X11X187TUBE, 7X11X187
-
92191B92191-1681 TUBE, 7X11X54TUBE, 7X11X54
-
92191C92191-1682 TUBE, 4.5X8X110TUBE, 4.5X8X110
-
9219292192-0148 TUBE, FUELTUBE, FUEL
-
9220092200-1369 WASHERWASHER
-
223B223D0408 SCREW, PAN, WS, CROSSCREW, PAN, WS, CROS
