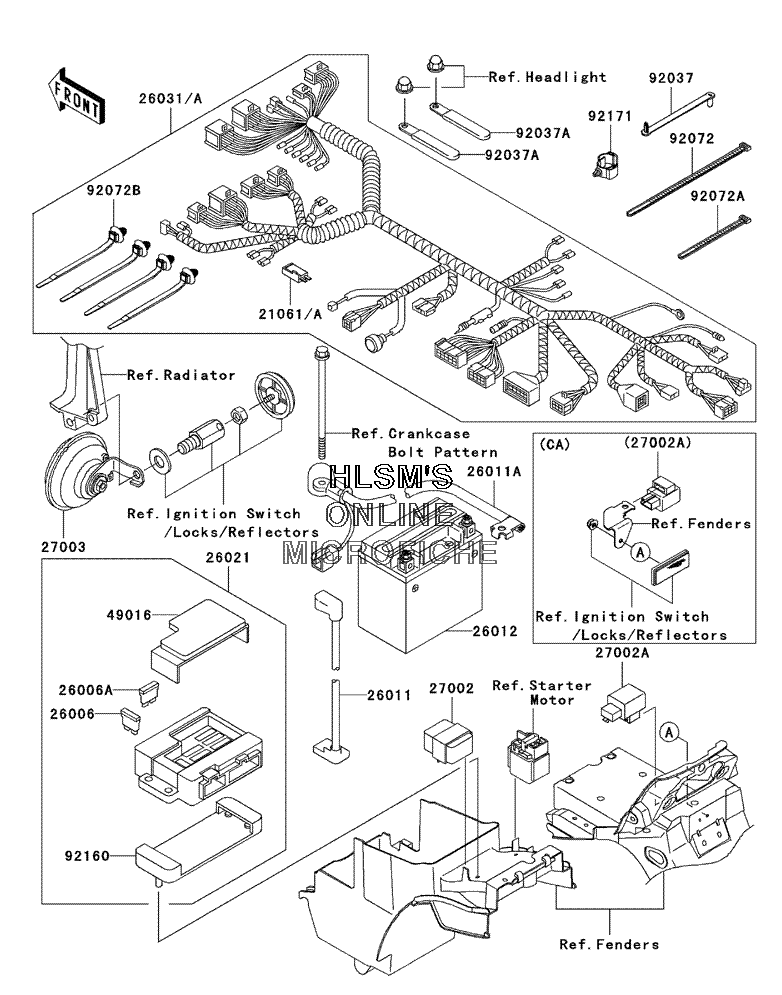

CHASSIS ELECTRICAL EQUIPMENT для Kawasaki ZRX1200 - 2005 года выпуска

  • №
    Артикул
    Название
  • 21061
    21061-0001 RECTIFIER (CALIF. ONLY)
    RECTIFIER (CALIF. ONLY)
  • 21061A
    21061-1059 RECTIFIER (EXCEPT CALIF.)
    RECTIFIER (EXCEPT CALIF.)
  • 26006
    26006-1067 FUSE, 30A, G
    FUSE, 30A, G
  • 26006A
    26006-1068 FUSE, 10A, R
    FUSE, 10A, R
  • 26011
    26011-1792 WIRE, LEAD, BATTERY (+)
    WIRE, LEAD, BATTERY (+)
  • 26011A
    26011-1793 WIRE, LEAD, BATTERY (-)
    WIRE, LEAD, BATTERY (-)
  • 26012
    26012-0047 BATTERY, FTX14, BS, 12V 12AH
    BATTERY, FTX14, BS, 12V 12AH
  • 26021
    26021-1096 JUNCTION BOX
    JUNCTION BOX
  • 26031
    26031-0005 HARNESS, MAIN (EXCEPT CALIF.)
    HARNESS, MAIN (EXCEPT CALIF.)
  • 26031A
    26031-0232 HARNESS, MAIN (CALIF. ONLY)
    HARNESS, MAIN (CALIF. ONLY)
  • 27002
    27002-1078 RELAY, ASSY, HEAD LAMP
    RELAY, ASSY, HEAD LAMP
  • 27002A
    27002-1101 RELAY, ASSY, TURN SIGNAL
    RELAY, ASSY, TURN SIGNAL
  • 27003
    27003-1424 HORN (RIGHT)
    HORN (RIGHT)
  • 49016
    49016-1177 COVER, SEAL, FUSE
    COVER, SEAL, FUSE
  • 92037
    92037-1163 CLAMP, SPEED, L=58
    CLAMP, SPEED, L=58
  • 92037A
    92037-1993 CLAMP
    CLAMP
  • 92072
    92072-1237 BAND, L=250
    BAND, L=250
  • 92072A
    92072-1293 BAND, L=140
    BAND, L=140
  • 92072B
    92072-1414 BAND
    BAND
  • 92160
    92160-1650 DAMPER, JUNCTION BOX
    DAMPER, JUNCTION BOX
  • 92171
    92171-1415 CLAMP, DIA=13
    CLAMP, DIA=13
