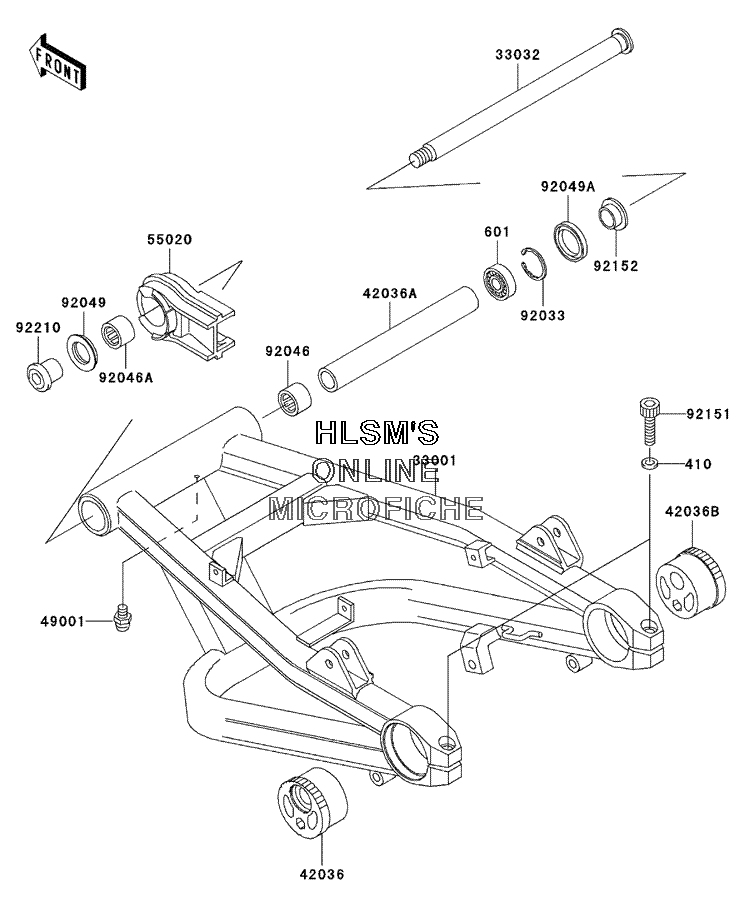

SUSPENSION - SWINGARM для Kawasaki ZRX1200 - 2005 года выпуска

  • №
    Артикул
    Название
  • 410
    410E1000 W, PLAIN, S
    W, PLAIN, S
  • 601
    601A6004 BEARING, BALL, #6004
    BEARING, BALL, #6004
  • 33001
    33001-0026 ARM, COMP, SWING
    ARM, COMP, SWING
  • 33032
    33032-1182 SHAFT, SWING ARM
    SHAFT, SWING ARM
  • 42036
    42036-1153-ES SLEEVE, REAR AXLE (LEFT) (A.GOLD)
    SLEEVE, REAR AXLE (LEFT) (A.GOLD)
  • 42036A
    42036-1259 SLEEVE, SWING ARM, L=213.5
    SLEEVE, SWING ARM, L=213.5
  • 42036B
    42036-1265-ES SLEEVE, REAR AXLE (RIGHT) (A.GOLD)
    SLEEVE, REAR AXLE (RIGHT) (A.GOLD)
  • 49001
    49001-0001 NIPPLE, GREASE
    NIPPLE, GREASE
  • 55020
    55020-1742 GUARD, CHAIN
    GUARD, CHAIN
  • 92033
    92033-1041 RING, SNAP, 42MM
    RING, SNAP, 42MM
  • 92046
    92046-1111 BEARING, NEEDLE, BM2817
    BEARING, NEEDLE, BM2817
  • 92046A
    92046-1202 BEARING, NEEDLE, BM2824
    BEARING, NEEDLE, BM2824
  • 92049
    92049-1181 SEAL, OIL
    SEAL, OIL
  • 92049A
    92049-1314 SEAL, OIL, MHSA25 42 6
    SEAL, OIL, MHSA25 42 6
  • 92151
    92151-1899 BOLT, SOCKET, 10X40
    BOLT, SOCKET, 10X40
  • 92152
    92152-1234 COLLAR, SWING ARM, L=12.5
    COLLAR, SWING ARM, L=12.5
  • 92210
    92210-1077 NUT, PIVOT, 16MM
    NUT, PIVOT, 16MM
