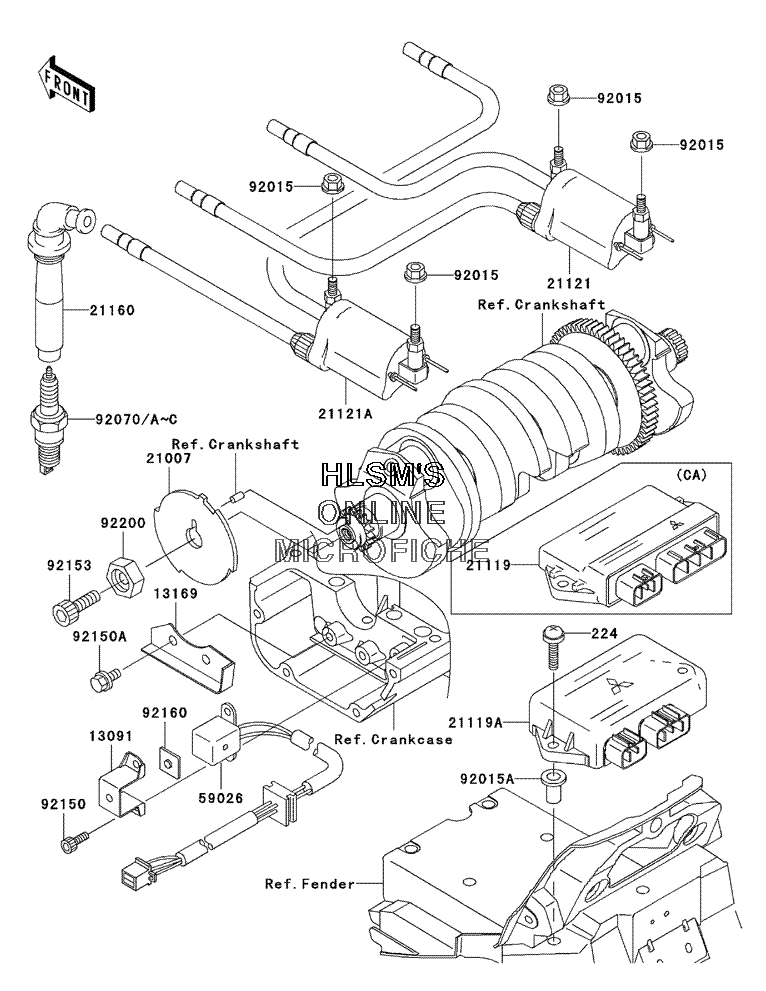

IGNITION SYSTEM для Kawasaki ZRX1200 - 2005 года выпуска

  • №
    Артикул
    Название
  • 224
    224C0625 SCREW, PAN, WP, CROS
    SCREW, PAN, WP, CROS
  • 13091
    13091-1562 HOLDER
    HOLDER
  • 13169
    13169-1748 PLATE, CHAIN GUIDE
    PLATE, CHAIN GUIDE
  • 21007
    21007-1277 ROTOR, PULSING
    ROTOR, PULSING
  • 21119
    21119-0029 IGNITER (CALIF. ONLY)
    IGNITER (CALIF. ONLY)
  • 21119A
    21119-1585 IGNITER (EXCEPT CALIF.)
    IGNITER (EXCEPT CALIF.)
  • 21121
    21121-1268 COIL, IGNITION, #2 AND #3
    COIL, IGNITION, #2 AND #3
  • 21121A
    21121-1300 COIL, IGNITION
    COIL, IGNITION
  • 21160
    21160-1098 CAP, ASSY, PLUG
    CAP, ASSY, PLUG
  • 59026
    59026-1132 COIL, PULSING
    COIL, PULSING
  • 92015
    92015-1193 NUT, FLANGED, 6MM
    NUT, FLANGED, 6MM
  • 92015A
    92015-1700 NUT PLUG, SPARK, U27ETR (ND)
    NUT PLUG, SPARK, U27ETR (ND)
  • 92070B
    92070-1264 PLUG, SPARK, CR9EK (NGK)
    PLUG, SPARK, CR9EK (NGK)
  • 92070C
    92070-1265 PLUG, SPARK, CR8EK (NGK) (OPT)
    PLUG, SPARK, CR8EK (NGK) (OPT)
  • 92150
    92150-1180 BOLT, SOCKET, 5X14
    BOLT, SOCKET, 5X14
  • 92150A
    92150-1841 BOLT, 6X12
    BOLT, 6X12
  • 92153
    92153-1191 BOLT, M8X25
    BOLT, M8X25
  • 92160
    92160-1091 DAMPER
    DAMPER
  • 92200
    92200-1173 WASHER, ROTOR
    WASHER, ROTOR
