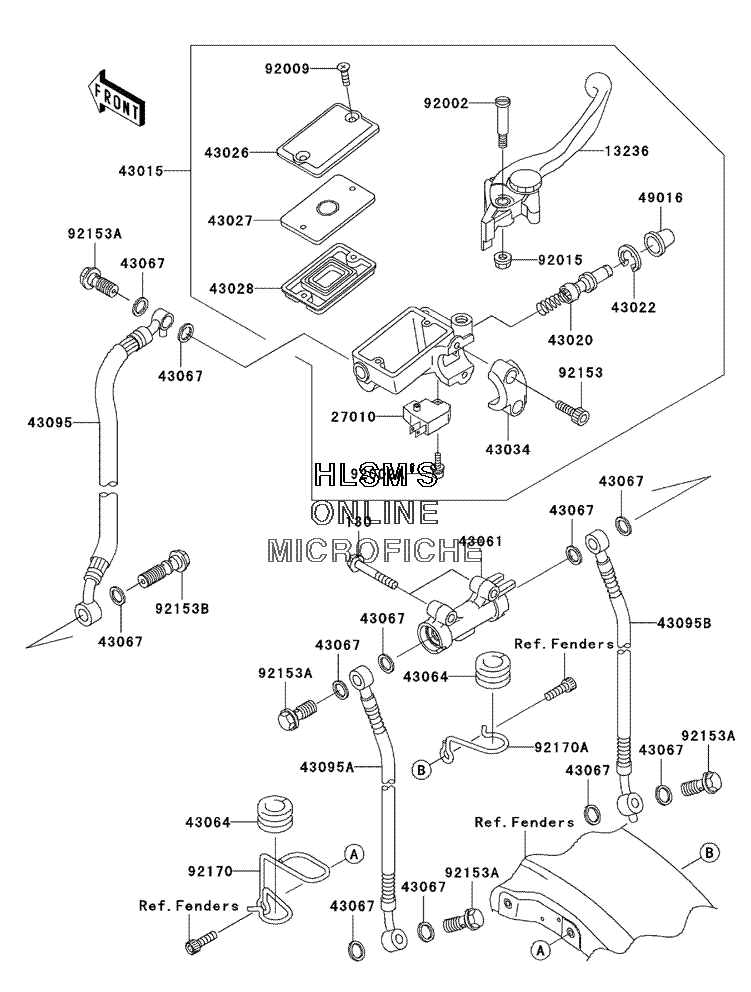

BRAKE - MASTER CYLINDER - FRONT для Kawasaki ZRX1200 - 2005 года выпуска

  • №
    Артикул
    Название
  • 130
    130J0640 BOLT, FLANGED, 6X40 (BLACK)
    BOLT, FLANGED, 6X40 (BLACK)
  • 13236
    13236-1337 LEVER, COMP, FRONT BRAKE
    LEVER, COMP, FRONT BRAKE
  • 27010
    27010-0025 SWITCH, BRAKE
    SWITCH, BRAKE
  • 43015
    43015-0011 CYLINDER, ASSY, MASTER, FRONT
    CYLINDER, ASSY, MASTER, FRONT
  • 43020
    43020-1054 PISTON, COMP, BRAKE, FRONT
    PISTON, COMP, BRAKE, FRONT
  • 43022
    43022-1010 STOPPER, BRAKE, PISTON
    STOPPER, BRAKE, PISTON
  • 43026
    43026-1076 CAP, BRAKE
    CAP, BRAKE
  • 43027
    43027-1055 PLATE, DIAPHRAGM
    PLATE, DIAPHRAGM
  • 43028
    43028-1058 DIAPHRAGM, MASTER CYLINDER
    DIAPHRAGM, MASTER CYLINDER
  • 43034
    43034-1053 HOLDER, BRAKE, MASTER CYLINDER
    HOLDER, BRAKE, MASTER CYLINDER
  • 43061
    43061-1002 JOINT, BRAKE
    JOINT, BRAKE
  • 43064
    43064-007 GROMMET, HOSE CLAMP
    GROMMET, HOSE CLAMP
  • 43067
    43067-001 WASHER, 10.5X15X1.5
    WASHER, 10.5X15X1.5
  • 43095
    43095-0006 HOSE, BRAKE, FRONT (UPPER)
    HOSE, BRAKE, FRONT (UPPER)
  • 43095A
    43095-0048 HOSE, BRAKE, FRONT (LOWER) (LEFT)
    HOSE, BRAKE, FRONT (LOWER) (LEFT)
  • 43095B
    43095-0049 HOSE, BRAKE, FRONT (LOWER) (RIGHT)
    HOSE, BRAKE, FRONT (LOWER) (RIGHT)
  • 49016
    49016-1044 COVER, SEAL, MASTER CYLINDER
    COVER, SEAL, MASTER CYLINDER
  • 92002
    92002-1322 BOLT, LEVER SET (BLACK)
    BOLT, LEVER SET (BLACK)
  • 92002A
    92002-1323 BOLT, SCREW, 4X12
    BOLT, SCREW, 4X12
  • 92009
    92009-1458 SCREW, 4MM
    SCREW, 4MM
  • 92015
    92015-1233 NUT, FLANGED, 6MM (BLACK)
    NUT, FLANGED, 6MM (BLACK)
  • 92153
    92153-0417 BOLT, SOCKET, 6X20
    BOLT, SOCKET, 6X20
  • 92153A
    92153-0627 BOLT, OIL, L=23
    BOLT, OIL, L=23
  • 92153B
    92153-0628 BOLT, OIL, L=37
    BOLT, OIL, L=37
  • 92170
    92170-1737 CLAMP, HOSE
    CLAMP, HOSE
  • 92170A
    92170-1738 CLAMP, HOSE
    CLAMP, HOSE
