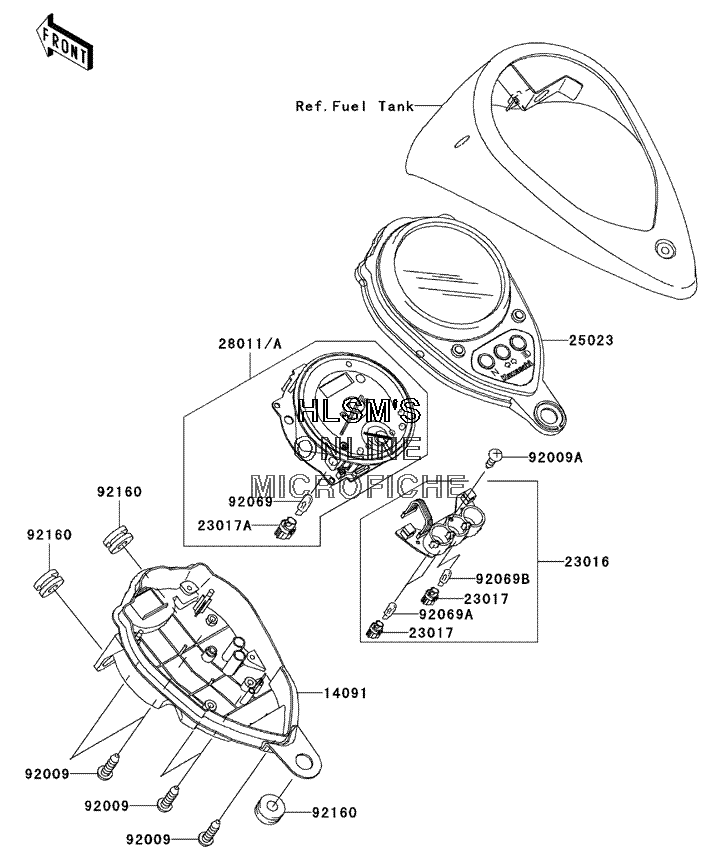

METER(S) для Kawasaki Vulcan 1500 Classic - 2005 года выпуска
-
№АртикулНазвание
-
1409114091-1215 COVER, METER, LOWERCOVER, METER, LOWER
-
2301623016-1186 LAMP, ASSY.LAMP, ASSY.
-
2301723017-1063 SOCKET, WEDGE BASE, T, 5SOCKET, WEDGE BASE, T, 5
-
23017A23017-1064 SOCKETSOCKET
-
2502325023-1255 COVER, METER CASE, UPPERCOVER, METER CASE, UPPER
-
2801128011-1230 METER, SPEED AND TACHO, KPH (CANADA ONLY)METER, SPEED AND TACHO, KPH (CANADA ONLY)
-
28011A28011-1240 METER, SPEED AND FUEL, MPH (US ONLY)METER, SPEED AND FUEL, MPH (US ONLY)
-
9200992009-1163 SCREW, TAPPING, 4X16SCREW, TAPPING, 4X16
-
92009A92009-1503 SCREW, TAPPING, 4X14SCREW, TAPPING, 4X14
-
9206992069-1068 BULB, 12V 3W, T6.5BULB, 12V 3W, T6.5
-
92069A92069-1105 BULB, 12V 2W, T5BULB, 12V 2W, T5
-
92069B92069-1117 BULB, 12V 1.4W, T5BULB, 12V 1.4W, T5
-
9216092160-1162 DAMPERDAMPER
