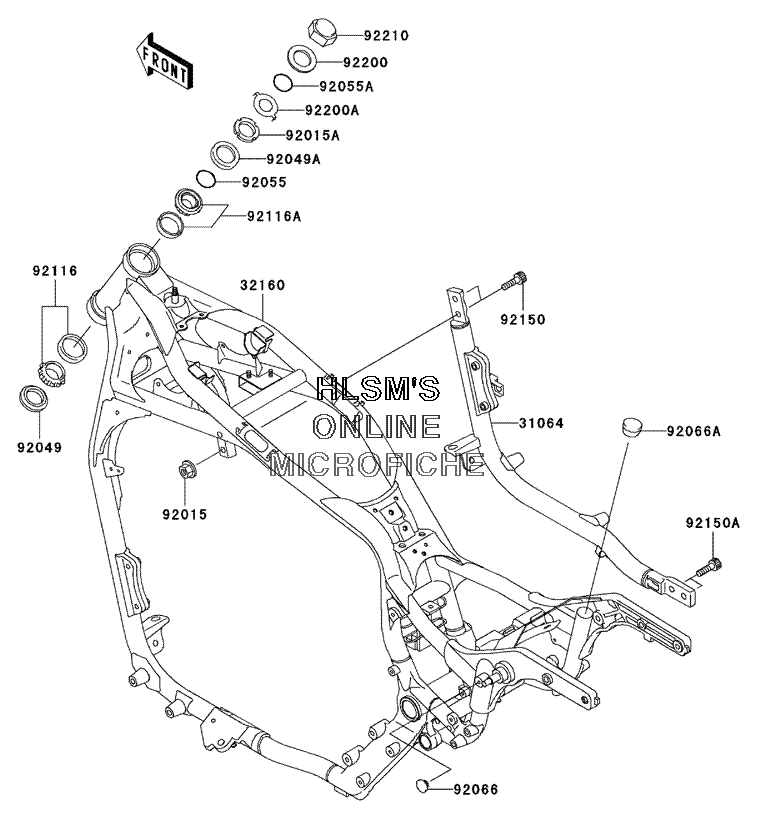

FRAME для Kawasaki Vulcan 1500 Classic - 2005 года выпуска

  • №
    Артикул
    Название
  • 31064
    31064-1237 PIPE, COMP, DOWNTUBU (RIGHT)
    PIPE, COMP, DOWNTUBU (RIGHT)
  • 32160
    32160-1679 FRAME, COMP
    FRAME, COMP
  • 92015
    92015-1727 NUT, FLANGED, 10MM
    NUT, FLANGED, 10MM
  • 92015A
    92015-1848 NUT, STEERING STEM, 35MM
    NUT, STEERING STEM, 35MM
  • 92049
    92049-1383 SEAL, OIL, XMHE 43 55 4J
    SEAL, OIL, XMHE 43 55 4J
  • 92049A
    92049-1483 SEAL, OIL, MX043N2
    SEAL, OIL, MX043N2
  • 92055
    92055-1452 O-RING, 34.5X2.0
    O-RING, 34.5X2.0
  • 92055A
    92055-1459 O-RING, ID=24.5
    O-RING, ID=24.5
  • 92066
    92066-1077 PLUG, 9.5X8, POLYETHYLENE
    PLUG, 9.5X8, POLYETHYLENE
  • 92066A
    92066-1444 PLUG
    PLUG
  • 92116
    92116-1072 BEARING, ROLLER, 32907JR, 2
    BEARING, ROLLER, 32907JR, 2
  • 92116A
    92116-1074 BEARING, ROLLER, 32907JR, 3
    BEARING, ROLLER, 32907JR, 3
  • 92150
    92150-1690 BOLT, SOCKET, 10X30
    BOLT, SOCKET, 10X30
  • 92150A
    92150-1942 BOLT, SOCKET, 10X23
    BOLT, SOCKET, 10X23
  • 92200
    92200-0105 WASHER, 25.5X42X2.3
    WASHER, 25.5X42X2.3
  • 92200A
    92200-1083 WASHER, CLAW, 25.5X40X2.3
    WASHER, CLAW, 25.5X40X2.3
  • 92210
    92210-1166 NUT, CAP, 25MM
    NUT, CAP, 25MM
