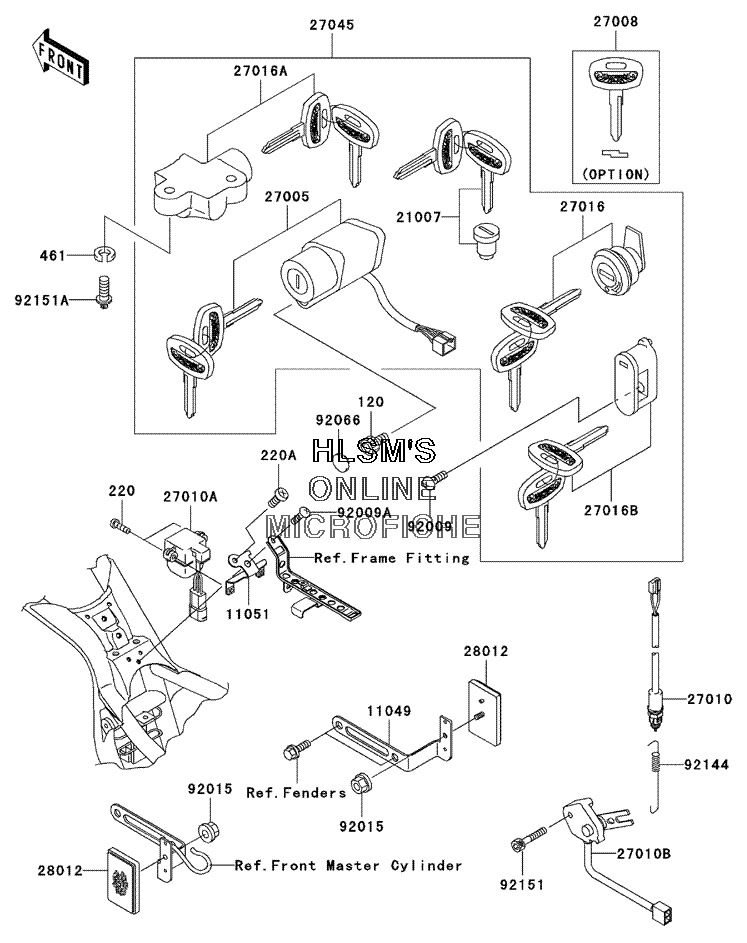

IGNITION SWITCH W/ LOCKS AND REFLECTORS для Kawasaki Vulcan 1500 Classic - 2005 года выпуска`
-
№АртикулНазвание
-
120120P0512 BOLT, SOCKETBOLT, SOCKET
-
220220C0420 SCREW, PAN, CROS, 4X20SCREW, PAN, CROS, 4X20
-
220A220C0612 SCREW, PAN, CROS, 6X12SCREW, PAN, CROS, 6X12
-
461461L0600 WASHER, SPRINGWASHER, SPRING
-
1104911049-1820 BRACKETBRACKET
-
1105111051-1763 BRACKET, DOWN SENSORBRACKET, DOWN SENSOR
-
2100721007-5047 ROTOR, LOCK, TANK CAPROTOR, LOCK, TANK CAP
-
2700527005-1256 SWITCH, ASSY., IGNITIONSWITCH, ASSY., IGNITION
-
2700827008-1208 KEY, LOCK, BLANK (OPT)KEY, LOCK, BLANK (OPT)
-
2701027010-1412 SWITCH, REAR BRAKESWITCH, REAR BRAKE
-
27010A27010-1416 SWITCH, DOWN SENSORSWITCH, DOWN SENSOR
-
27010B27010-1464 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
2701627016-5267 LOCK, ASSY., LIDLOCK, ASSY., LID
-
27016A27016-5269 LOCK, ASSY., STEERINGLOCK, ASSY., STEERING
-
27016B27016-5316 LOCK, ASSY., HELMETLOCK, ASSY., HELMET
-
2704527045-5245 SWITCH, ASSY.SWITCH, ASSY.
-
2801228012-1009 REFLECTOR, REFLEX, FRONTREFLECTOR, REFLEX, FRONT
-
9200992009-1296 SCREW, 5X12SCREW, 5X12
-
92009A92009-1621 SCREW, 6X16SCREW, 6X16
-
9201592015-1656 NUT, FLANGED, 5MMNUT, FLANGED, 5MM
-
9206692066-1435 PLUGPLUG
-
9214492144-1141 SPRING, REAR BRAKE SWITCHSPRING, REAR BRAKE SWITCH
-
9215192151-1390 BOLT, SOCKET, 6X35BOLT, SOCKET, 6X35
-
92151A92151-1946 BOLT, TORX, 6X22BOLT, TORX, 6X22
