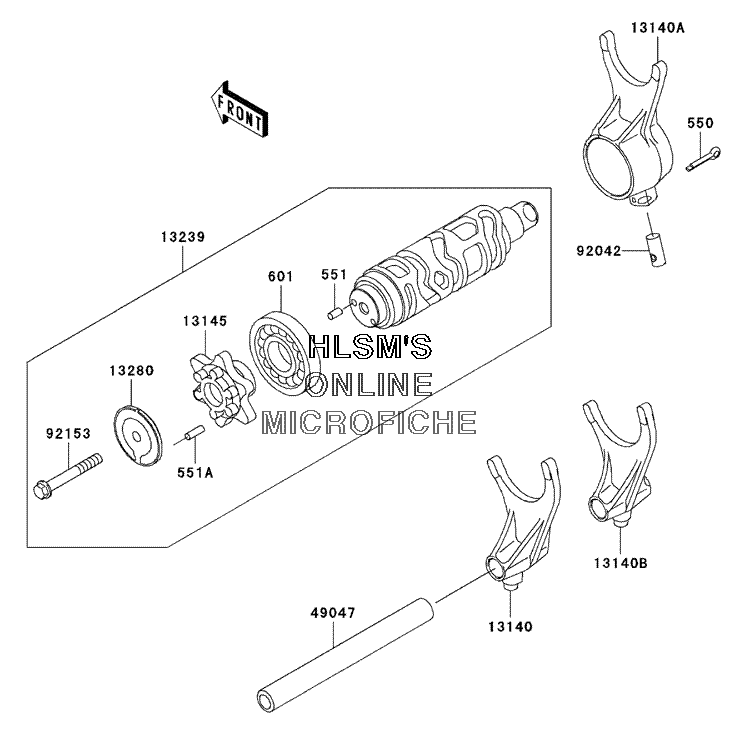

GEAR CHANGE DRUM W/ SHIFT FORK(S) для Kawasaki Vulcan 1500 Classic - 2005 года выпуска`
-
№АртикулНазвание
-
550550D3020 PIN, COTTER, 3.0X20PIN, COTTER, 3.0X20
-
551551A0408 PIN, DOWEL, 4X8PIN, DOWEL, 4X8
-
551A551A0412 PIN, DOWELPIN, DOWEL
-
601601A6005 BEARING, BALLBEARING, BALL
-
1314013140-1270 FORK, SHIFT, OUTPUT TOPFORK, SHIFT, OUTPUT TOP
-
13140A13140-1292 FORK, SHIFT, INPUT 3RDFORK, SHIFT, INPUT 3RD
-
13140B13140-1293 FORK, SHIFT, OUTPUT 4THFORK, SHIFT, OUTPUT 4TH
-
1314513145-1089 CAM, CHANGE DRUMCAM, CHANGE DRUM
-
1323913239-1214 DRUM, ASSY., CHANGEDRUM, ASSY., CHANGE
-
1328013280-1300 HOLDERHOLDER
-
4904749047-1095 ROD, SHIFTROD, SHIFT
-
9204292042-021 PIN, DOWEL, 8X18PIN, DOWEL, 8X18
-
9215392153-1281 BOLT, 6X45BOLT, 6X45
