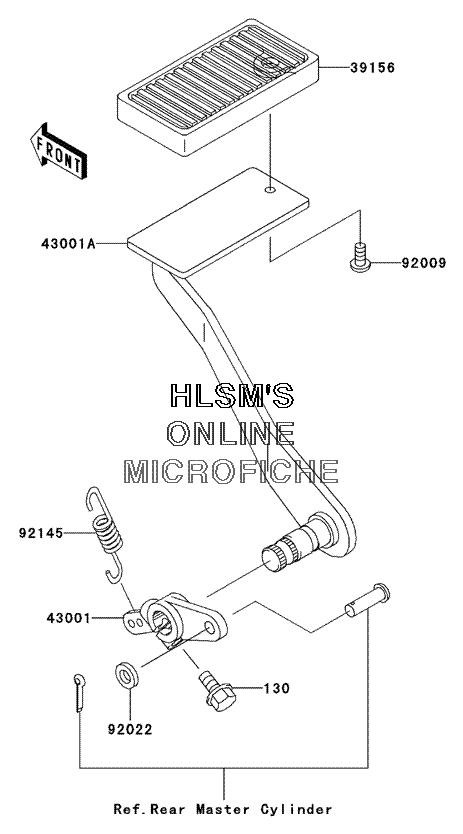

BRAKE PEDAL W/ TORQUE LINK для Kawasaki Vulcan 1500 Classic - 2005 года выпуска
-
№АртикулНазвание
-
130130J0830 BOLT, FLANGED, 8X30BOLT, FLANGED, 8X30
-
3915639156-1624 PAD, BRAKE PEDALPAD, BRAKE PEDAL
-
4300143001-1431 LEVER, BRAKELEVER, BRAKE
-
43001A43001-1433 LEVER, BRAKE, PEDALLEVER, BRAKE, PEDAL
-
9200992009-1677 SCREW, 6X8SCREW, 6X8
-
9202292022-1582 WASHER, 8.5X16X1.2WASHER, 8.5X16X1.2
-
9214592145-0191 SPRING, BRAKE PEDAL RETURNSPRING, BRAKE PEDAL RETURN
