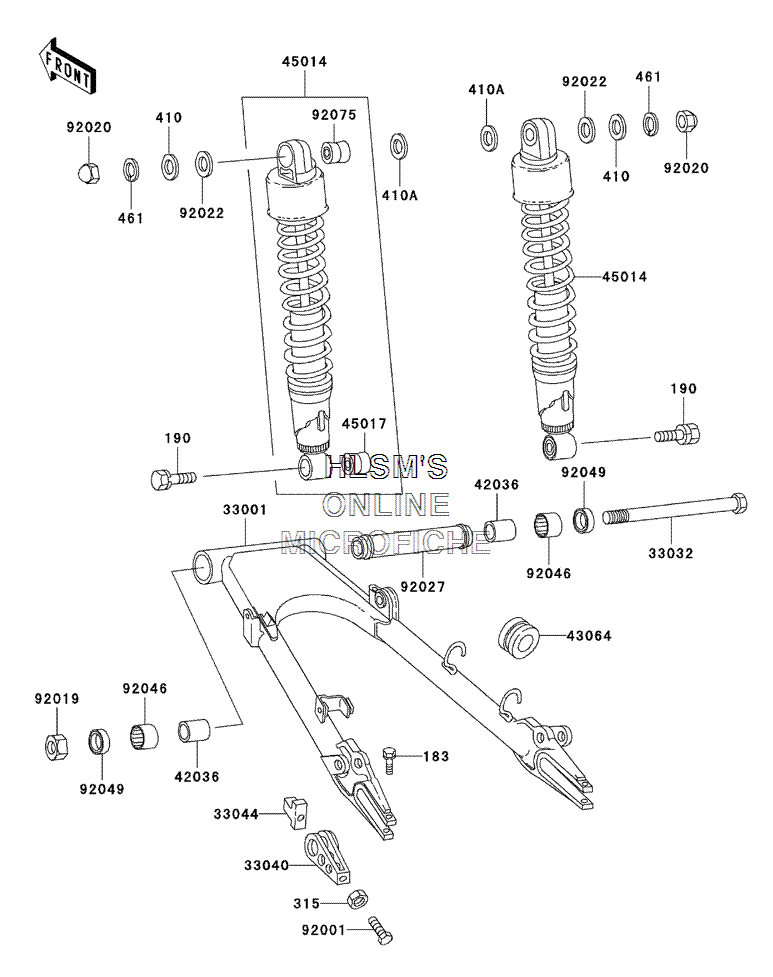

SUSPENSION - SWINGARM W/ SHOCK ABSORBER для Kawasaki Police 1000 - 2005 года выпуска

  • №
    Артикул
    Название
  • 183
    183G0840 BOLT, UPSET, WS, SMALL
    BOLT, UPSET, WS, SMALL
  • 190
    190N1035 BOLT, UPSET, WS
    BOLT, UPSET, WS
  • 315
    315B1000 NUT, HEX, FINE, 10MM
    NUT, HEX, FINE, 10MM
  • 410
    410B1200 WASHER, PLAIN, SMALL, 12MM
    WASHER, PLAIN, SMALL, 12MM
  • 410A
    410B1400 WASHER, PLAIN, SMALL, 14MM
    WASHER, PLAIN, SMALL, 14MM
  • 461
    461F1200 WASHER, SPRING, 12MM
    WASHER, SPRING, 12MM
  • 33001
    33001-4006 ARM, COMP, SWING
    ARM, COMP, SWING
  • 33032
    33032-036 SHAFT, SWING ARM
    SHAFT, SWING ARM
  • 33040
    33040-066 ADJUSTER, CHAIN
    ADJUSTER, CHAIN
  • 33044
    33044-001 STOPPER, CHAIN ADJUSTER
    STOPPER, CHAIN ADJUSTER
  • 42036
    42036-1040 SLEEVE, SWING ARM
    SLEEVE, SWING ARM
  • 43064
    43064-007 GROMMET, HOSE CLAMP
    GROMMET, HOSE CLAMP
  • 45014
    45014-1174 SHOCKABSORBER, REAR
    SHOCKABSORBER, REAR
  • 45017
    45017-019 DAMPER, SHOCKABSORBER, LOWER
    DAMPER, SHOCKABSORBER, LOWER
  • 92001
    92001-143 BOLT, 10X50
    BOLT, 10X50
  • 92019
    92019-005 NUT, LOCK, 16MM
    NUT, LOCK, 16MM
  • 92020
    92020-014 NUT, CAP, 12MM
    NUT, CAP, 12MM
  • 92022
    92022-1239 WASHER, 12.4X28X2.3
    WASHER, 12.4X28X2.3
  • 92027
    92027-1561 COLLAR, SWING ARM
    COLLAR, SWING ARM
  • 92046
    92046-1035 BEARING, NEEDLE, BHTM2530, 1
    BEARING, NEEDLE, BHTM2530, 1
  • 92049
    92049-1060 SEAL, OIL, MH25334
    SEAL, OIL, MH25334
  • 92075
    92075-1141 DAMPER, SHOCKABSORBER
    DAMPER, SHOCKABSORBER
