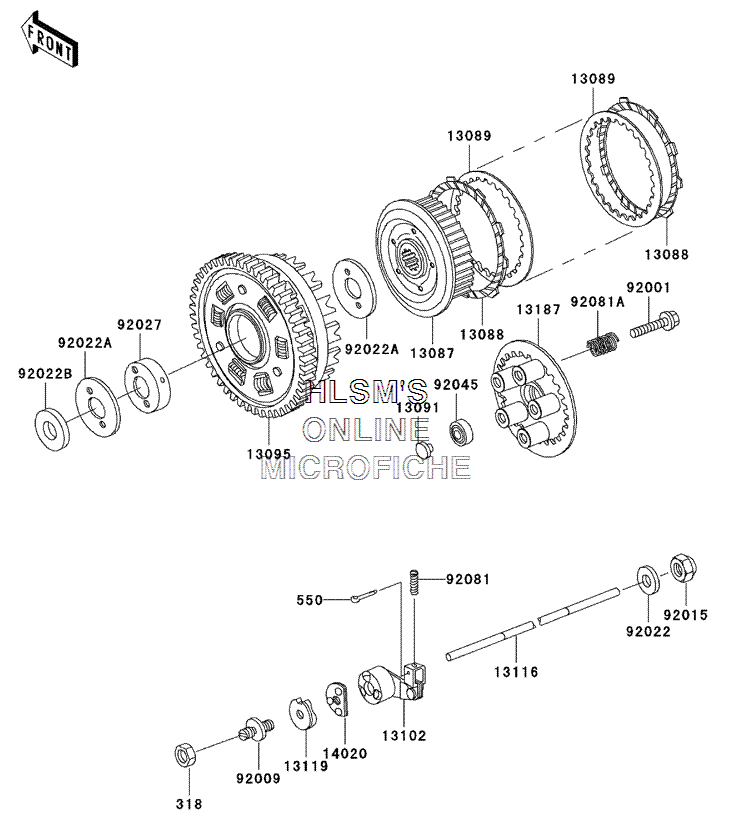

CLUTCH для Kawasaki Police 1000 - 2005 года выпуска

  • №
    Артикул
    Название
  • 318
    318B0800 NUT, HEX, SMALL, 8MM
    NUT, HEX, SMALL, 8MM
  • 550
    550D1615 PIN, COTTER, 1.6X15
    PIN, COTTER, 1.6X15
  • 13087
    13087-1015 HUB, CLUTCH
    HUB, CLUTCH
  • 13088
    13088-1013 PLATE, FRICTION
    PLATE, FRICTION
  • 13089
    13089-1004 PLATE, CLUTCH, T=2.3
    PLATE, CLUTCH, T=2.3
  • 13091
    13091-1085 HOLDER, CLUTCH PUSH ROD
    HOLDER, CLUTCH PUSH ROD
  • 13095
    13095-1037 HOUSING, COMP, CLUTCH
    HOUSING, COMP, CLUTCH
  • 13102
    13102-1012 RELEASE, COMP, CLUTCH
    RELEASE, COMP, CLUTCH
  • 13116
    13116-1148 ROD, PUSH, CLUTCH
    ROD, PUSH, CLUTCH
  • 13119
    13119-1003 CAM, RELEASE, CLUTCH
    CAM, RELEASE, CLUTCH
  • 13187
    13187-1006 PLATE, CLUTCH OPERATING
    PLATE, CLUTCH OPERATING
  • 14020
    14020-1091 RETAINER, CLUTCH RELEASE
    RETAINER, CLUTCH RELEASE
  • 92001
    92001-1066 BOLT, FLANGED, 6X18
    BOLT, FLANGED, 6X18
  • 92009
    92009-1009 SCREW, 8MM
    SCREW, 8MM
  • 92015
    92015-1555 NUT, 20MM
    NUT, 20MM
  • 92022
    92022-1116 WASHER, 20.3X36X2.3
    WASHER, 20.3X36X2.3
  • 92022A
    92022-1221 WASHER, CLUTCH THRUST
    WASHER, CLUTCH THRUST
  • 92022B
    92022-1223 WASHER, 25.3X36X2.5
    WASHER, 25.3X36X2.5
  • 92027
    92027-1284 COLLAR, 25X57X16.1
    COLLAR, 25X57X16.1
  • 92045
    92045-1235 BEARING, BALL, 6001C3ML01
    BEARING, BALL, 6001C3ML01
  • 92081
    92081-069 SPRING, CLUTCH RELEASE
    SPRING, CLUTCH RELEASE
  • 92081A
    92081-1033 SPRING, CLUTCH
    SPRING, CLUTCH
