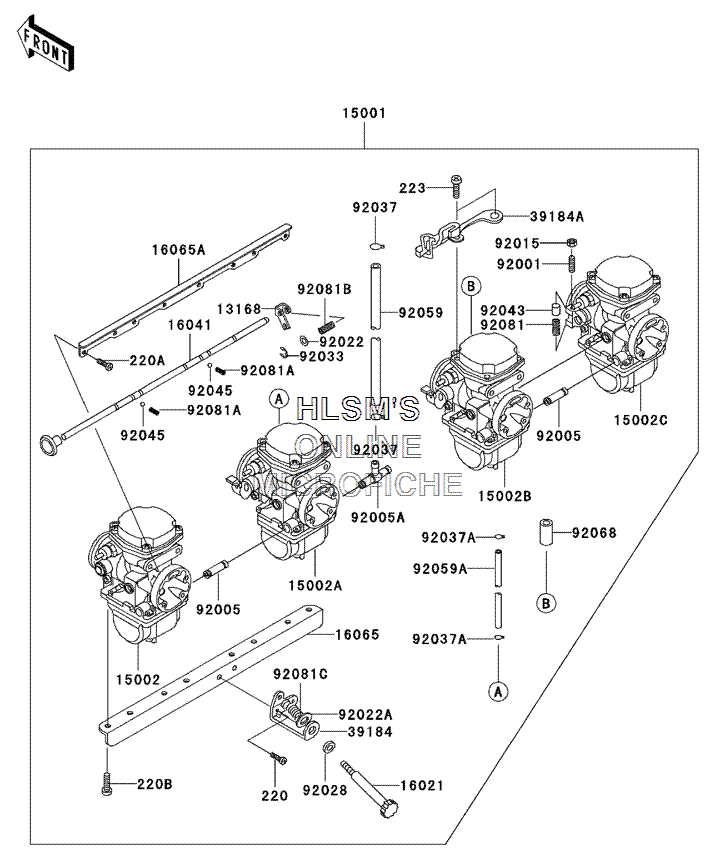

CARBURETOR для Kawasaki Police 1000 - 2005 года выпуска

  • №
    Артикул
    Название
  • 220
    220B0508 SCREW, PAN, CROS, 5X8
    SCREW, PAN, CROS, 5X8
  • 220A
    220B0510 SCREW, PAN, CROS
    SCREW, PAN, CROS
  • 220B
    220B0614 SCREW, PAN, CROS, 6X14
    SCREW, PAN, CROS, 6X14
  • 223
    223B0514 SCREW, PAN, WS, CROS
    SCREW, PAN, WS, CROS
  • 13168
    13168-1091 LEVER, CHOKE
    LEVER, CHOKE
  • 15001
    15001-1929 CARBURETOR, ASSY.
    CARBURETOR, ASSY.
  • 15002
    15002-1258 CARBURETOR (LEFT/OUTSIDE)
    CARBURETOR (LEFT/OUTSIDE)
  • 15002A
    15002-1259 CARBURETOR (LEFT/INSIDE)
    CARBURETOR (LEFT/INSIDE)
  • 15002B
    15002-1260 CARBURETOR (RIGHT/INSIDE)
    CARBURETOR (RIGHT/INSIDE)
  • 15002C
    15002-1261 CARBURETOR (RIGHT/OUTSIDE)
    CARBURETOR (RIGHT/OUTSIDE)
  • 16021
    16021-1103 SCREW, THROTTLE STOP
    SCREW, THROTTLE STOP
  • 16041
    16041-1024 SHAFT, CARBURETOR, CHOKE
    SHAFT, CARBURETOR, CHOKE
  • 16065
    16065-1043 HOLDER, CARBURETOR, LOWER
    HOLDER, CARBURETOR, LOWER
  • 16065A
    16065-1044 HOLDER, CARBURETOR, UPPER
    HOLDER, CARBURETOR, UPPER
  • 39184
    39184-1007 BRACKET, ASSY., IDLING ADJUSTER
    BRACKET, ASSY., IDLING ADJUSTER
  • 39184A
    39184-1013 BRACKET, ASSY., THROTTLE CABLE
    BRACKET, ASSY., THROTTLE CABLE
  • 92001
    92001-1447 BOLT, ADJUSTING
    BOLT, ADJUSTING
  • 92005
    92005-1035 FITTING, FUEL, I, TYPE
    FITTING, FUEL, I, TYPE
  • 92005A
    92005-1036 FITTING, FUEL, T, TYPE
    FITTING, FUEL, T, TYPE
  • 92015
    92015-1119 NUT, THROTTLE VALVE ADJUSTING
    NUT, THROTTLE VALVE ADJUSTING
  • 92022
    92022-1255 WASHER, SPRING
    WASHER, SPRING
  • 92022A
    92022-1491 WASHER, THROTTLE STOP SCREW
    WASHER, THROTTLE STOP SCREW
  • 92028
    92028-1266 BUSHING, IDLING ADJUSTER
    BUSHING, IDLING ADJUSTER
  • 92033
    92033-1066 RING, SNAP, E, TYPE
    RING, SNAP, E, TYPE
  • 92037
    92037-1184 CLAMP, TUBE
    CLAMP, TUBE
  • 92037A
    92037-174 CLAMP, BREATHER TUBE
    CLAMP, BREATHER TUBE
  • 92043
    92043-1079 PIN, THROTTLE VALVE ADJUST
    PIN, THROTTLE VALVE ADJUST
  • 92045
    92045-1044 BALL, STEEL, 1/8"
    BALL, STEEL, 1/8"
  • 92059
    92059-1187 TUBE, 7.5X12.5X250
    TUBE, 7.5X12.5X250
  • 92059A
    92059-1188 TUBE, 5X9X150
    TUBE, 5X9X150
  • 92068
    92068-006 PLUG, 12X25
    PLUG, 12X25
  • 92081
    92081-1259 SPRING, THROTTLE VALVE ADJUST
    SPRING, THROTTLE VALVE ADJUST
  • 92081A
    92081-1260 SPRING, SHAFT STOP
    SPRING, SHAFT STOP
  • 92081B
    92081-1364 SPRING, CHOKE SHAFT
    SPRING, CHOKE SHAFT
  • 92081C
    92081-1377 SPRING, THROTTLE STOP SCREW
    SPRING, THROTTLE STOP SCREW
