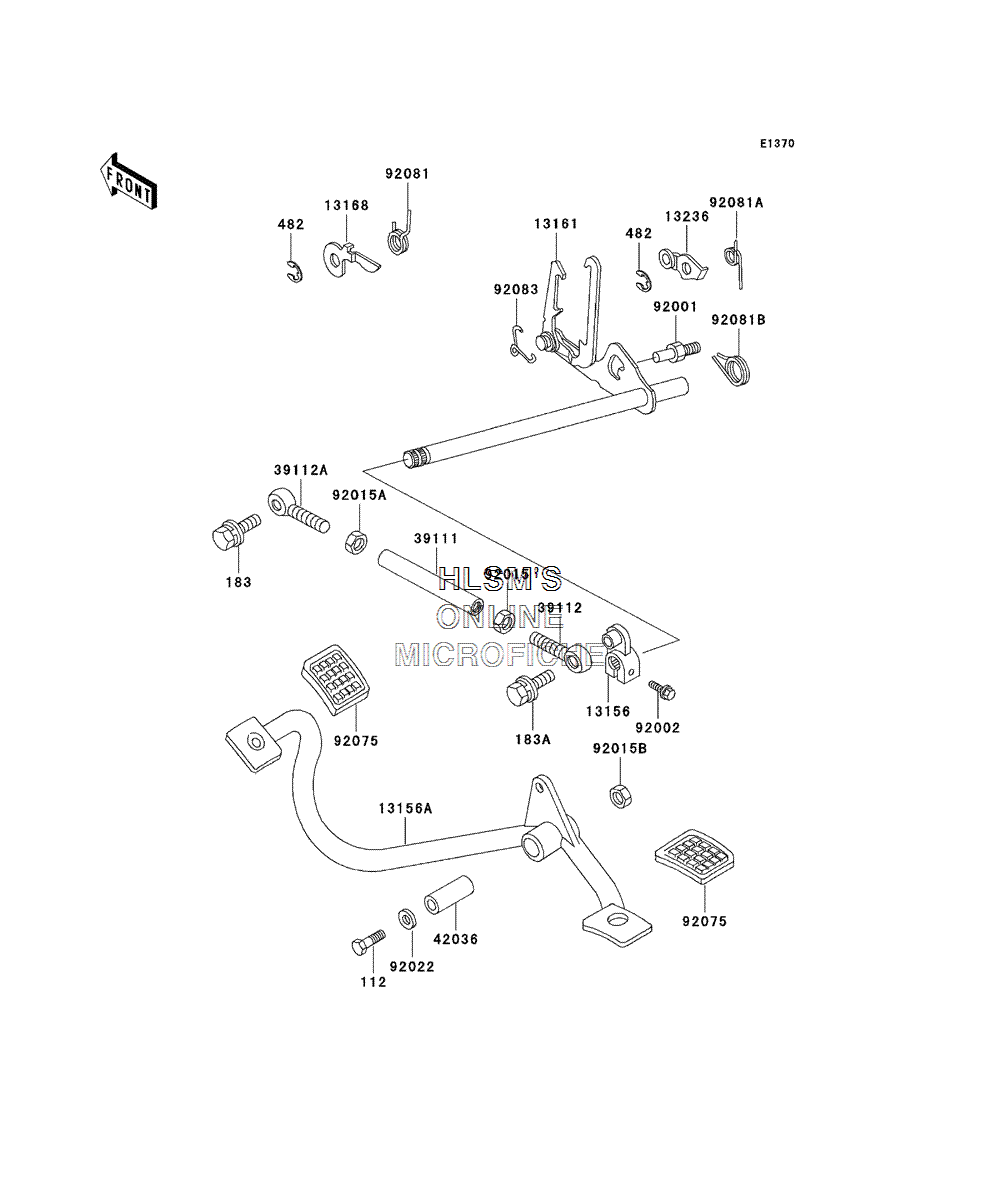

GEAR CHANGE MECHANISM для Kawasaki Police 1000 - 2005 года выпуска

  • №
    Артикул
    Название
  • 112
    112Y1085 BOLT, UPSET
    BOLT, UPSET
  • 183
    183Y0825 BOLT, UPSET, WS, SMALL
    BOLT, UPSET, WS, SMALL
  • 183A
    183Y0835 BOLT, UPSET, WS, SMALL
    BOLT, UPSET, WS, SMALL
  • 482
    482J6000 CIRCLIP, TYPE, E, 6MM
    CIRCLIP, TYPE, E, 6MM
  • 13156
    13156-4001 LEVER, CHANGE, PEDAL
    LEVER, CHANGE, PEDAL
  • 13156A
    13156-4002 LEVER, CHANGE, PEDAL
    LEVER, CHANGE, PEDAL
  • 13161
    13161-1023 LEVER, COMP, CHANGE SHAFT
    LEVER, COMP, CHANGE SHAFT
  • 13168
    13168-1074 LEVER, GEAR POSITIONING
    LEVER, GEAR POSITIONING
  • 13236
    13236-1029 LEVER, COMP, NEUTRAL POSITIONING
    LEVER, COMP, NEUTRAL POSITIONING
  • 39111
    39111-4001 ROD, TIE
    ROD, TIE
  • 39112
    39112-1001 RODEND, TIE (RIGHT) THREAD
    RODEND, TIE (RIGHT) THREAD
  • 39112A
    39112-1002 RODEND, TIE (LEFT) THREAD
    RODEND, TIE (LEFT) THREAD
  • 42036
    42036-4006 SLEEVE, CHANGE LEVER
    SLEEVE, CHANGE LEVER
  • 92001
    92001-1455 BOLT, RETURN SPRING
    BOLT, RETURN SPRING
  • 92002
    92002-1237 BOLT, 6X20
    BOLT, 6X20
  • 92015
    92015-1005 NUT (RIGHT) THREAD
    NUT (RIGHT) THREAD
  • 92015A
    92015-1006 NUT (LEFT) THREAD
    NUT (LEFT) THREAD
  • 92015B
    92015-1962 NUT, LOCK, 10MM
    NUT, LOCK, 10MM
  • 92022
    92022-044 WASHER, 10.5X26X2.3
    WASHER, 10.5X26X2.3
  • 92075
    92075-4031 DAMPER, CHANGE PEDAL
    DAMPER, CHANGE PEDAL
  • 92081
    92081-1284 SPRING, POSITIONING LEVER
    SPRING, POSITIONING LEVER
  • 92081A
    92081-1285 SPRING, NEUTRAL POSITIONING
    SPRING, NEUTRAL POSITIONING
  • 92081B
    92081-1589 SPRING, CHANGE PEDAL RETURN
    SPRING, CHANGE PEDAL RETURN
  • 92083
    92083-018 SPRING
    SPRING
