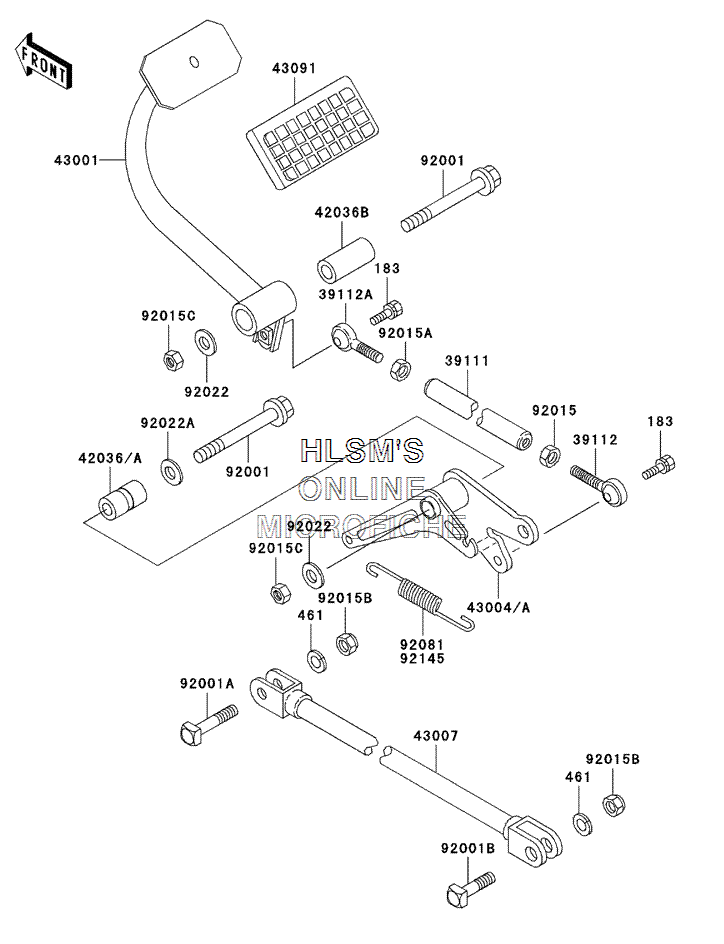

BRAKE PEDAL W/ TORQUE LINK для Kawasaki Police 1000 - 2005 года выпуска

  • №
    Артикул
    Название
  • 183
    183G0825 BOLT, UPSET, WS, SMALL
    BOLT, UPSET, WS, SMALL
  • 461
    461F1000 WASHER, SPRING, 10MM
    WASHER, SPRING, 10MM
  • 39111
    39111-4002 ROD, TIE, L=360
    ROD, TIE, L=360
  • 39112
    39112-1001 RODEND, TIE (RIGHT) THREAD
    RODEND, TIE (RIGHT) THREAD
  • 39112A
    39112-1002 RODEND, TIE (LEFT) THREAD
    RODEND, TIE (LEFT) THREAD
  • 42036
    42036-1368 SLEEVE
    SLEEVE
  • 42036B
    42036-4006 SLEEVE, CHANGE LEVER
    SLEEVE, CHANGE LEVER
  • 43001
    43001-4015 LEVER, BRAKE, PEDAL
    LEVER, BRAKE, PEDAL
  • 43004
    43004-1141 SHAFT, BRAKE, PEDAL
    SHAFT, BRAKE, PEDAL
  • 43007
    43007-1015 ROD, TORQUE, REAR
    ROD, TORQUE, REAR
  • 43091
    43091-002 RUBBER, BRAKE PEDAL
    RUBBER, BRAKE PEDAL
  • 92001
    92001-1619 BOLT, FLANGED, 10X85
    BOLT, FLANGED, 10X85
  • 92001A
    92001-1645 BOLT, 10X45 (BLACK)
    BOLT, 10X45 (BLACK)
  • 92001B
    92001-1646 BOLT, 10X37 (BLACK)
    BOLT, 10X37 (BLACK)
  • 92015
    92015-1005 NUT (RIGHT) THREAD
    NUT (RIGHT) THREAD
  • 92015A
    92015-1006 NUT (LEFT) THREAD
    NUT (LEFT) THREAD
  • 92015B
    92015-1189 NUT, LOCK, 10MM (BLACK)
    NUT, LOCK, 10MM (BLACK)
  • 92015C
    92015-1376 NUT, LOCK, 10MM
    NUT, LOCK, 10MM
  • 92022
    92022-044 WASHER, 10.5X26X2.3
    WASHER, 10.5X26X2.3
  • 92022A
    92022-1022 WASHER, 10.5X22X4.5
    WASHER, 10.5X22X4.5
  • 92145
    92145-0105 SPRING, BRAKE PEDAL RETURN
    SPRING, BRAKE PEDAL RETURN
