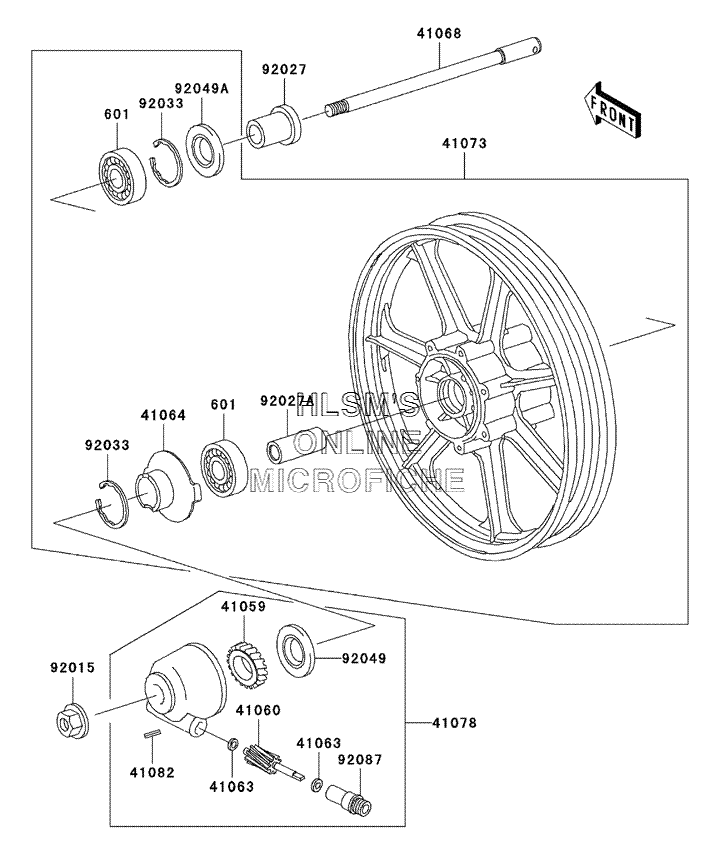

WHEEL - FRONT для Kawasaki Vulcan 750 - 2003 года выпуска

  • №
    Артикул
    Название
  • 601
    601B6302UG BEARING, BALL, #6302UG
    BEARING, BALL, #6302UG
  • 41059
    41059-026 GEAR, METER SCREW (26 TEETH)
    GEAR, METER SCREW (26 TEETH)
  • 41060
    41060-1016 GEAR, METER SCREW (9 TEETH)
    GEAR, METER SCREW (9 TEETH)
  • 41063
    41063-001 WASHER, 5.1X9X0.4
    WASHER, 5.1X9X0.4
  • 41064
    41064-1006 RECEIVER, SPEEDOMETER
    RECEIVER, SPEEDOMETER
  • 41068
    41068-1189 AXLE, FRONT
    AXLE, FRONT
  • 41073
    41073-1591-CX WHEEL, ASSY, FRONT (SILVER NO.1)
    WHEEL, ASSY, FRONT (SILVER NO.1)
  • 41078
    41078-1024 CASE, ASSY, METER GEAR (F.BLACK)
    CASE, ASSY, METER GEAR (F.BLACK)
  • 41082
    41082-001 PIN, SPRING
    PIN, SPRING
  • 92015
    92015-1407 NUT, 14MM
    NUT, 14MM
  • 92027
    92027-1225 COLLAR, L=30
    COLLAR, L=30
  • 92027A
    92027-1866 COLLAR, L=70
    COLLAR, L=70
  • 92033
    92033-1041 RING, SNAP, 42MM
    RING, SNAP, 42MM
  • 92049
    92049-1057 SEAL, OIL, BJN30427, C3
    SEAL, OIL, BJN30427, C3
  • 92049A
    92049-1058 SEAL, OIL, BJN22425
    SEAL, OIL, BJN22425
  • 92087
    92087-1002 BUSHING, METER GEAR
    BUSHING, METER GEAR
