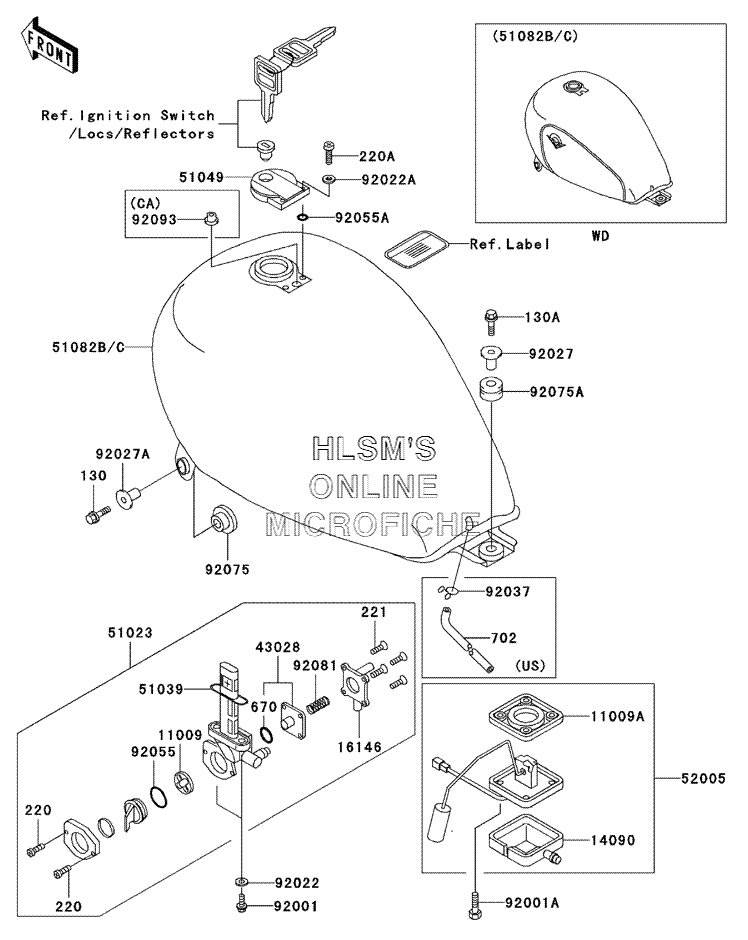

FUEL TANK для Kawasaki Vulcan 750 - 2003 года выпуска

  • №
    Артикул
    Название
  • 11009
    11009-1188 GASKET, TAP VALVE
    GASKET, TAP VALVE
  • 11009A
    11009-1656 GASKET, FUEL GAUGE
    GASKET, FUEL GAUGE
  • 14090
    14090-1624 COVER, FUEL GAUGE
    COVER, FUEL GAUGE
  • 16146
    16146-1010 COVER, ASSY, TAP DIAPHRAGM
    COVER, ASSY, TAP DIAPHRAGM
  • 43028
    43028-1033 DIAPHRAGM
    DIAPHRAGM
  • 51023
    51023-1308 TAP, ASSY, FUEL
    TAP, ASSY, FUEL
  • 51039
    51039-003 RING, TAP FLANGED
    RING, TAP FLANGED
  • 51049
    51049-1139 CAP, TANK, FUEL
    CAP, TANK, FUEL
  • 51082B
    51082-5324-364 TANK, COMP, FUEL (RED/GRAYSTONE) (US ONLY)
    TANK, COMP, FUEL (RED/GRAYSTONE) (US ONLY)
  • 51082C
    51082-5325-364 TANK, COMP, FUEL (RED/GRAYSTONE) (CALIF. ONLY)
    TANK, COMP, FUEL (RED/GRAYSTONE) (CALIF. ONLY)
  • 52005
    52005-1070 GAUGE, FUEL
    GAUGE, FUEL
  • 92001
    92001-1091 BOLT, 6X20
    BOLT, 6X20
  • 92001A
    92001-1705 BOLT, FUEL GAUGE
    BOLT, FUEL GAUGE
  • 92022
    92022-183 WASHER, 6.2X11X1.5
    WASHER, 6.2X11X1.5
  • 92022A
    92022-1977 WASHER, 5.1X10X1.0
    WASHER, 5.1X10X1.0
  • 92027
    92027-1780 COLLAR, L=19.3
    COLLAR, L=19.3
  • 92027A
    92027-1929 COLLAR
    COLLAR
  • 92037
    92037-1461 CLAMP, TUBE (US ONLY)
    CLAMP, TUBE (US ONLY)
  • 130
    130C0825 BOLT, FLANGED, 8X25 (BLACK)
    BOLT, FLANGED, 8X25 (BLACK)
  • 130A
    130G0830 BOLT, FLANGED, 8X30
    BOLT, FLANGED, 8X30
  • 220
    220B0308 SCREW, PAN, CROS
    SCREW, PAN, CROS
  • 220A
    220B0510 SCREW, PAN, CROS
    SCREW, PAN, CROS
  • 221
    221B0414 SCREW, CSK, CROS, 4X14
    SCREW, CSK, CROS, 4X14
  • 670
    670B1504 O, RING, 4MM
    O, RING, 4MM
  • 702
    702A05630 TUBE, RUBBER, 5X8X630 (US ONLY)
    TUBE, RUBBER, 5X8X630 (US ONLY)
  • 92055
    92055-1085 O-RING, TAP LEVER
    O-RING, TAP LEVER
  • 92055A
    92055-1552 O-RING, ID=9
    O-RING, ID=9
  • 92075
    92075-1677 DAMPER, FUEL TANK
    DAMPER, FUEL TANK
  • 92075A
    92075-1736 DAMPER
    DAMPER
  • 92081
    92081-1240 SPRING, TAP DIAPHRAGM
    SPRING, TAP DIAPHRAGM
  • 92093
    92093-1030 SEAL, FUEL TANK CAP (CALIF. ONLY)
    SEAL, FUEL TANK CAP (CALIF. ONLY)
