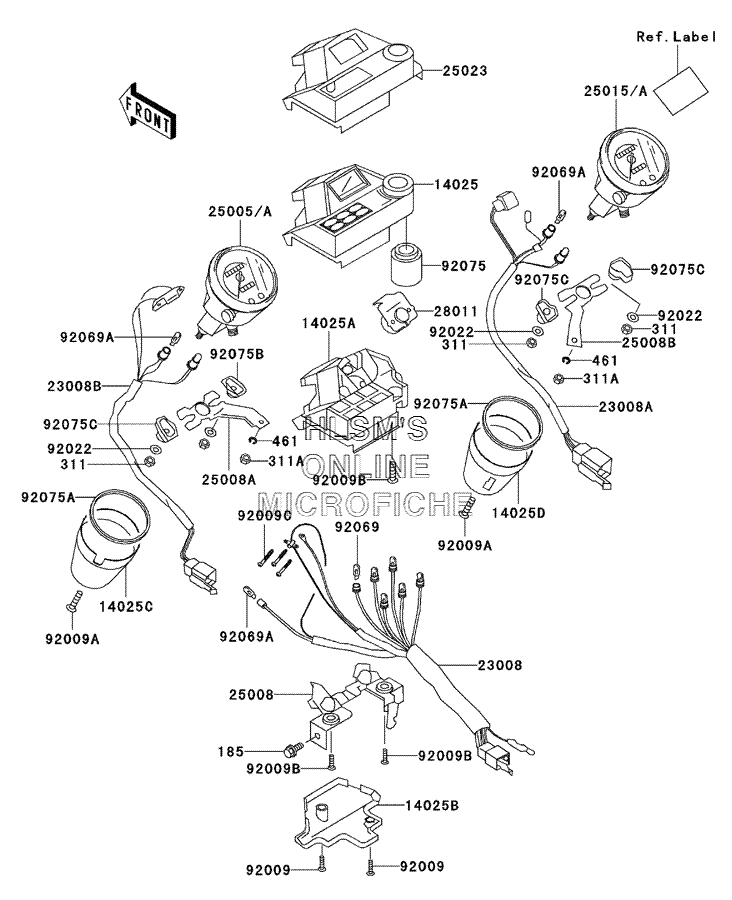

METER(S) для Kawasaki Vulcan 750 - 2003 года выпуска
-
№АртикулНазвание
-
185185C0816 BOLT, UPSET, WSP, SMALLBOLT, UPSET, WSP, SMALL
-
311311B0500 NUT, HEXNUT, HEX
-
311A311B0600 NUT, HEX, 6MMNUT, HEX, 6MM
-
461461F0600 WASHER, SPRING, 6MMWASHER, SPRING, 6MM
-
1402514025-1742 COVER, PILOT BOX, UPPERCOVER, PILOT BOX, UPPER
-
14025A14025-1743 COVER, PILOT BOX, INNERCOVER, PILOT BOX, INNER
-
14025B14025-1744 COVER, PILOT BOX, LOWERCOVER, PILOT BOX, LOWER
-
14025C14025-1745 COVER, SPEEDOMETERCOVER, SPEEDOMETER
-
14025D14025-1746 COVER, TACHOMETERCOVER, TACHOMETER
-
2300823008-1255 SOCKET, ASSY, PILOT BOXSOCKET, ASSY, PILOT BOX
-
23008A23008-1257 SOCKET, ASSY, TACHOMETERSOCKET, ASSY, TACHOMETER
-
23008B23008-1398 SOCKET, ASSY, SPEEDOMETERSOCKET, ASSY, SPEEDOMETER
-
25005A25005-1736 SPEEDOMETER, MPHSPEEDOMETER, MPH
-
2500825008-1115 BRACKET, METER, PILOT BOXBRACKET, METER, PILOT BOX
-
25008A25008-1116 BRACKET, METER, SPEEDOMETERBRACKET, METER, SPEEDOMETER
-
25008B25008-1117 BRACKET, METER, TACHOMETERBRACKET, METER, TACHOMETER
-
25015A25015-1369 TACHOMETER, X1000R/MINTACHOMETER, X1000R/MIN
-
2502325023-1125 COVER, METER CASE, PILOT BOXCOVER, METER CASE, PILOT BOX
-
2801128011-1071 METER, FUELMETER, FUEL
-
9200992009-1034 SCREW, TAPPING, 4X14SCREW, TAPPING, 4X14
-
92009A92009-1063 SCREW, TAPPING, 4X16SCREW, TAPPING, 4X16
-
92009B92009-1163 SCREW, TAPPING, 4X16SCREW, TAPPING, 4X16
-
92009C92009-1293 SCREW, 3X22SCREW, 3X22
-
9202292022-263 WASHER, 5.2X16X1.2WASHER, 5.2X16X1.2
-
9206992069-1007 BULB, 12V 3.4W, T10BULB, 12V 3.4W, T10
-
92069A92069-1020 BULB, 12V 3W, T7BULB, 12V 3W, T7
-
9207592075-1286 DAMPER, TRIP METERDAMPER, TRIP METER
-
92075A92075-1712 DAMPER, METERDAMPER, METER
-
92075B92075-1713 DAMPER, METERDAMPER, METER
-
92075C92075-1714 DAMPER, METERDAMPER, METER
