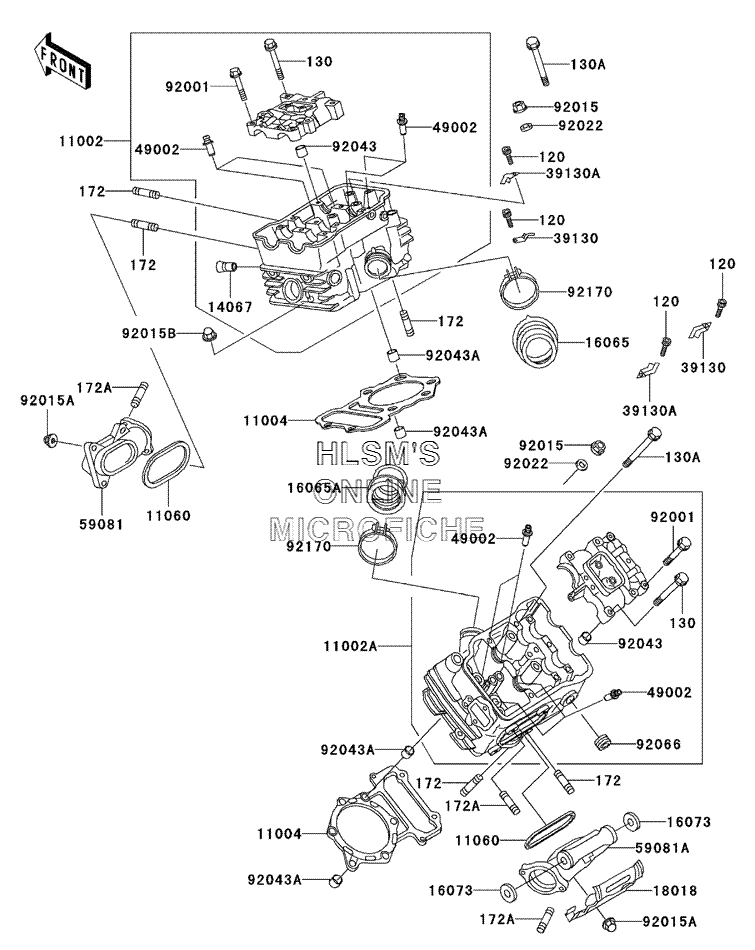

CYLINDER HEAD для Kawasaki Vulcan 750 - 2003 года выпуска`
-
№АртикулНазвание
-
120120P0614 BOLT, SOCKET, 6X14BOLT, SOCKET, 6X14
-
130130P0645 BOLT, FLANGEDBOLT, FLANGED
-
130A130P0675 BOLT, FLANGEDBOLT, FLANGED
-
172172G0825 BOLT, STUD, 8X25BOLT, STUD, 8X25
-
172A172G0830 BOLT, STUD, 8X30BOLT, STUD, 8X30
-
1100211002-1214 HEAD, ASSY, CYLINDER, FRONTHEAD, ASSY, CYLINDER, FRONT
-
11002A11002-1215 HEAD, ASSY, CYLINDER, REARHEAD, ASSY, CYLINDER, REAR
-
1100411004-1135 GASKET, HEADGASKET, HEAD
-
1106011060-1082 GASKET, EXHAUST MANIFOLDGASKET, EXHAUST MANIFOLD
-
1406714067-006 FITTING, BREATHERFITTING, BREATHER
-
1606516065-1122 HOLDER, CARBURETOR, FRONTHOLDER, CARBURETOR, FRONT
-
16065A16065-1123 HOLDER, CARBURETOR, REARHOLDER, CARBURETOR, REAR
-
1607316073-1058 INSULATORINSULATOR
-
1801818018-1065 PLATE, HEAT GUARDPLATE, HEAT GUARD
-
3913039130-1055 SPRING, LEAF, ROCKER ARMSPRING, LEAF, ROCKER ARM
-
39130A39130-1056 SPRING, LEAF, ROCKER ARMSPRING, LEAF, ROCKER ARM
-
4900249002-1052 GUIDE, VALVEGUIDE, VALVE
-
5908159081-1125 MANIFOLD, EXHAUST, FRONTMANIFOLD, EXHAUST, FRONT
-
59081A59081-1141 MANIFOLD, EXHAUST, REARMANIFOLD, EXHAUST, REAR
-
9200192001-1105 BOLT, FLANGED, 6X38BOLT, FLANGED, 6X38
-
9201592015-076 NUT, FLANGED CAP, 10MMNUT, FLANGED CAP, 10MM
-
92015A92015-1174 NUT, CAP, 8MM (BLACK)NUT, CAP, 8MM (BLACK)
-
92015B92015-1385 NUT, CAP, 6MMNUT, CAP, 6MM
-
9202292022-1591 WASHER, 10.5X20X1.6WASHER, 10.5X20X1.6
-
9204392043-1263 PIN, 6.2X8X14PIN, 6.2X8X14
-
92043A92043-1266 PIN, 11X14X12.3PIN, 11X14X12.3
-
9206692066-1035 PLUG, BREATHERPLUG, BREATHER
-
9217092170-1448 CLAMPCLAMP
