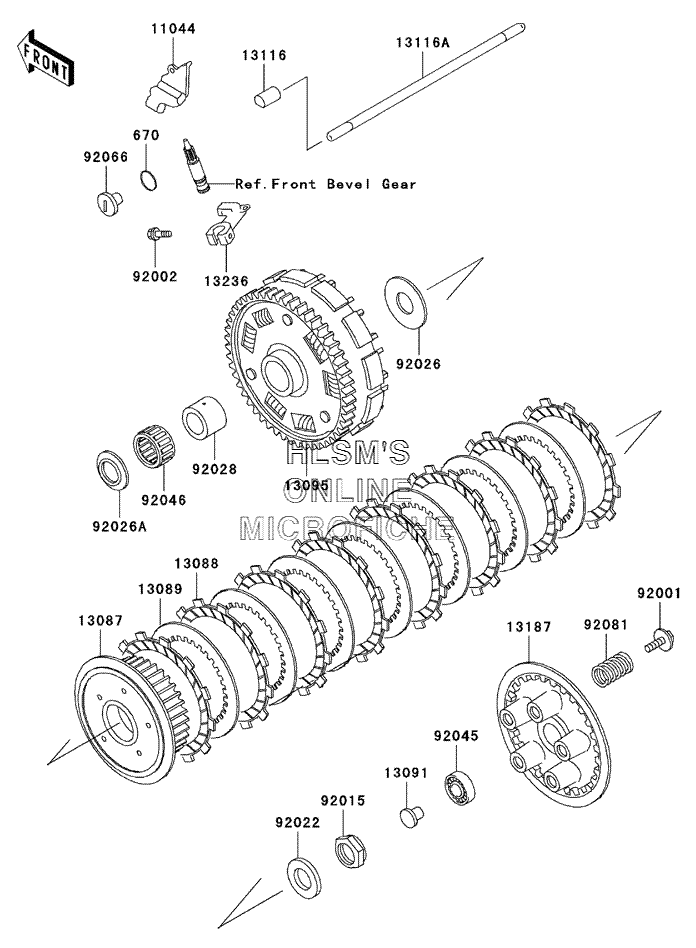

CLUTCH для Kawasaki Vulcan 750 - 2003 года выпуска

  • №
    Артикул
    Название
  • 670
    670B2015 O-RING, 15MM
    O-RING, 15MM
  • 11044
    11044-1473 BRACKET, CLUTCH CABLE
    BRACKET, CLUTCH CABLE
  • 13087
    13087-042 HUB, CLUTCH
    HUB, CLUTCH
  • 13088
    13088-1087 PLATE, FRICTION
    PLATE, FRICTION
  • 13089
    13089-027 PLATE, CLUTCH
    PLATE, CLUTCH
  • 13091
    13091-1085 HOLDER, CLUTCH PUSH ROD
    HOLDER, CLUTCH PUSH ROD
  • 13095
    13095-1302 HOUSING, COMP, CLUTCH
    HOUSING, COMP, CLUTCH
  • 13116
    13116-1040 ROD, PUSH, CLUTCH (6 TEETH)
    ROD, PUSH, CLUTCH (6 TEETH)
  • 13116A
    13116-1114 ROD, PUSH, L=316.5
    ROD, PUSH, L=316.5
  • 13187
    13187-1006 PLATE, CLUTCH OPERATING
    PLATE, CLUTCH OPERATING
  • 13236
    13236-1140 LEVER, COMP, CLUTCH RELEASE
    LEVER, COMP, CLUTCH RELEASE
  • 92001
    92001-1066 BOLT, FLANGED, 6X18
    BOLT, FLANGED, 6X18
  • 92002
    92002-1237 BOLT, 6X20
    BOLT, 6X20
  • 92015
    92015-1555 NUT, 20MM
    NUT, 20MM
  • 92022
    92022-1868 WASHER
    WASHER
  • 92026
    92026-022 SPACER, 25.5X47X2.5
    SPACER, 25.5X47X2.5
  • 92026A
    92026-116 SPACER, THRUST, T=5.5
    SPACER, THRUST, T=5.5
  • 92028
    92028-178 BUSHING, 25X32X23.6
    BUSHING, 25X32X23.6
  • 92045
    92045-1235 BEARING, BALL, 6001C3ML01
    BEARING, BALL, 6001C3ML01
  • 92046
    92046-028 BEARING, NEEDLE, KTV323723
    BEARING, NEEDLE, KTV323723
  • 92066
    92066-1237 PLUG
    PLUG
  • 92081
    92081-1033 SPRING, CLUTCH
    SPRING, CLUTCH
