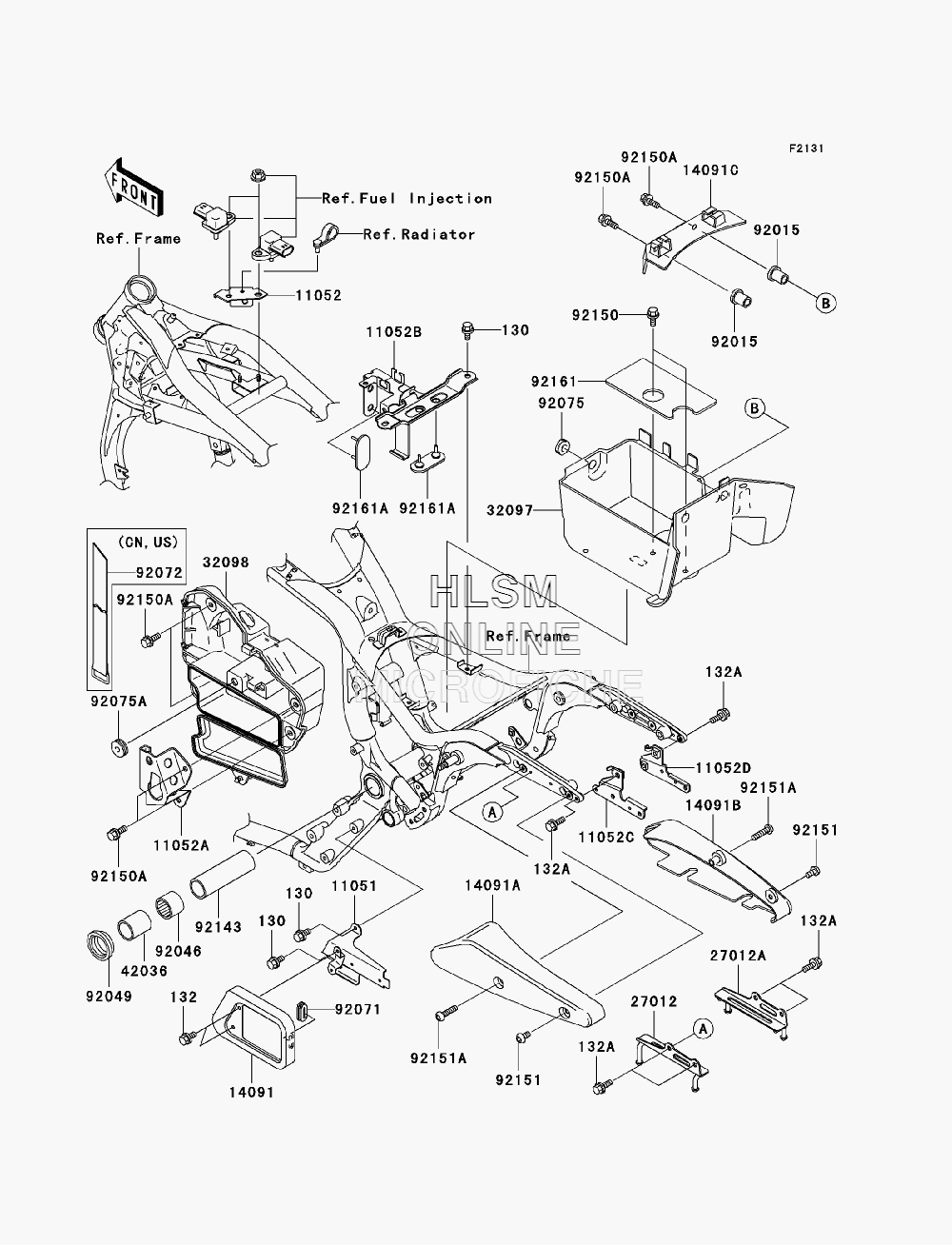

FRAME FITTINGS для Kawasaki Vulcan 1500 Mean Streak (VN1500-P1) - 2002 года выпуска`
-
№АртикулНазвание
-
130130J0612 BOLT-FLANGEDBOLT-FLANGED
-
132132J0612 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
132A132J0616 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
1105111051-1163 BRACKET, REGULATORBRACKET, REGULATOR
-
1105211052-1071 BRACKETBRACKET
-
11052A11052-1234 BRACKET, SIDE COVER LOCKBRACKET, SIDE COVER LOCK
-
11052B11052-1281 BRACKET, BATTERY BANDBRACKET, BATTERY BAND
-
11052C11052-1282 BRACKET, HELMET LOCK, LEFT HANDBRACKET, HELMET LOCK, LEFT HAND
-
11052D11052-1283 BRACKET, HELMET LOCK, RIGHT HANDBRACKET, HELMET LOCK, RIGHT HAND
-
1409114091-1079 COVER, REGULATORCOVER, REGULATOR
-
14091A14091-1361 COVER, REAR FENDER, LEFT HANDCOVER, REAR FENDER, LEFT HAND
-
14091B14091-1363 COVER, REAR FENDER, RIGHT HANDCOVER, REAR FENDER, RIGHT HAND
-
14091C14091-1373 COVER, BATTERY CASECOVER, BATTERY CASE
-
2701227012-1609 HOOK, BUNGEE CORD, LEFT HANDHOOK, BUNGEE CORD, LEFT HAND
-
27012A27012-1610 HOOK, BUNGEE CORD, RIGHT HANDHOOK, BUNGEE CORD, RIGHT HAND
-
3209732097-1192 CASE-BATTERYCASE-BATTERY
-
3209832098-1137 CASE-TOOLCASE-TOOL
-
4203642036-1330 SLEEVE, L=45SLEEVE, L=45
-
9201592015-1700 NUTNUT
-
9204692046-1202 BEARING-NEEDLE, BM2824BEARING-NEEDLE, BM2824
-
9204992049-1181 SEAL-OILSEAL-OIL
-
9207192071-1187 GROMMETGROMMET
-
9207292072-1331 BAND, L=470 (EXCEPT CALIF.)BAND, L=470 (EXCEPT CALIF.)
-
9207592075-1067 DAMPERDAMPER
-
92075A92075-1629 DAMPERDAMPER
-
9214392143-1878 COLLAR, 20.2X27X90COLLAR, 20.2X27X90
-
9215092150-1133 BOLT, 6X14BOLT, 6X14
-
92150A92150-1198 BOLT, 6X16BOLT, 6X16
-
9215192151-1940 BOLT, SOCKET, 6X12BOLT, SOCKET, 6X12
-
92151A92151-1945 BOLT, SOCKET, 6X25BOLT, SOCKET, 6X25
-
9216192161-1097 DAMPER, BATTERYDAMPER, BATTERY
-
92161A92161-1214 DAMPER, BATTERY BANDDAMPER, BATTERY BAND
