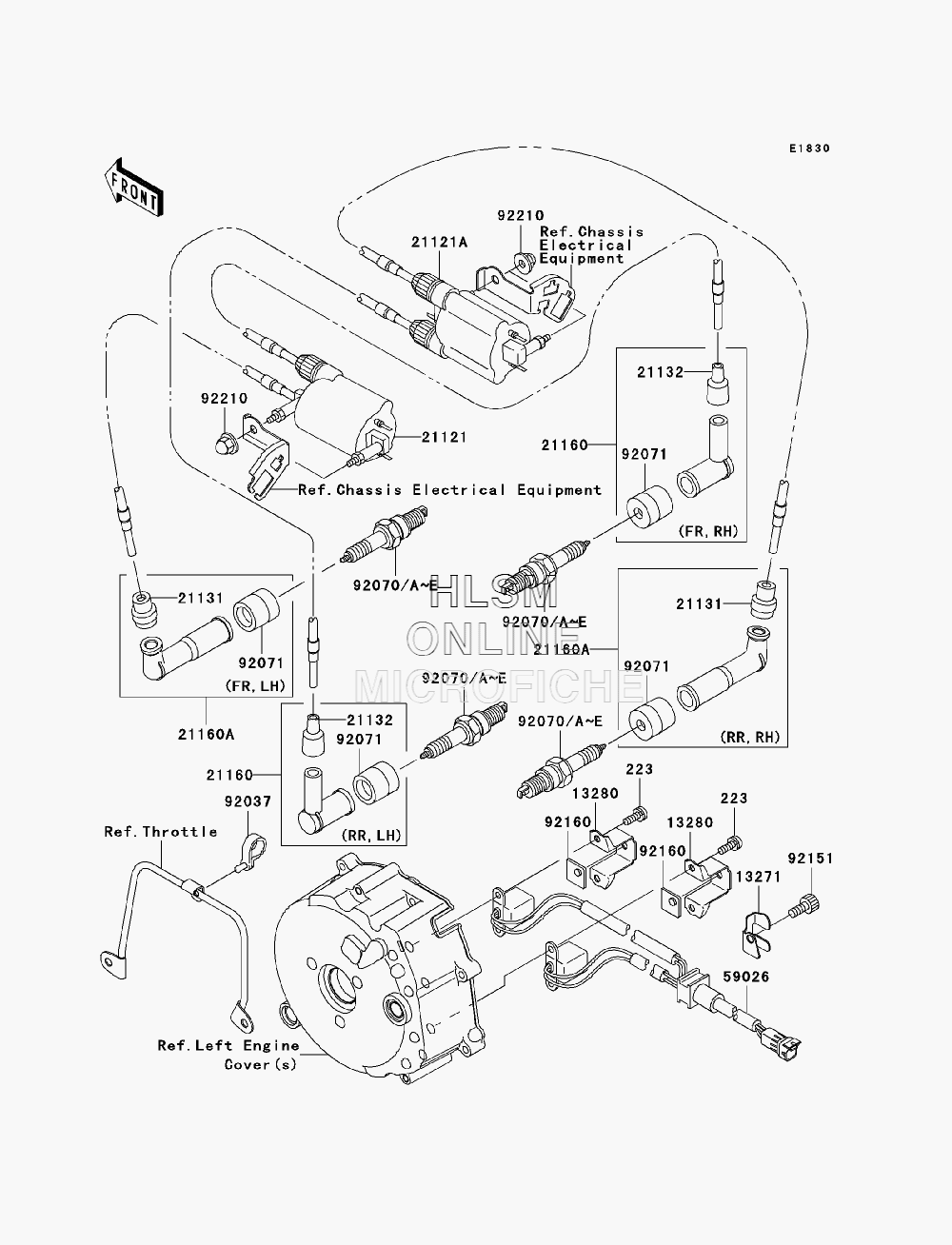

IGNITION SYSTEM для Kawasaki Vulcan 1500 Mean Streak (VN1500-P1) - 2002 года выпуска
-
№АртикулНазвание
-
223223B0516 SCREW-PAN-WS-CROSSCREW-PAN-WS-CROS
-
1327113271-1339 PLATEPLATE
-
1328013280-1255 HOLDERHOLDER
-
2112121121-1302 COIL-IGNITION, FRONTCOIL-IGNITION, FRONT
-
21121A21121-1303 COIL-IGNITION, REARCOIL-IGNITION, REAR
-
2113121131-005 GROMMET, HIGH TENSIONGROMMET, HIGH TENSION
-
2113221132-005 GROMMET, HIGH TENSIONGROMMET, HIGH TENSION
-
2116021160-1085 CAP-ASSY-PLUGCAP-ASSY-PLUG
-
21160A21160-1091 CAP-ASSY-PLUGCAP-ASSY-PLUG
-
5902659026-1158 COIL-PULSINGCOIL-PULSING
-
9203792037-1290 CLAMP, SPEED, L=43CLAMP, SPEED, L=43
-
92070A92070-1125 PLUG-SPARK, DPR7EA9(NGK)PLUG-SPARK, DPR7EA9(NGK)
-
92070B92070-1138 PLUG-SPARK, DPR6EA9(NGK)PLUG-SPARK, DPR6EA9(NGK)
-
92070D92070-1250 PLUG-SPARK, DPR5EA9(NGK)PLUG-SPARK, DPR5EA9(NGK)
-
9207192071-1184 GROMMET, PLUG CAPGROMMET, PLUG CAP
-
9215192151-3704 BOLT, 6X10BOLT, 6X10
-
9216092160-1091 DAMPERDAMPER
-
9221092210-0003 NUT, CAP, 6MMNUT, CAP, 6MM
