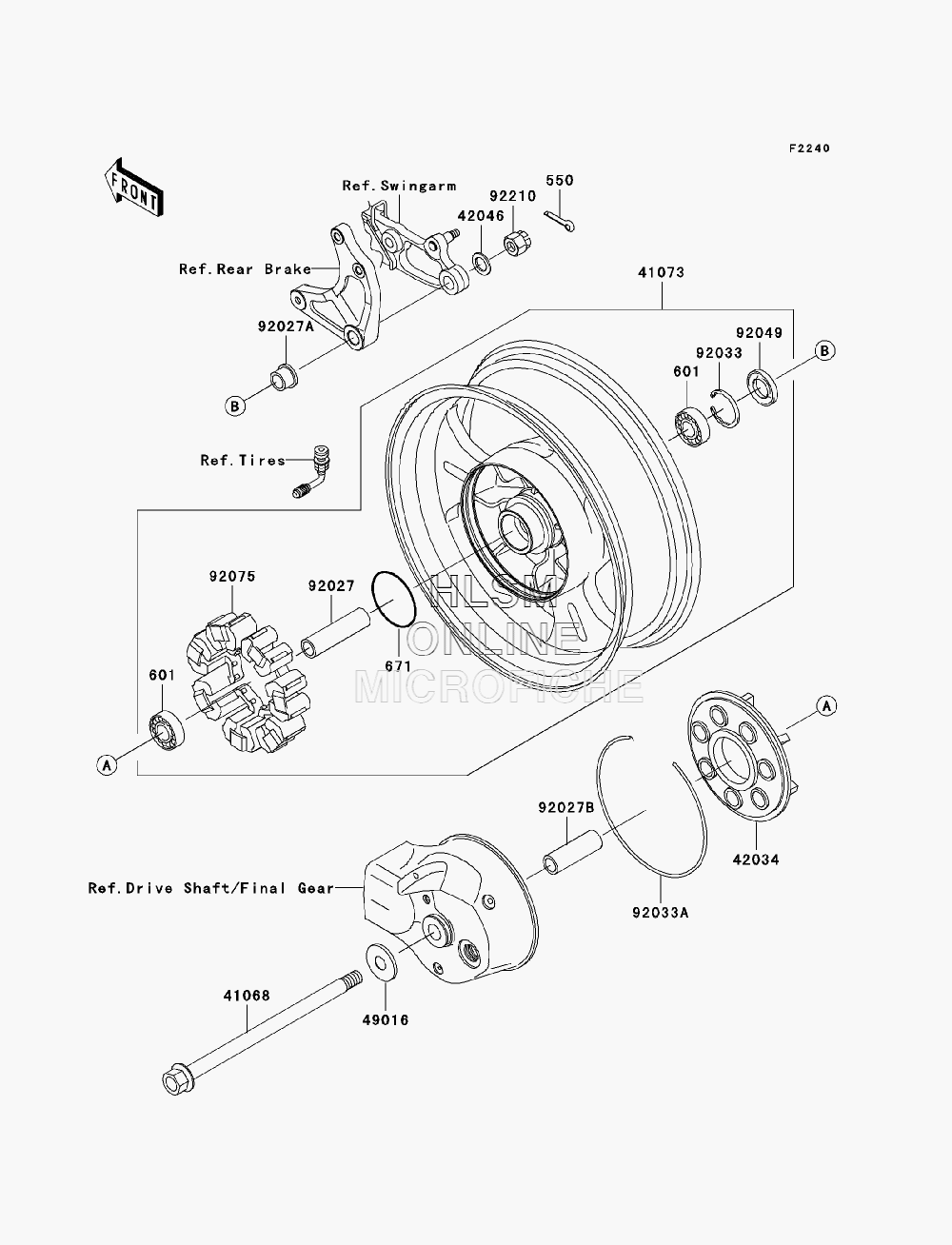

REAR WHEEL/CHAIN для Kawasaki Vulcan 1500 Mean Streak (VN1500-P1) - 2002 года выпуска

  • №
    Артикул
    Название
  • 550
    550D4035 PIN-COTTER, 4.0X35
    PIN-COTTER, 4.0X35
  • 601
    601B6304UU BEARING-BALL, #6304UUC3
    BEARING-BALL, #6304UUC3
  • 671
    671B2580 O RING, 80MM
    O RING, 80MM
  • 41068
    41068-1410 AXLE, REAR
    AXLE, REAR
  • 41073
    41073-1671 WHEEL-ASSY, REAR
    WHEEL-ASSY, REAR
  • 42034
    42034-1011 COUPLING, REAR HUB
    COUPLING, REAR HUB
  • 42046
    42046-003 WASHER, 21X33X2.6
    WASHER, 21X33X2.6
  • 49016
    49016-1019 COVER-SEAL
    COVER-SEAL
  • 92027
    92027-1901 COLLAR, 20.2X28X105.5
    COLLAR, 20.2X28X105.5
  • 92027A
    92027-1902 COLLAR, REAR AXLE, L=21.5
    COLLAR, REAR AXLE, L=21.5
  • 92027B
    92027-1969 COLLAR, 20.2X28X86
    COLLAR, 20.2X28X86
  • 92033
    92033-1043 RING-SNAP, 52MM
    RING-SNAP, 52MM
  • 92033A
    92033-1230 RING-SNAP, 220MM
    RING-SNAP, 220MM
  • 92049
    92049-1061 SEAL-OIL, 28X52X5
    SEAL-OIL, 28X52X5
  • 92075
    92075-1121 DAMPER, SHOCK, REAR HUB
    DAMPER, SHOCK, REAR HUB
  • 92210
    92210-1134 NUT, CASTLE, 18MM
    NUT, CASTLE, 18MM
