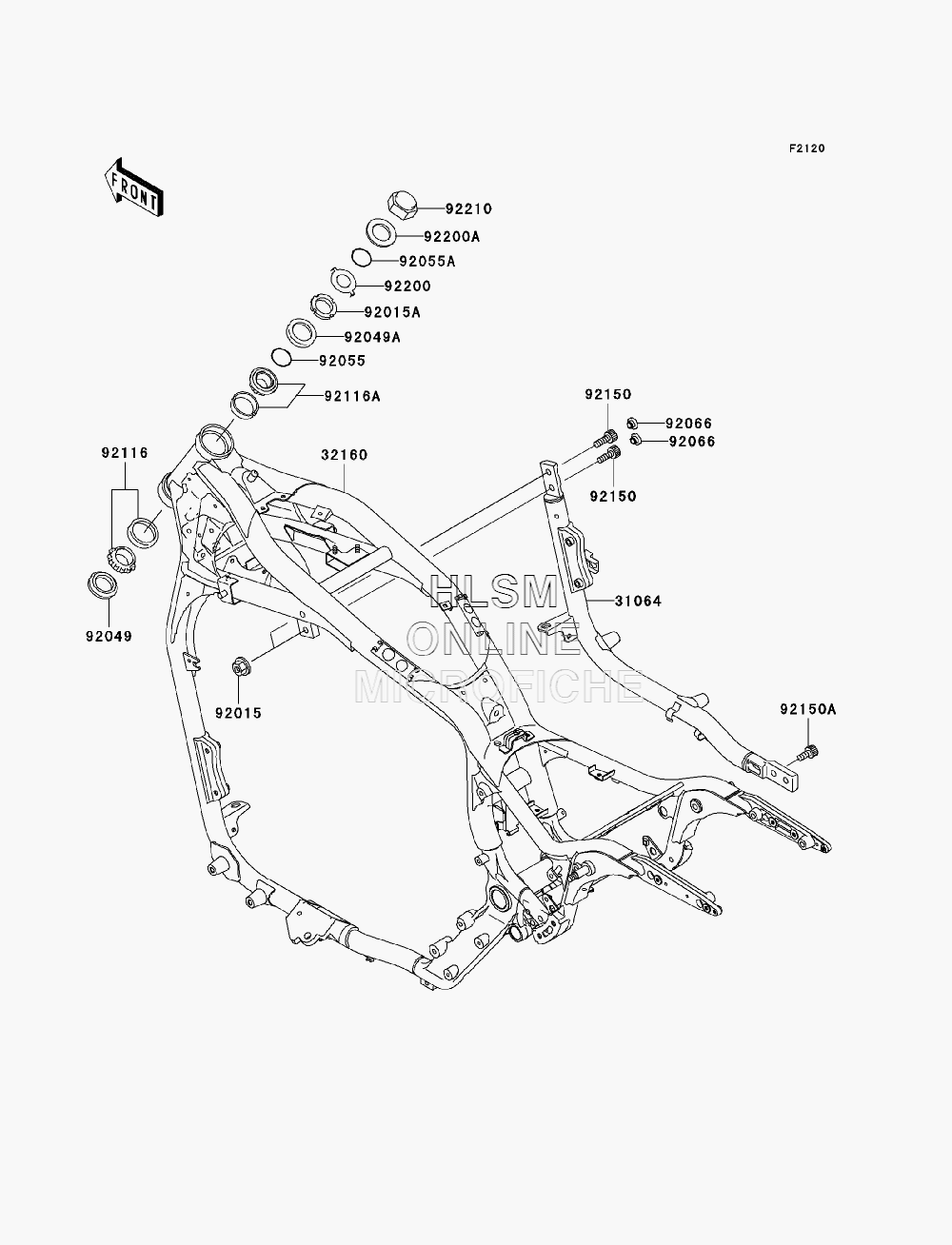

FRAME для Kawasaki Vulcan 1500 Mean Streak (VN1500-P1) - 2002 года выпуска

  • №
    Артикул
    Название
  • 31064
    31064-1243 PIPE-COMP, DOWNTUBE, RIGHT HAND
    PIPE-COMP, DOWNTUBE, RIGHT HAND
  • 32160
    32160-1722 FRAME-COMP
    FRAME-COMP
  • 92015
    92015-1727 NUT, FLANGED, 10MM
    NUT, FLANGED, 10MM
  • 92015A
    92015-1848 NUT, STEERING STEM, 35MM
    NUT, STEERING STEM, 35MM
  • 92049
    92049-1383 SEAL-OIL, XMHE 43 55 4J
    SEAL-OIL, XMHE 43 55 4J
  • 92049A
    92049-1483 SEAL-OIL, MX043N2
    SEAL-OIL, MX043N2
  • 92055
    92055-1452 RING-O, 34.5X2.0
    RING-O, 34.5X2.0
  • 92055A
    92055-1459 RING-O, ID=24.5
    RING-O, ID=24.5
  • 92066
    92066-1562 PLUG
    PLUG
  • 92116
    92116-1072 BEARING-ROLLER, 32907JR-2
    BEARING-ROLLER, 32907JR-2
  • 92116A
    92116-1074 BEARING-ROLLER, 32907JR-3
    BEARING-ROLLER, 32907JR-3
  • 92150
    92150-1690 BOLT, SOCKET, 10X30
    BOLT, SOCKET, 10X30
  • 92150A
    92150-1942 BOLT, SOCKET, 10X23
    BOLT, SOCKET, 10X23
  • 92200
    92200-1083 WASHER, CLAW, 25.5X40X2.3
    WASHER, CLAW, 25.5X40X2.3
  • 92200A
    92200-1566 WASHER, 25.5X42X2.3
    WASHER, 25.5X42X2.3
  • 92210
    92210-1166 NUT, CAP, 25MM
    NUT, CAP, 25MM
